WPC Fasica Board Co Extrusion Machine

Yongte WPC Fasica Board Co Extrusion Machine consists of a twin-screw extruder, single-screw co-extruder, a co-extrusion system, a mold, a calibration table, a tractor and a cutting device. The twin-screw extruder has two intermeshing screws, which can provide stronger shear force and mixing effect.

Send Inquiry

Product Description

WPC Fasica Board Co Extrusion Machine

Structural features of WPC Fasica Board Co Extrusion Machine:

It consists of a twin-screw extruder, single-screw co-extruder, a co-extrusion system, a mold, a calibration table, a tractor and a cutting device. The twin-screw extruder has two intermeshing screws, which can provide stronger shear force and mixing effect.

Working principle of WPC Fasica Board Co Extrusion Machine:

The wood-plastic raw materials enter the twin-screw extruder and and co-extrusion materials enter the single-screw co-extruder through different feeding ports. Under the action of the twin screws, the WPC materials are fully mixed, plasticized, and evenly extruded into the co-extrusion mold, and the co-extrusion materials will also be extruded into the co-extrusion mold after melting as the outer layer of the WPC fasica board. After the mold is formed, it is cooled and shaped on the calibration table, and then pulled to the cutting device by the tractor for cutting to obtain the final wood-plastic fence board product.

Advantages of WPC Fasica Board Co Extrusion Machine:

High extrusion efficiency, good mixing and plasticizing effects of materials, and can produce higher quality and more stable performance wood-plastic fence boards. Suitable for large-scale production and occasions with high product quality requirements.


Pictures of WPC Fasica Board Co Extrusion Machine:

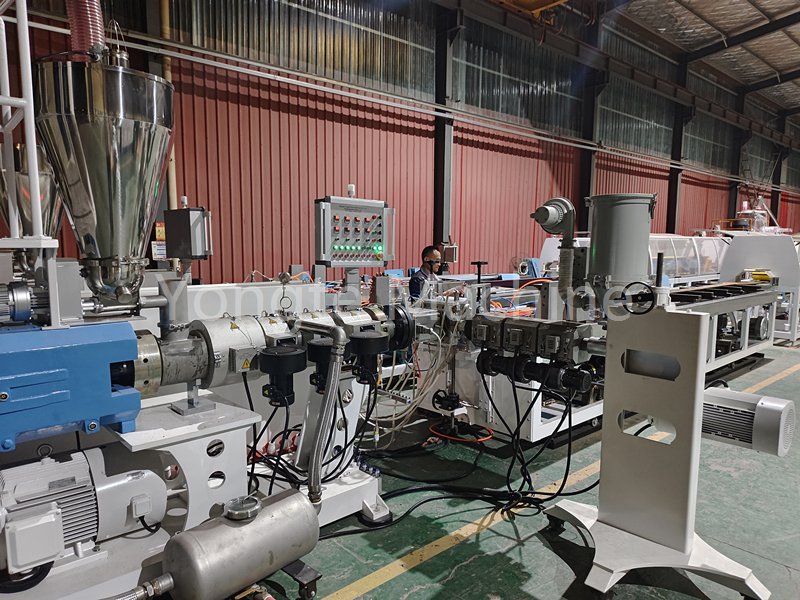

1, Twin-screw WPC extruder and single screw co-extruder

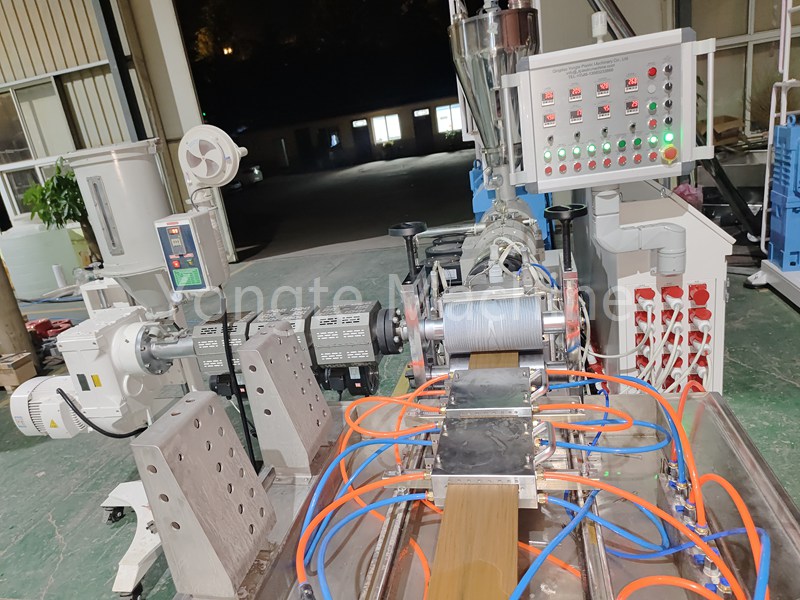

2, Co-extrusion system and WPC fasica extrusion mold

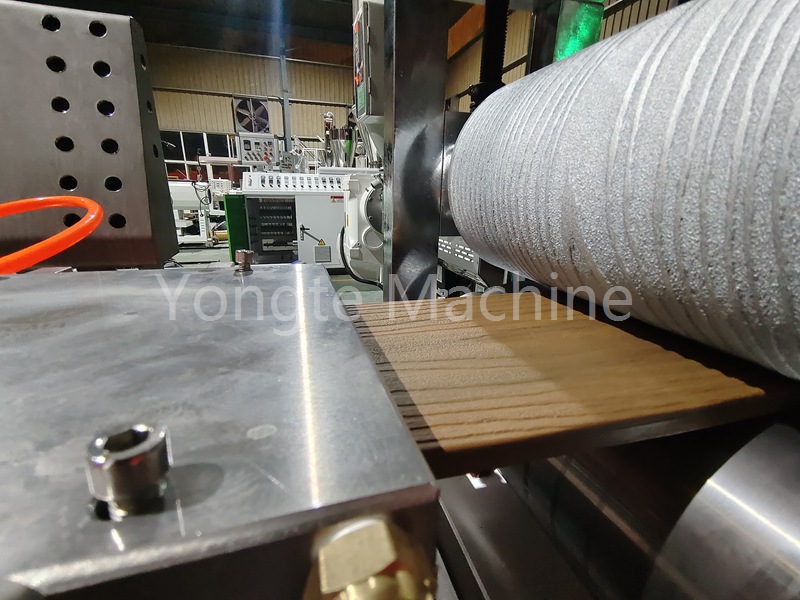

3, online 3D embossing device

4, Calibrators for shaping the WPC fasica board

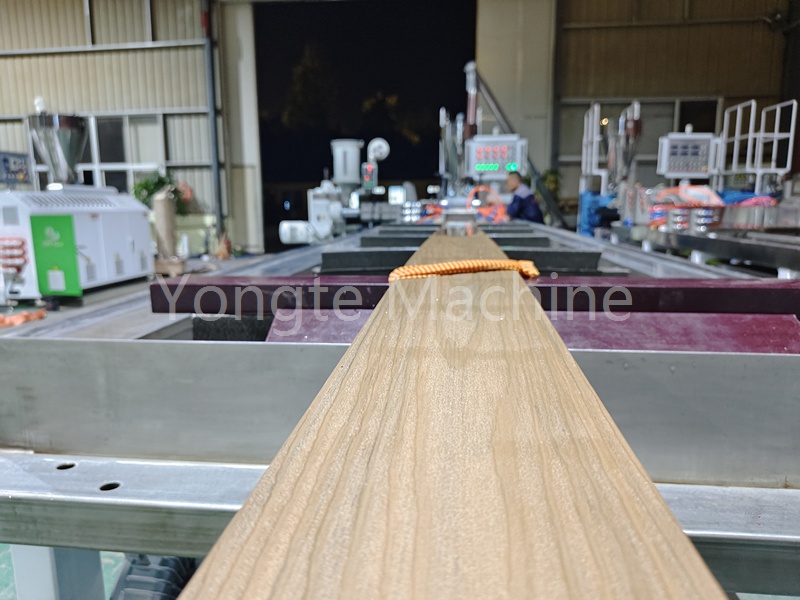

5, calibration table for cooling the WPC fasica board

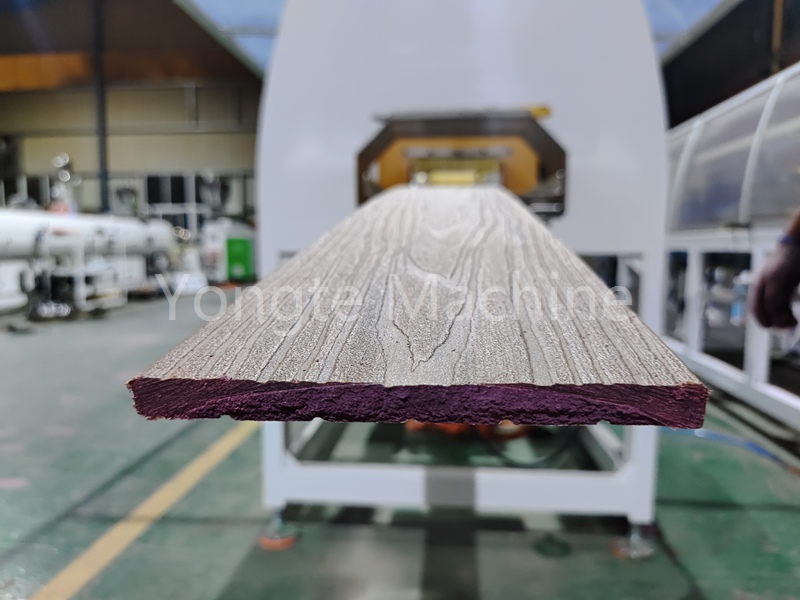

6, WPC fasica board after cooling

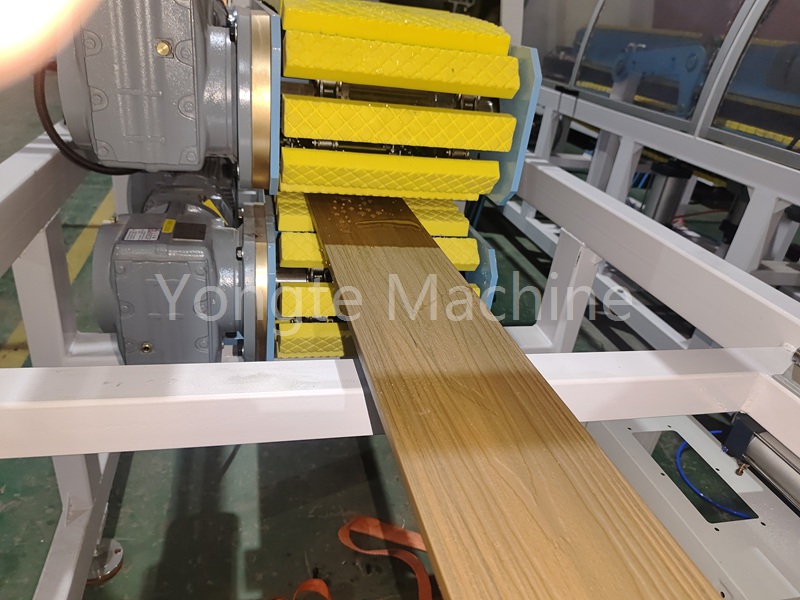

7, Double caterpillar tractor for WPC fasica board

8, Automatic cutting machine for WPC fasica board
