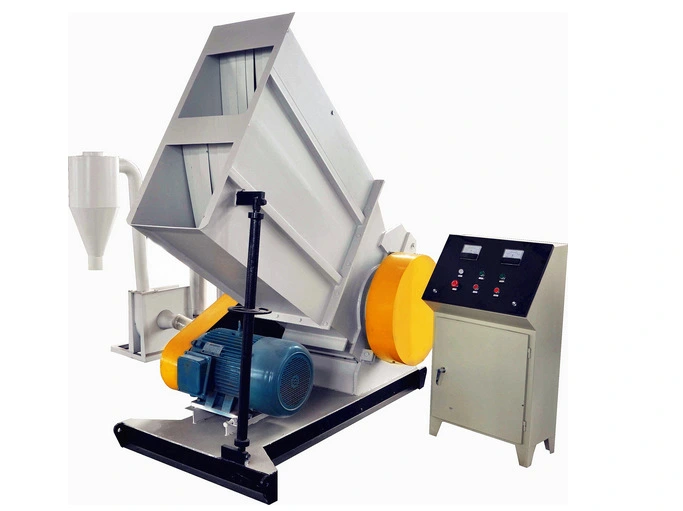

Yongte Plastic pipe crusher machine is specialized equipment designed for crushing and recycling plastic pipes. It features high-efficiency crushing capabilities, allowing for the processing of various sizes and types of plastic pipes into small, uniform particles.
Yongte Plastic pipe crusher machine is specialized equipment designed for crushing and recycling plastic pipes. It features high-efficiency crushing capabilities, allowing for the processing of various sizes and types of plastic pipes into small, uniform particles. These particles can then be reused in the production of new plastic products, contributing to resource conservation and environmental protection.
The machine is powered by the electric motor, through the triangle belt transmission, so that the rotating blade fastened on the knife shaft and the fixed blade fastened on the body form a certain Angle of rotary shear, the fed waste plastic is repeatedly broken, after the sieve plate screening, leakage into the storage hopper, the fan duct is transported to the unloader bag
|
Item |
Technical |
Parameters |
|
1 |
Rotating diameter: |
400mm |
|
2 |
Number of rotating blades: |
5 pieces |
|
3 |
Number of fixed blades |
2 pieces |
|
4 |
hole diameter of sieve plate |
10mm |
|
5 |
Feed bucket caliber: |
375mmX320mm |
|
6 |
main motor speed: |
730rpm |
|
7 |
power of main motor: |
30KW |
|
8 |
Crushing capacity: |
500KG/H |
|
9 |
Transmission fan power: |
3KW |
|
10 |
running piping: |
Diameter 133 (304 stainless steel) |
|
11 |
Stainless steel cyclone barrel: |
Diameter 800 (304 stainless steel) |
