Plastic Crusher Equipment

Yongte Plastic Crusher Equipment with high quality and CE certificated

Plastic Crusher Equipment are core equipment in the plastic recycling and processing industry, primarily used to crush waste plastics, scraps, and other materials into granules for subsequent reuse. The following is a detailed explanation:

1. Working Principle

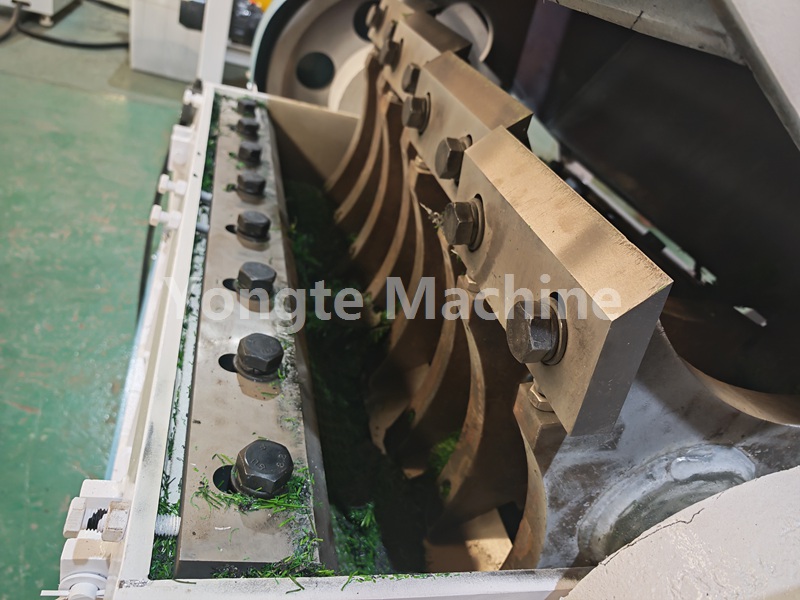

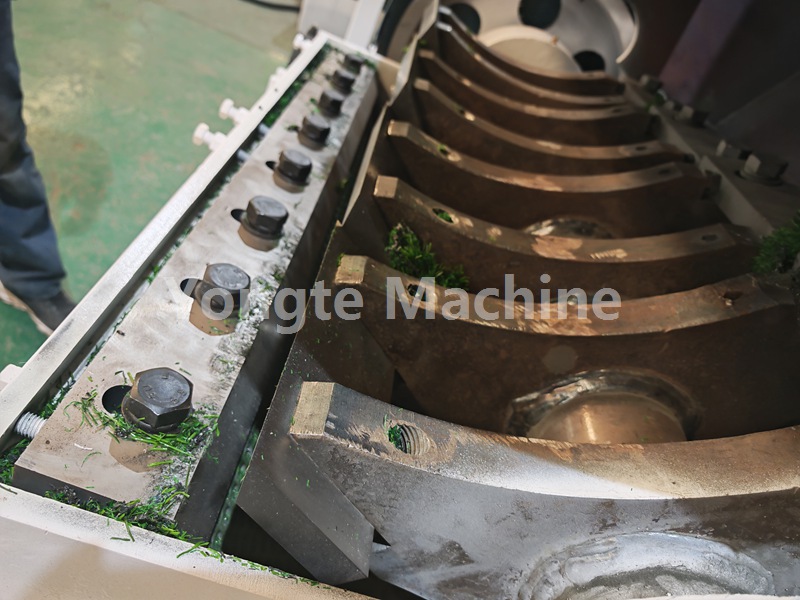

Plastic Crusher Equipment uses an electric motor to drive the rotating blade disc to rotate at high speed. This creates a shearing, tearing, and impacting action with the stationary blades, breaking the material into small pieces. The crushed particles are screened to control particle size. Particles that meet the required size are discharged, while those that do not meet the requirements continue to be crushed in a continuous cycle. For example, when processing rigid PVC pipes, the shear force created by the high-speed rotating blades and the stationary blades quickly cuts the material. When processing soft films, the tearing action of the blade disc prevents entanglement.

2, Technical Features and Advantages

• High Efficiency and Energy Saving: The intelligent variable frequency control system automatically adjusts the speed according to the hardness of the material, reducing energy consumption. For example, when processing thin films, power consumption is automatically reduced by 30%, resulting in energy consumption of only 8 kWh per ton of material.
• Environmentally Friendly Design: Double-layer sound insulation reduces noise to below 75 decibels, and the negative pressure vacuum system achieves a dust collection rate exceeding 95%. Select models are CE-certified and comply with the EU Machinery Directive (2006/42/EC), ensuring mechanical, electrical, and chemical safety.

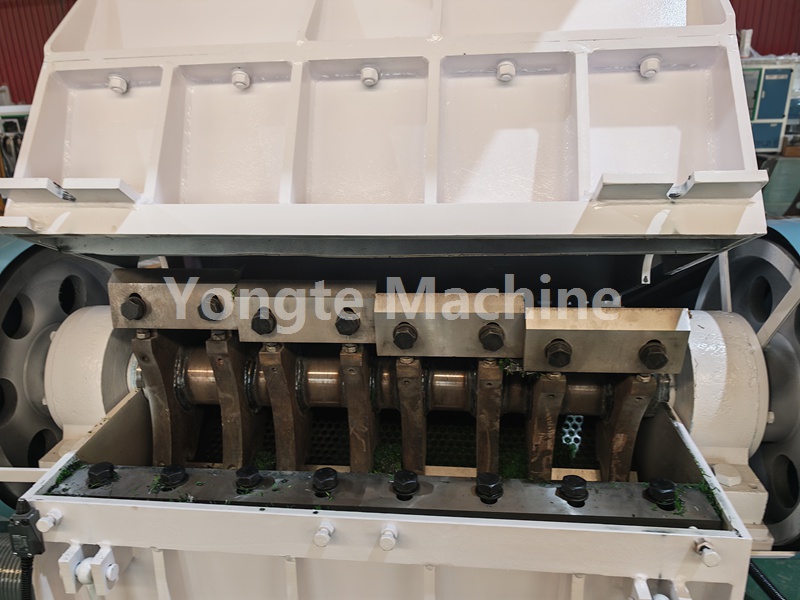

• Easy Maintenance: The blades can be individually removed for sharpening, and the bearing housing features a split, easy-to-disassemble design, reducing maintenance time. For example, the German-imported Dillinger blades have a lifespan of 5 years and only require annual sharpening.
• High Compatibility: It can process a variety of plastics, including PE, PP, PVC, ABS, and PC, as well as rubber and agricultural film. For example, the dual-shaft shredder can crush composite materials containing metal wires, separating impurities through shearing.

3, Technical Parameters
