The PE Powder Grinder Machine uses a main shaft equipped with precision bearings to drive the cutterhead. Driven by the cutterhead, the moving blades rotate at high speed, tangentially contacting the fixed blades, causing the incoming material to collide violently and grind into powder.

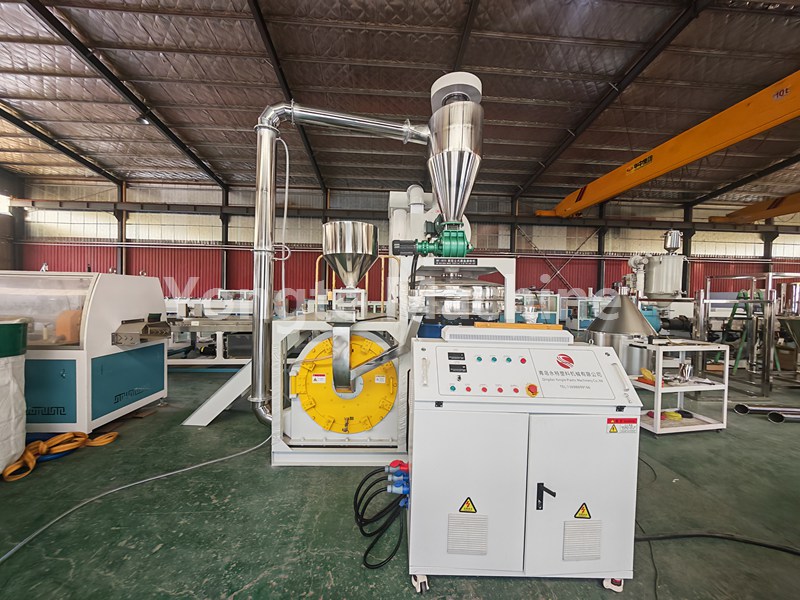

CE certified Yongte PE Powder Grinder Machine with high capacity
PE Powder Grinder Machine is a type of grinding equipment used for processing thermoplastics. It is primarily designed to grind PE (polyethylene) plastic granules or waste into powder. It can also be used to process other plastics such as PVC and PP into powder.
Operating Principle

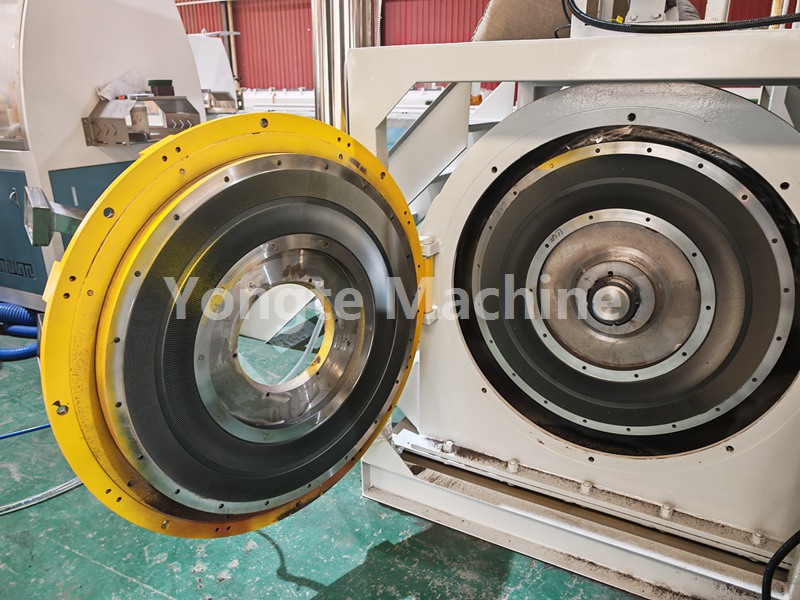

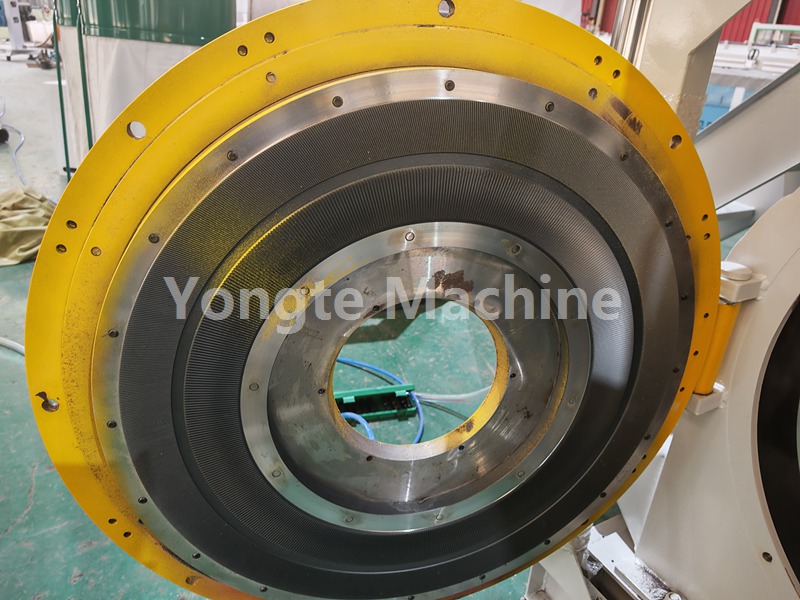

The PE Powder Grinder Machine uses a main shaft equipped with precision bearings to drive the cutterhead. Driven by the cutterhead, the moving blades rotate at high speed, tangentially contacting the fixed blades, causing the incoming material to collide violently and grind into powder. A combination of air and water cooling effectively controls the material grinding temperature, ensuring consistent material quality.
Structure
It primarily consists of a main unit, blower, ultrafineness analyzer, finished product cyclone collector, bag dust collector, and connecting air ducts. Optional auxiliary equipment such as an elevator, storage silo, electrical control cabinet, powder feeder, and crusher can be added to meet customer needs.
Technical Features
High Output, Fine Powder Grinding: A new blade structure improves output, overcoming the low output and coarse powder characteristics of PE grinding. Powder fineness can reach 10-120 mesh and is adjustable.
Energy-saving and Environmentally Friendly: Low energy consumption during operation meets environmental requirements.
Wide Application: Suitable for grinding a variety of plastics, including PVC, PE, PS, PA, PC, etc.
Easy Installation and Maintenance: Cleaning is simple and quick with the door open.
Dust-Free: The entire grinding process is fully sealed, preventing dust leakage and improving the working environment.
Applications: Widely used in plastic refining and recycling, engineering plastics compounding, extruded plastic recycling, composite plastic production, rotomolding powder production and recycling, and tube sheet crushing and recycling. In particular, in the rotomolding industry, the PE pulverizer is used to grind PE raw materials into a powder of suitable fineness to meet the requirements of the rotomolding process.
