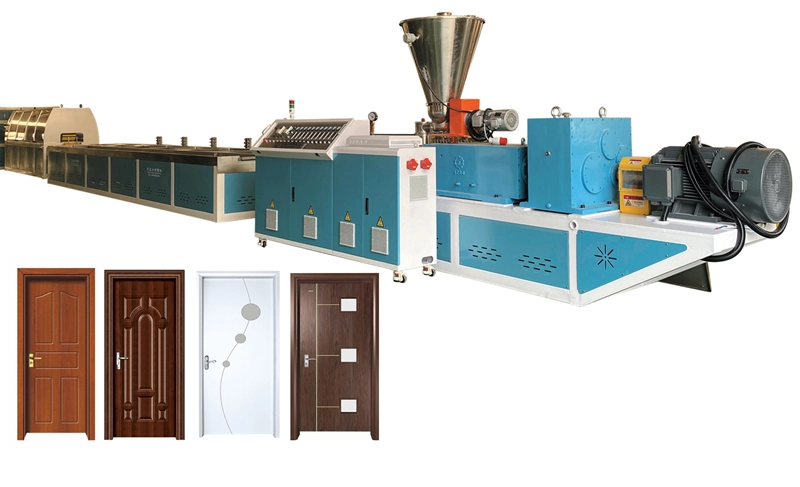

Yongte is a professional WPC door production machine manufacturer, specializing in efficient, high-quality production of WPC (Wood Plastic Composite) doors from PVC plastic and wood powder. WPC doors outperform traditional wooden doors with key advantages: moisture resistance (ideal for humid areas like bathrooms/kitchens), superior durability, easy maintenance (occasional cleaning), eco-friendliness (recyclable, no deforestation), and excellent insulation (regulates home temperature).
Yongte is professional manufacturer for WPC door production machine which is specifically designed for the efficient and high-quality production of WPC (Wood Plastic Composite) doors from PVC plastic and wood powder. WPC doors outperform traditional wooden doors with key advantages: moisture resistance (ideal for humid areas like bathrooms/kitchens), superior durability, easy maintenance (occasional cleaning), eco-friendliness (recyclable, no deforestation), and excellent insulation (regulates home temperature).
We supply high-quality WPC (Wood-Plastic Composite) door manufacturing machines that come with reliable CE certification, ensuring compliance with European safety and environmental standards. Our products are offered at a highly competitive price without compromising on performance or durability. Additionally, we provide comprehensive turnkey project services, including customized solutions, installation guidance, technical support, and staff training, to help clients achieve seamless production from start to finish.
|
Model |
YT800 |
YT1200 |
|
Max panel width |
800mm |
1200mm |
|
Extruder |
SJSZ80/156 conical twin screw extruder |
SJSZ92/188 conical twin screw extruder |
|
Main motor power |
75 KW |
110 KW |
|
Working material |
PVC resin, wood powder and Chemical additives |
|
|
Screw material |
38CrMoAIA with bimetallic |
|
|
Barrel material |
38CrMoAIA with SKD coated |
|
|
Extrusion capacity |
350kg/h |
500kg/h |
|
Machine Length |
28 meter |
30 meter |
|
Inverter |
ABB brand |
|
|
Contractor |
Siemens brand |
|
|
Temperature controller |
Omron brand |
|
|
PLC control system |
Siemens brand or MG brand |
|
|
Servo motor |
Innovance brand |
|
|
Quality certification |
CE certified |
|

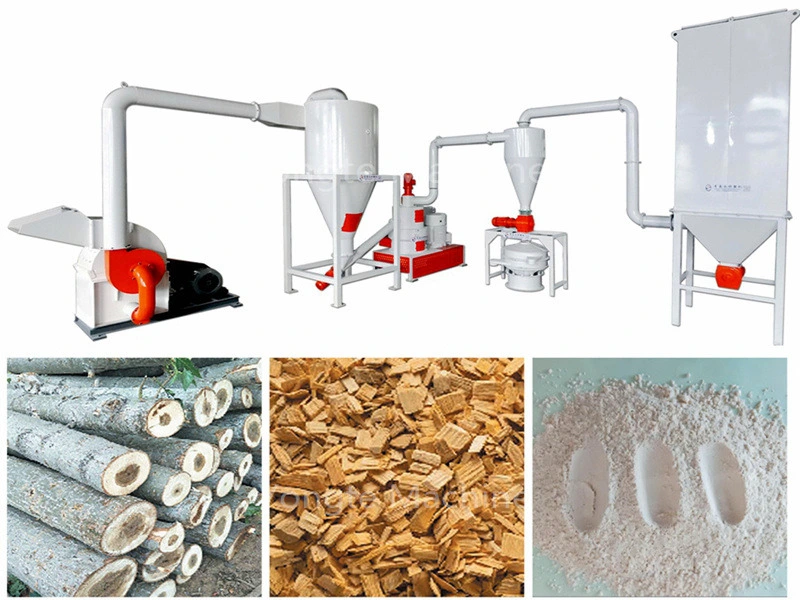

1, Wood powder making machine: it is used for making wood powder from wood sawdust

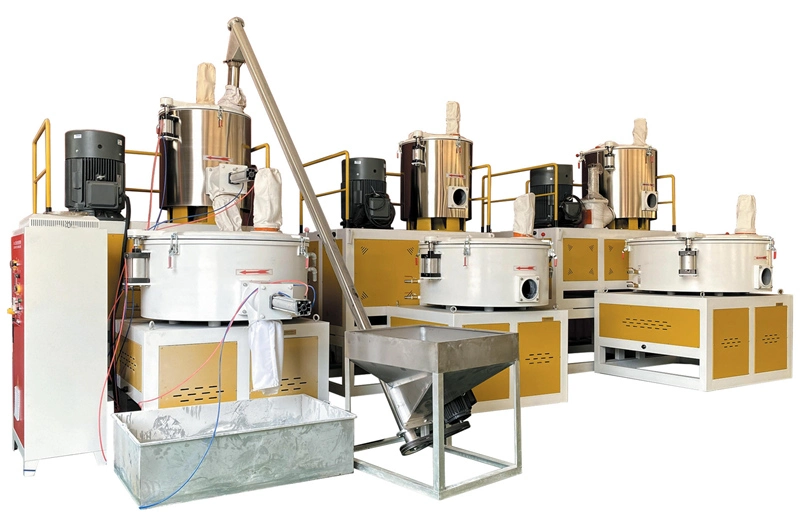

2, Mixing machine: This unit comprises a hot mixer and a cold mixer, and it is used for mixing PVC resin, wood powder, and chemical additives according to the experienced formulation for WPC door panels and door frames.

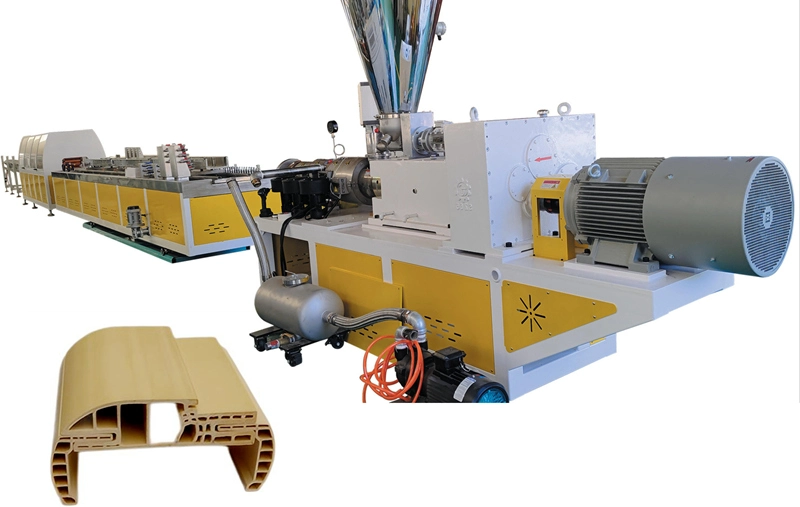

3, WPC Door Frame Extrusion Line: This line is used for producing door frame profiles from a compound material of PVC resin and wood powder. The machine can create various WPC door frame profiles by changing the mold.

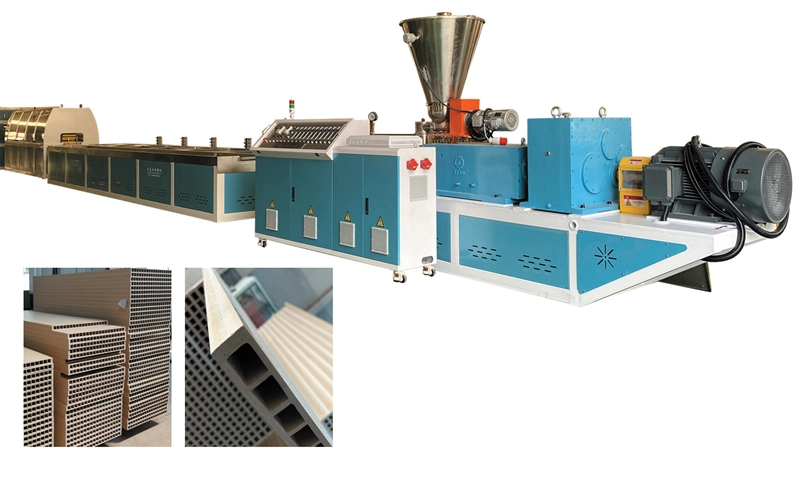

4, WPC Door Frame Extrusion Line: This line is used for producing door frame profiles from a compound material of PVC resin and wood powder. The machine can create various WPC door frame profiles by changing the mold.

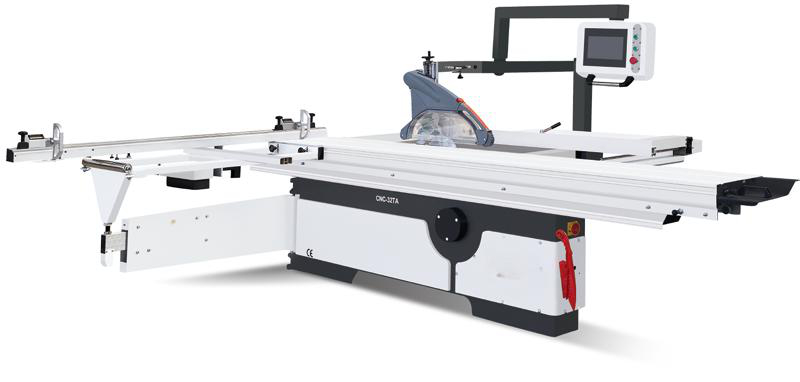

5, Precision Cutter: This machine is designed for cutting sizes and angles on WPC door panels or WPC door frame profiles. The cutting angles are adjustable, ranging from 45 degrees to 90 degrees.

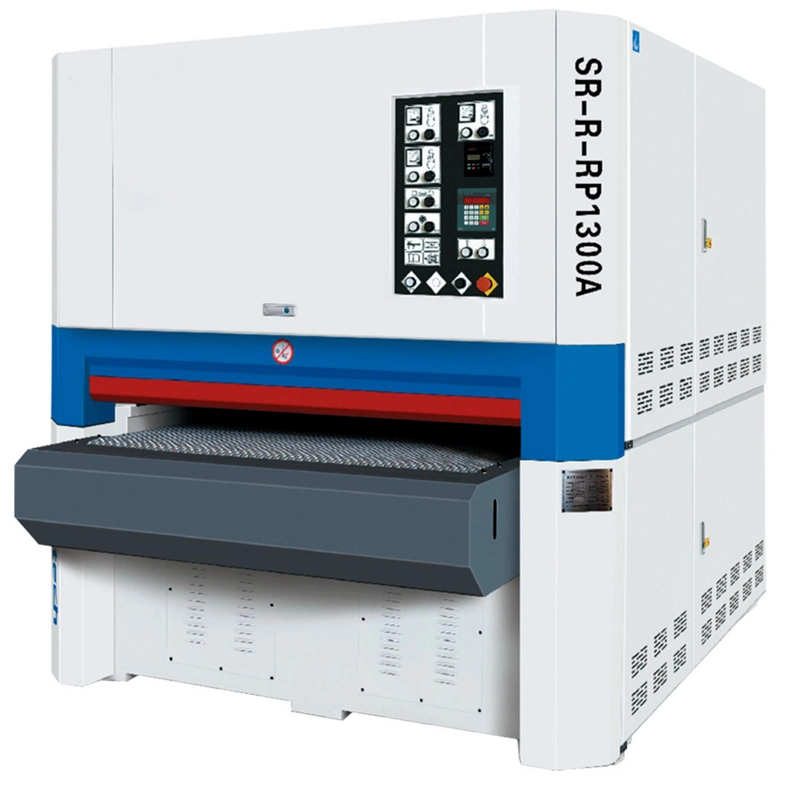

6, WPC Door Sanding Machine: After precision sanding, the surface of WPC door panels achieves a smooth, uniform finish. This optimized surface enhances adhesive bonding strength and creates an ideal substrate for subsequent painting, laminating, or veneering processes, ensuring superior final product quality.

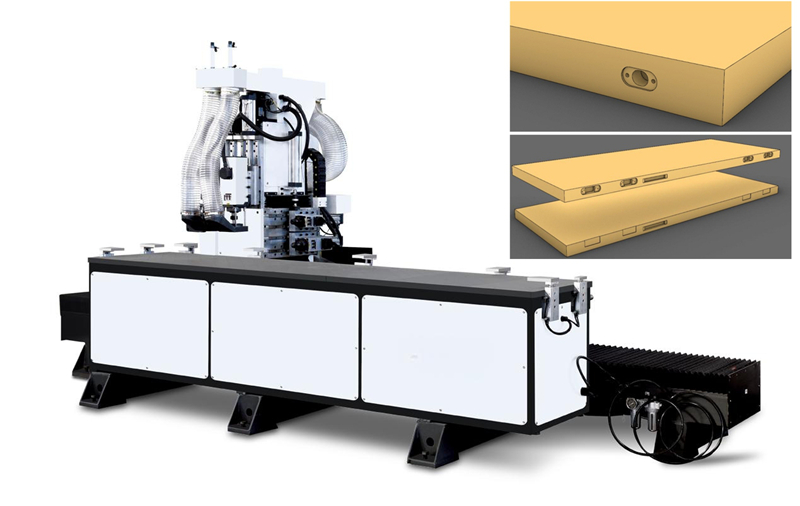

7, WPC Door Auto Lock Holes Drilling Machine: This machine is designed for drilling holes on WPC door panels to install locks and hinges. It is an automatic drilling machine that includes all necessary functions.

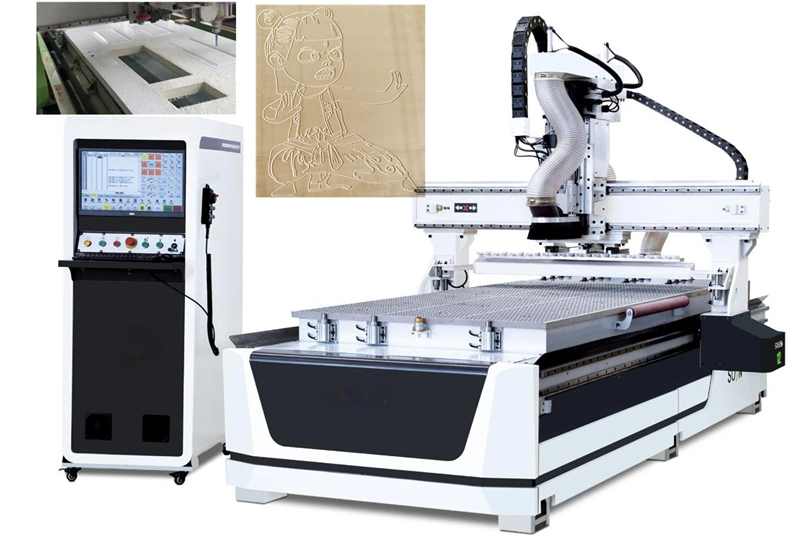

8, CNC Engraving Machine: This machine is used to carve designs onto WPC door panels using a CNC router. It can also cut frames on the door panel for glass installation.
The CNC Engraving Machine features high precision and stability, ensuring that the carved designs are clear and accurate, meeting various customized requirements. Its automated operation mode greatly improves production efficiency and reduces labor costs. Additionally, the machine is equipped with a user-friendly interface, making it easy for operators to set parameters and monitor the production process.

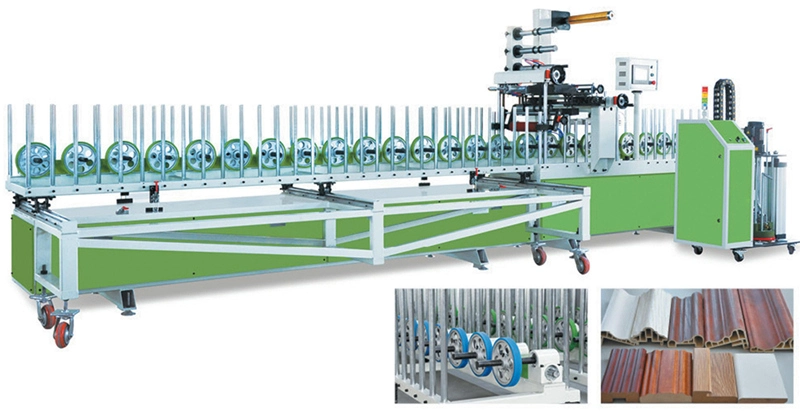

9, WPC Door Frame Lamination Machine: This machine is designed for surface lamination of WPC door profiles. The lamination materials can include PVC film, paper, wood veneer, CPL, and leather. The machine utilizes PUR hot melt adhesive.

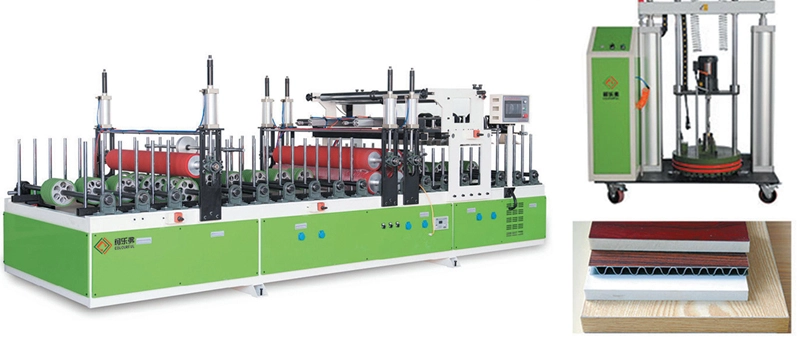

10, WPC Door Panel PUR Lamination Machine: This machine is designed for surface lamination of WPC door panels, ensuring a smooth and flat finish. The lamination materials can include PVC film, paper, wood veneer, CPL, and leather. The machine utilizes PUR hot melt adhesive.

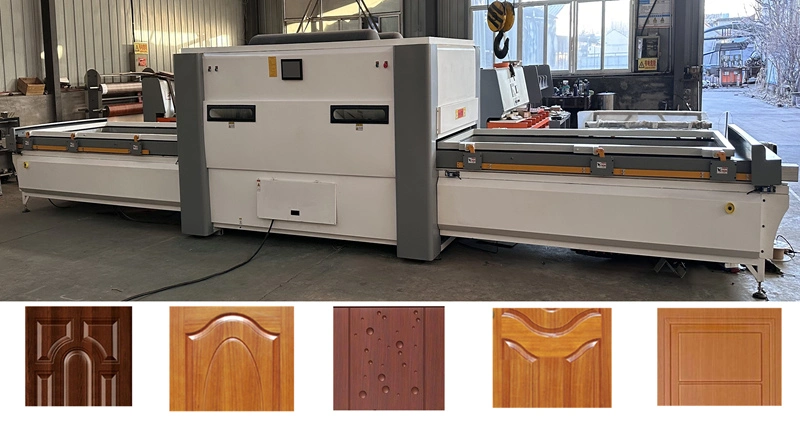

11, WPC door Vacuum laminator machine: This machine is used for laminating PVC decoration film onto WPC door panels with a modeled surface after CNC engraving. It utilizes cold glue.The machine is equipped with a vacuum system that ensures tight and uniform adhesion of the film, eliminating air bubbles and wrinkles.

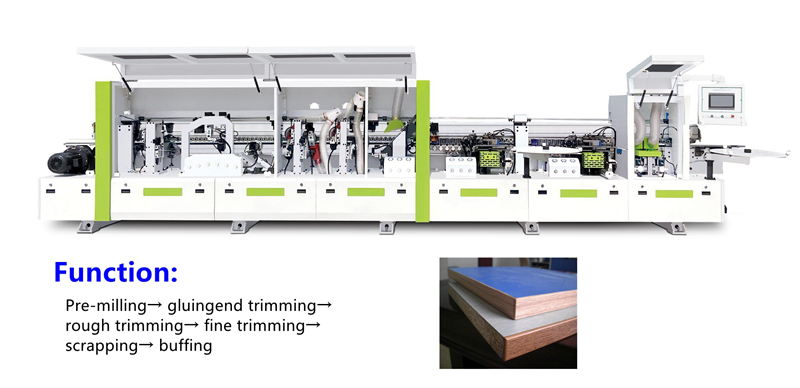

12, WPC Door Edge banding cover machine: This machine is used to cover the four edges of a door panel, concealing the hollow sections and sides. We offer machines that utilize EVA glue and PUR glue for edge banding.
