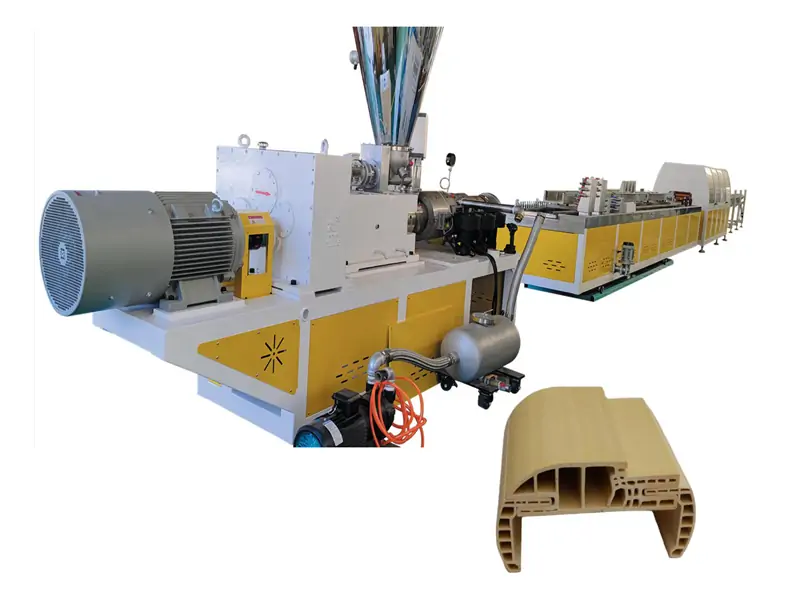

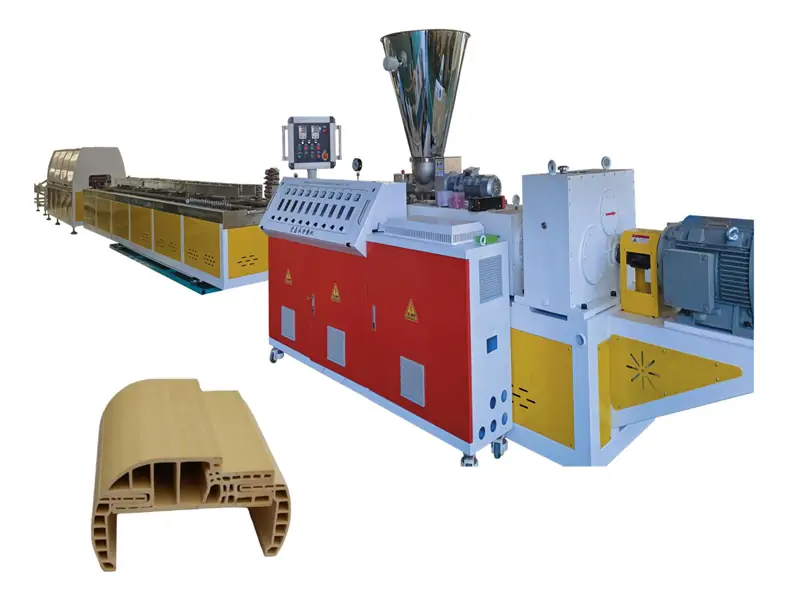

Yongte high speed WPC door profile extrusion machine can achieve high speed production for making wpc door profiles, the speed can be 2-3 meter per minute, and the wpc door profile extrusion line is designed with high automotic

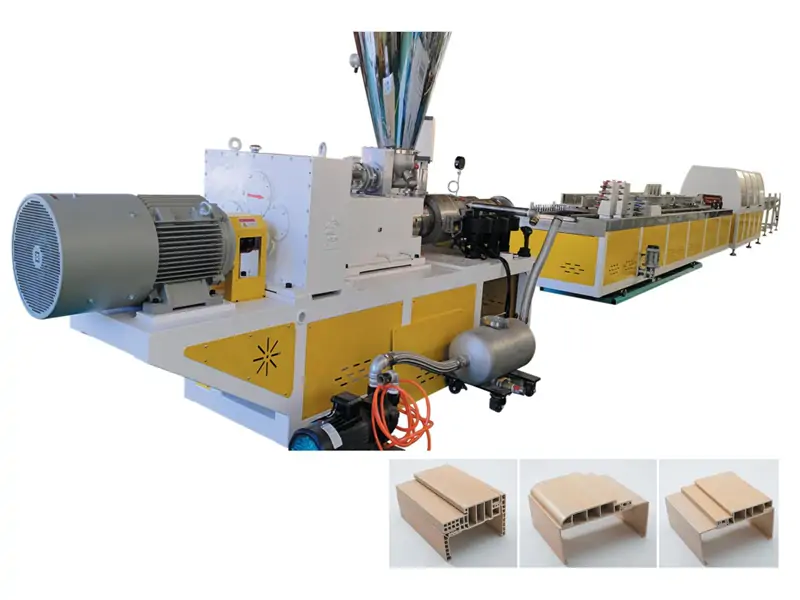

Yongte high-speed WPC door profile extrusion machine line has many advantages such as high efficiency, high quality, energy saving and environmental protection, easy operation, flexible adaptability, low maintenance cost, safety and reliability, continuous innovation and professional services. the complete WPC door profile extrusion machine including auto feeder, conical twin screw extruder, die and mould, calibration and cooling table, pull off and cutting machine, product stacker. the production line can be used for making different WPC profiles by changing mold, such as WPC door frame, WPC door jamb, WPC wall panel, ceiling panel, skirt panel, decoration profiles..
Model YT200 YT300 Max Panel Width 200mm 300mm Extruder SJSZ51/105 conical twin-screw extruder SJSZ65/132 conical twin-screw extruder Main Motor Power 22 kW 37 kW Output Products Small PVC door profiles, PVC door lines PVC door frames, PVC door jambs Raw Materials PVC resin, CaCO₃, wood powder, and chemical additives Screw Material 38CrMoAl with bimetallic coating Barrel Material 38CrMoAl with SKD coating Extrusion Capacity 150 kg/h 200 kg/h Machine Length 22 meters 25 meters Inverter Brand ABB ABB Contactor Brand Siemens Siemens Temperature Controller Brand Omron Omron Calibration Table Length 6 meters 8 meters Pull-off Tractor Width 1800 mm 2400 mm Product Stacker Length 6000 mm 6000 mm Quality Certification CE Certified CE Certified

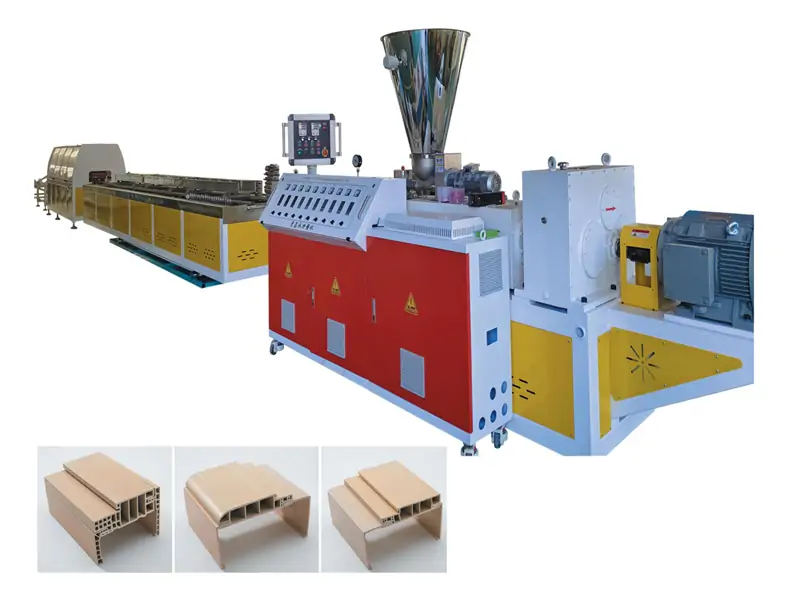

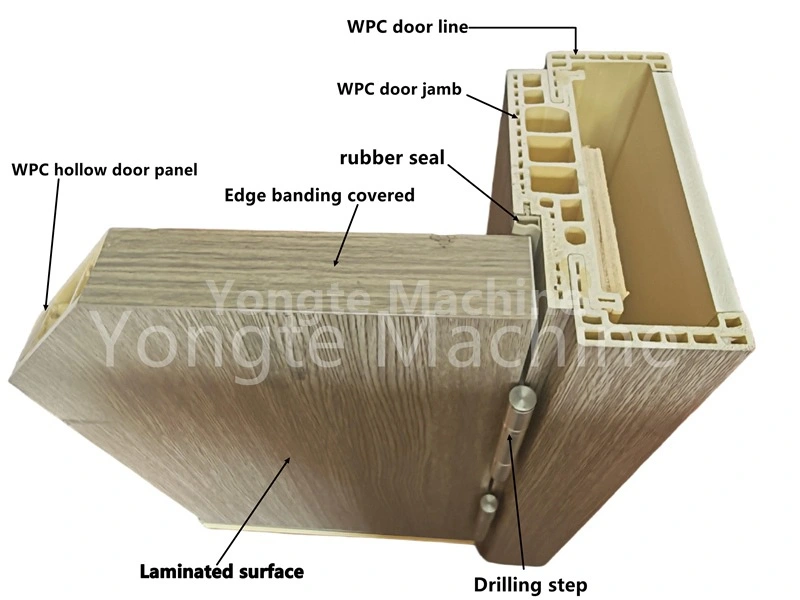

By changing mold, the Yongte high speed WPC door profile extrusion machine can make different WPC door profiles with different sizes and shapes, Yongte can help the customer to design the door frame system as per their market demands.

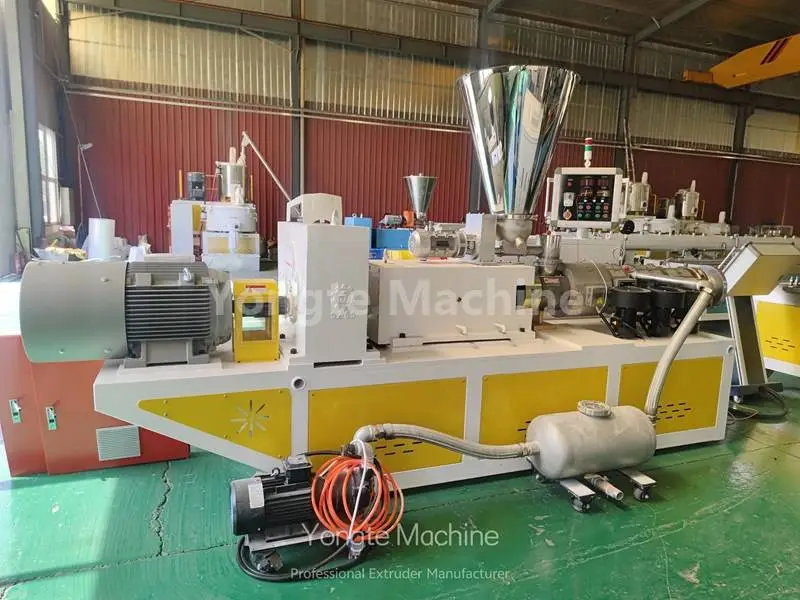

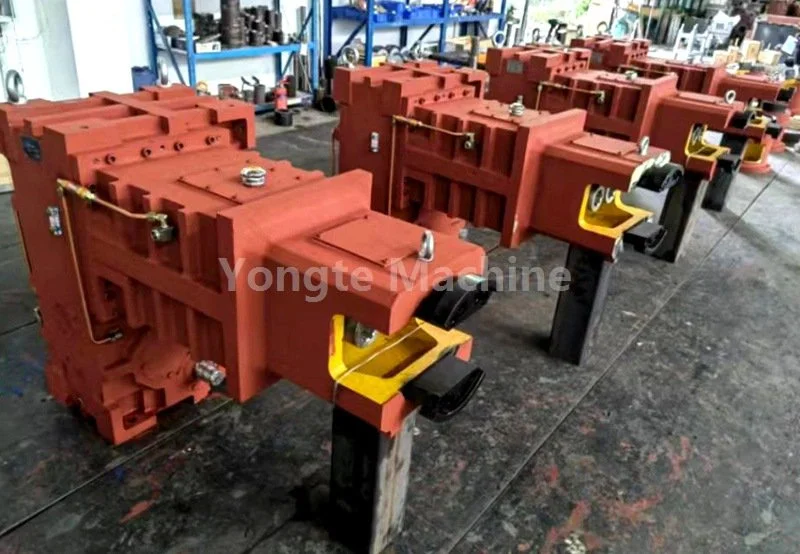

The WPC door profile high speed extruder adopts high effective conical double screw extrusion system, it equip with auto feeder, high effective driving system, high speed and high wearing screw, infrated heating system. the main motor power is 45KW equip with ABB inverter control.

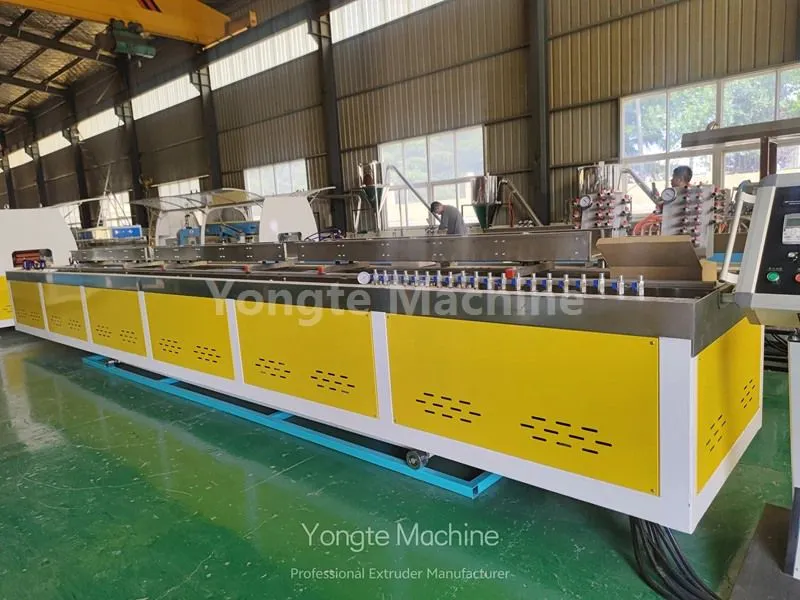

High speed cooling and calibration machine: made of stainless steel, including stainless steel frame and sound insulation film with noise reduction. The proprietary stainless steel frame as the water circulation system keeps the internal pipe system, and the unique design structure and reasonable layout can prevent the shaking during the production process and ensure the quality of the product
1, length of table: 11.8meter
2, cooling method: water and vacuum
3, vacuum pump: 7 sets, body made by 304 stainless steel
4, water pump: 1 set, all connected elbows are made by stainless steel

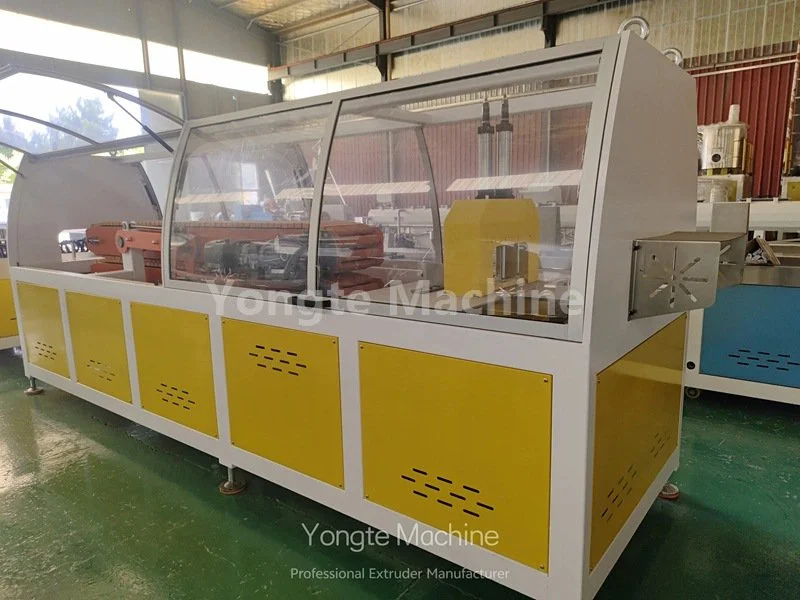

Tractor and cutter machine
It consists of two mechanical units assembled on the same robust frame and has an optional film covering device. The lower traction track is a fixed structure, and the upper traction track is mounted on a high-precision guide plate, and the appropriate pressure can be adjusted. The transmission system of the upper and lower tracks is equipped with two maintenance-free AC frequency conversion motors, which are directly connected with the reducer. Special and quickly replaceable crawler press block. Cutting saw is equipped with maintenance-free horizontal moving cutting device, profile cutting saw synchronized with traction speed, using one-way bearing and chain control, saw blade using pneumatic control; cutting length is controlled by high-precision encoder, and equipped with a high-power chip suction device

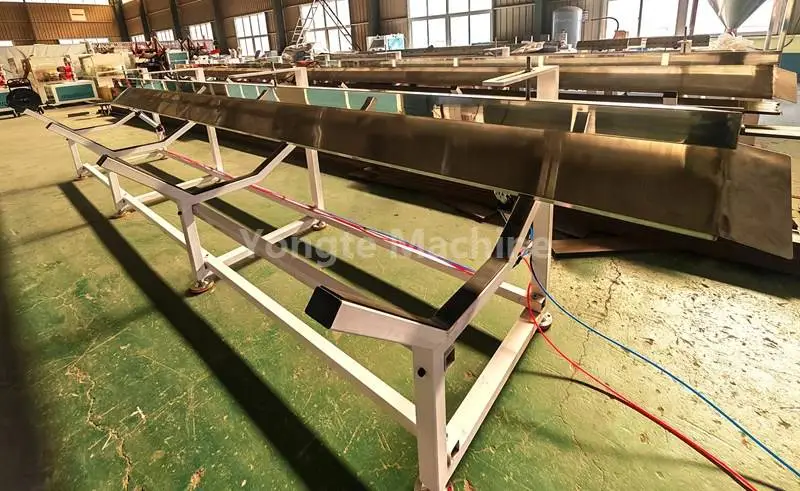

The product stacker 6000mm long; consists of a square tube frame and stainless steel flip table with signal from the cutting length counter. The flip table can be adjusted to the height of the extrusion centerline.

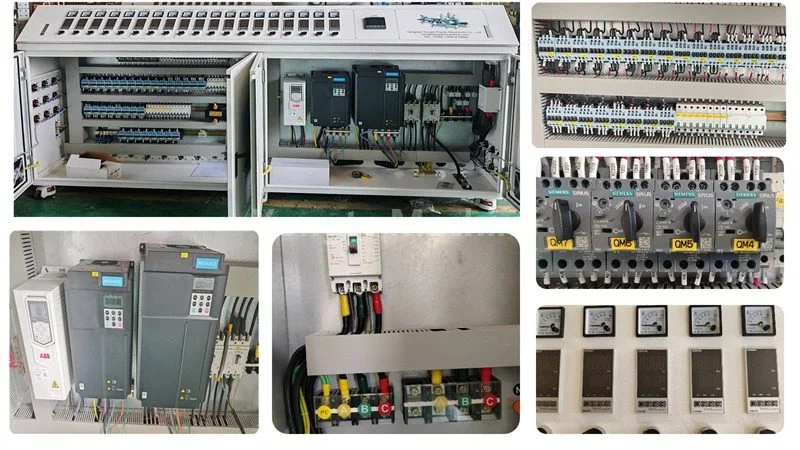

1. Language: English or customized
2. The main electrical control components are Siemens or Schneider products.
3. The main motor is Siemens Beide motor, 45KW, with ABB inverter control
4. The feeder speed regulating device is ABB frequency converter.
5. Omron intelligent temperature control instrument

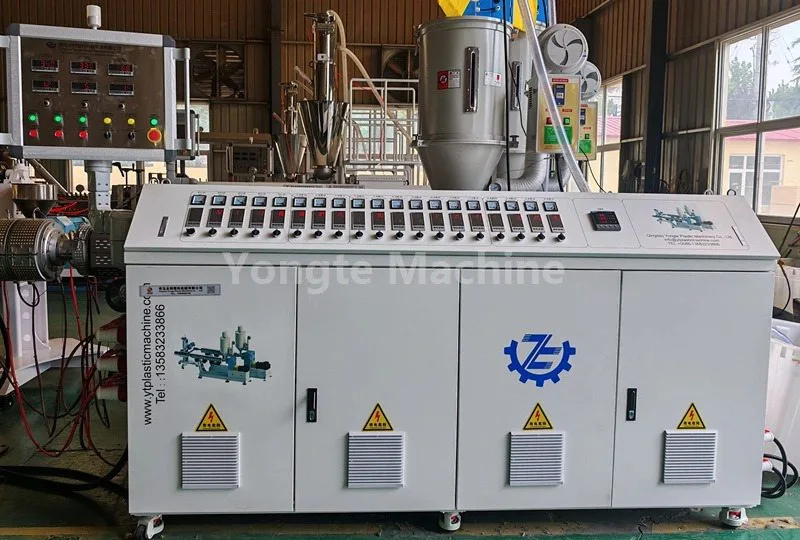

6. Electrical control cabinet control includes: temperature control system; drive system, pull off system, cooling system.
7. Heating is controlled by a temperature controller, solid-state contactor, and high-temperature resistant wires.
1. High-efficiency production: Yongte wood-plastic door profile high-speed extrusion line adopts advanced production processes and technologies, which greatly improves production efficiency. For companies pursuing production capacity and efficiency, this is undoubtedly the biggest selling point.
2. Quality assurance: Products undergo strict quality control and multiple inspections to ensure that the quality of the wood-plastic profiles produced is stable and reliable.
3. Energy saving and environmental protection: Yongte WPC door profile high speed machine was designed with environmental protection factors in mind, effectively reducing energy consumption and pollution during the production process, and helping companies achieve green production.
4. Easy to operate: Yongte high speed WPC door profile extrusion machine is simple to operate and does not require complicated training. Employees can get started quickly, which reduces the company's training costs and time costs.
5. Flexible adaptation: The high-speed extrusion line can adapt to the production of wood-plastic profiles of different specifications, providing enterprises with more production options.
6. Low maintenance costs: Yongte WPC door profile high speed equipment structure is reasonably designed and worn parts are easy to replace, reducing the company's maintenance costs.
7. Safe and reliable: Yongte high speed WPC door profile equipment is equipped with complete safety protection measures to ensure employee safety and equipment stability during the production process.
8. Continuous innovation: We continue to carry out technological research and development and innovation to ensure that the wood-plastic profile high-speed extrusion line is always at the forefront of the industry.
9. Professional services: We provide professional pre-sales consultation, in-sales service and after-sales support to ensure that customers receive timely help and solutions during use.
