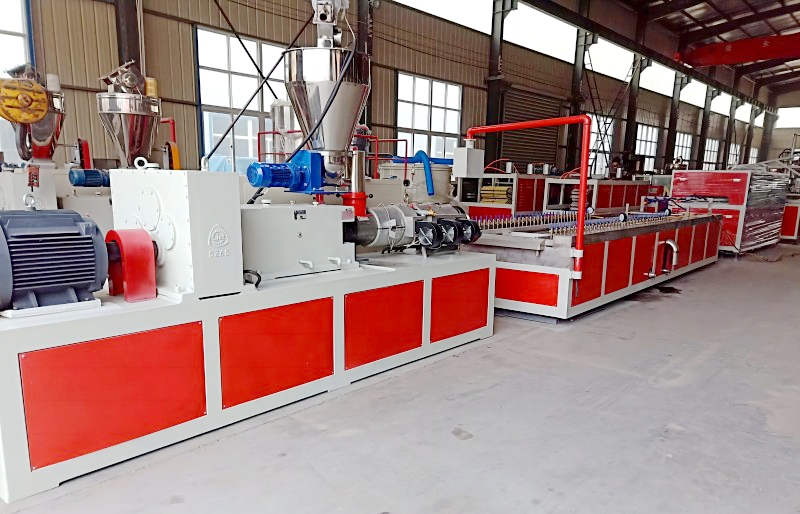

Yongte PVC WPC wall panel making machine equip with high effective extrusion machine, high speed cooling and calibration equipment, strong force traction device, automatic cutting machine and stacker.
Yongte is professional manufacturer in China for PVC WPC wall panel making machine with CE certificate, we supply excellent quality machine and factory price, and we supply good customer service with 5 years after sell service. Yongte is good supplier to buy WPC wall panel production machine.
WPVC Wall Panel Extrusion Line is used for making indoor decorative wall panels and ceiling panels. PVC WPC wall panel making machine is a kind of mechanical equipment specially used to produce wood plastic wall panels. Wood-plastic wall panel is a new type of environmentally friendly building material. It is made of wood fiber, plastic and a small amount of additives through mixing, extrusion, molding and other processes. It has the advantages of environmental protection, beauty and durability, and is widely used in the construction and decoration industry.
PVC WPC wall panel making machine model and specification:
|
Model |
YT-200 |
YT-300 |
YT-600 |
|

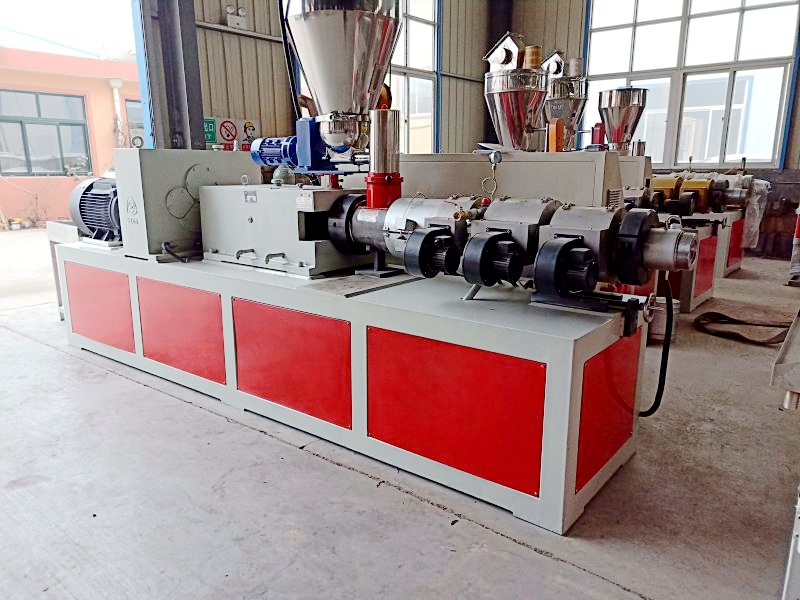

Main extruder |
SJSZ51/105 |
SJSZ65/132 |
SJSZ80/156 |
|
Main motor |
22kw |
37KW |
75KW |
|
Max.product width |
200mm |
300mm |
600mm |
|
Extrusion capacity |
120-150 kg/h |
200-250 kg/h |
300-400 kg/h |
1. Raw material mixing system: Responsible for uniformly mixing wood fiber, plastic and other raw materials to ensure stable product quality.
2. Extrusion molding system: The mixed raw materials are extruded into the required wall panel shape through high temperature and high pressure.
3. Cooling and calibration system: Cool and shape the extruded wall panels to ensure the dimensional accuracy and stability of the product.
4. Traction and cutting system: traction machine is used for pull off the product, and it equip together with the cutting machine for cut the wall panels automatically according to required length
5. Product stacking system: automatic stacking device for WPC wall panel. length is 6 meter.
6. WPC wall panel lamination machine: the lamination machine can put a decoration film on the WPC wall panel.

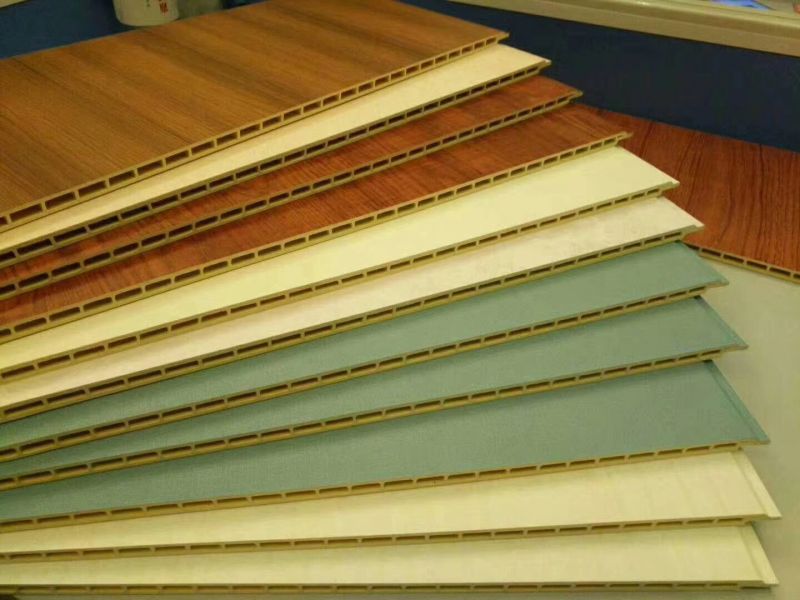

The WPVC wall panel has the advantages of Waterproof and moisture-proof, Insect-proof and termite-proof, various colors and customizable, personalized shape, Environmentally friendly and recyclable, Good fire resistance, Strong processability, simple to install. Wood-plastic wall panel equipment is widely used in the construction and decoration industry, such as interior and exterior wall decoration in residential buildings, commercial buildings, public facilities and other places. Due to its beautiful appearance, durability, environmental protection and other characteristics, it is increasingly favored by the market.
1. High efficiency and energy saving: Yongte WPC wall panel making machine adopts advanced production processes and technologies, which improves production efficiency and reduces energy consumption.
2. Environmentally friendly and low-carbon: As an environmentally friendly building material, wood-plastic wall panels do not need to cut down a large number of trees during the production process, reducing the damage to natural resources.
3. Product diversification: Wood-plastic WPC wall panel equipment can produce wall panels of different colors, textures and specifications according to market demand to meet the personalized needs of different customers.
