turnkey WPC plant
Yongte provides complete one-stop turnkey WPC plant solutions covering the full industrial chain from raw material processing to finished products, enabling investors to build automatic, stable and eco-friendly WPC production bases without fragmented equipment sourcing. We offer full-cycle support including factory planning, formula guidance, installation, training and after-sales supply.
Model:SJSZ65/132
Send Inquiry
Product Description
Turnkey WPC Plant – Full Wood Plastic Composite Factory Solution
Yongte, a professional Chinese WPC machinery manufacturer, delivers a complete turnkey WPC plant solution covering the full industrial chain: from waste plastic & agricultural biomass raw material processing, compound granulation, profile extrusion, surface finishing to finished WPC decking, wall cladding, fencing and outdoor landscape products.This one-stop factory package enables investors to build a fully automatic, stable and eco-friendly WPC production base with zero fragmented equipment sourcing. We provide full-cycle support including factory layout planning, raw material formula guidance, equipment installation, operator training and long-term after-sales spare parts supply. Our core extrusion model SJSZ65/132 delivers 15–20% higher output than standard WPC lines, suitable for medium & large-scale mass production of outdoor wood-plastic composite materials.
Core Value of Our Turnkey WPC Plant
-
Circular Eco Production System
Maximize waste recycling: recycle PP/PE plastic film, bottles and wood waste (sawdust, wood chips, rice husk, crop straw) as core raw materials, with wood powder proportion adjustable to 60–70%. Turns solid waste into high-value outdoor building materials to realize circular economy.
-
Fully Automated Precise Control
Every production link adopts PLC intelligent temperature, pressure and traction control, reducing manual labor and ensuring consistent product density, smooth surface and stable dimension without warping or bubbling.
-
Multi-Product Flexible Production
Switch between WPC decking, wall panels, fence posts, pergola profiles and outdoor furniture components simply by replacing molds, expanding product portfolio and market profit space.
-
Low Maintenance & Long Service Life
Finished WPC products own waterproof, anti-termite, anti-corrosion, UV-resistant performance, no cracking/deformation outdoors and minimal daily maintenance compared with natural timber.
-
Full Turnkey Service Support
We take charge of whole project implementation: factory layout design, formula matching, equipment delivery, overseas installation commissioning, worker operation training, 24/7 technical after-sales service and spare parts supply

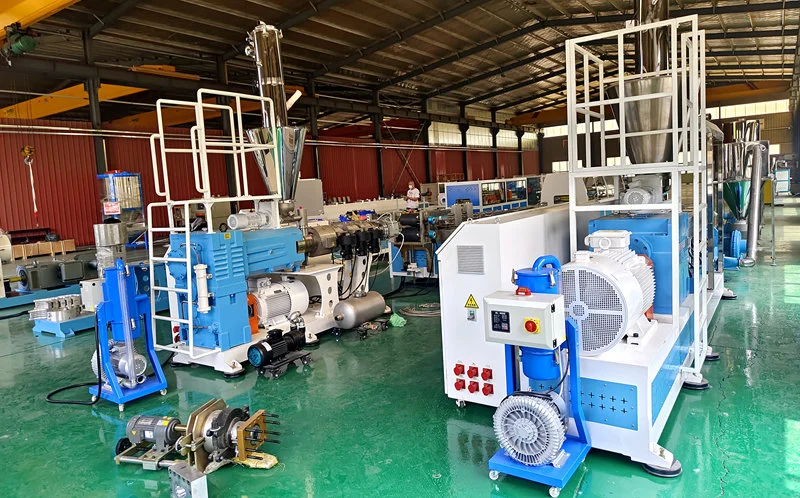

Complete Equipment List of Turnkey WPC Plant
The full factory system consists of 7 core processing sections with matched auxiliary machinery, all included in our turnkey package:
| Equipment name | Unit. capacity | Application |
| Plastic recycling machine | 300 kg/hour | it is used for recycling the plastic wastage into plastic flakes which can be used for making WPC products, the plastic can be PP or PE film/bottles/caps/cans, it includes the crushing, washing and drying process. |
| Wood powder making machine | 400 kg/hour | it is used for making wood material into 80-100 mesh wood powder, the wood material can be big wood,wood chips, wood sawdust,rice husk, rice straw, cotton straw, wheat straw, it includes the wood chipping, wood crushing, wood grinding and wood drying process |
| WPC mixing machine | 600 kg/hour | it is used for mixing plastic, wood and chemical additives according to the formulation, the wood content can be 60-70%. |
| WPC granulation machine | 500 kg/hour | it is used for the first time extrusion and composition the wood and plastic, with this WPC granulation process, it can ensure the wood and plastic material composited well and the final product strength will be good. |
|
WPC profile co extrusion machine |
150 kg/hour | it is used for the second time extrusion and composition the wood and plastic, it equip with the extrusion, molding and cooling system to make the WPC products into required size and shape, the customer can make different WPC products in this machine by changing the mold |
| online embossing machine |
|
it is used for making wooden pattern on the WPC products |
| WPC profile molds |
|
it will decide the size and shape of the WPC products |
| Sanding and brushing machine |
|
it is used for making rough surface on the WPC products |
Full Production Flow of Turnkey WPC Factory
Step 1: Waste Plastic Recycling
All kinds of waste PP/PE plastic (plastic film, bottles, packaging scraps, production offcuts) are sent into the recycling system for crushing, impurity washing, drying and pelletizing, forming clean plastic raw material granules ready for mixing.
Step 2: Biomass Wood Powder Preparation
Raw wood waste, bamboo scraps, rice husk, wheat straw and cotton stalk are processed through chipping, coarse crushing, fine grinding and drying to get standardized 80–100 mesh dry wood powder, stable particle size for consistent composite performance.
Step 3: Automatic Raw Material Mixing
Quantitatively feed plastic pellets, wood powder and chemical additives according to customer-customized formulas into hot-cold mixing unit, full automatic stirring to eliminate material segregation and guarantee uniform composition.
Step 4: WPC Compounding Granulation
Mixed materials go through twin-screw granulation extruder for full plasticization and fiber-plastic fusion. WPC master pellets from this step avoid poor mixing, bubbling and low strength issues in subsequent profile extrusion.
Step 5: WPC Profile Co-Extrusion Molding
WPC pellets are fed into the main conical twin-screw extrusion line. Under precise segmented temperature control, material melts and flows through custom molds, then passes vacuum calibration cooling, traction and fixed-length cutting to form semi-finished hollow/solid WPC profiles.
By changing mold, the WPC profile extrusion line can make different WPC profiles, such as WPC decking, WPC wall cladding, WPC fence panel, WPC column, WPC panel profiles etc.
Step 6: Surface Texture Treatment
Equip online embossing machine directly after the mold to press 3D wood grain on hot profiles; or send semi-finished boards to offline embossing/sanding brushing machines to realize matte, rough, deep wood texture surface effects as market demands.
Step 7: Inspection, Stacking & Finished Product Storage
Finished WPC boards are sorted, stacked and packaged for outdoor landscape, construction and decoration projects.
All of these machines and processes contribute to creating textures that resemble genuine wood, or so it is said. This, in turn, enhances aesthetics—this word is often used, isn’t it?—and also outdoor durability, which is quite necessary, especially for outdoor products. So, there you have it, a series of machines and processes, each with its own role, all working together in a somewhat chaotic manner to produce something that might resemble decking boards.
Application Fields of WPC Products Made by Our Turnkey Plant
The WPC profiles produced by our full factory solution are widely used in residential, commercial and municipal outdoor projects:
- Outdoor flooring: garden decking, swimming pool surrounds, balcony & terrace planks, public park walkways
- Landscape structures: pergolas, gazebos, stair treads, bridge decking
- Fencing & railing: garden fences, balustrades, boundary guardrails, flower bed enclosures
- Building decoration: exterior wall cladding, outdoor decorative panels, garden furniture components
Advantages of Yongte Turnkey WPC Plant
1. Raw Material Compatibility & Eco-Friendly
Accept multiple waste resources: recycled PP/PE plastic, wood scraps, bamboo powder, rice husk and all kinds of crop straw. Turn waste into green building materials, meet carbon neutrality and environmental protection policies worldwide. Wood powder filling ratio adjustable from 60% to 70% for authentic wood texture.
2. High Production Efficiency & Stable Output
Optimized twin-screw structure and digital temperature control system lift production capacity by 15–20% vs ordinary WPC lines; continuous 24-hour stable operation, uniform profile density without defects.
3. Multi-Function Flexible Production
Quick mold replacement enables switching production between decking, wall panels, fence posts, pergola beams and furniture profiles, one factory line covering multiple product categories to expand market sales channels.
4. Superior Finished Product Performance
WPC outputs feature waterproof, moisture-proof, anti-termite, anti-corrosion, UV anti-fading, no crack/deformation, zero formaldehyde, long service life and extremely low maintenance cost compared with natural solid wood.
5. All-Round Turnkey One-Stop Service
- Factory layout design & production workshop planning
- Exclusive WPC raw material formula technical guidance
- Complete equipment manufacturing, container loading & delivery
- Overseas engineer on-site installation, commissioning & debugging
- Professional operator training for daily production, equipment maintenance and mold replacement
- Long-term global after-sales service and spare parts supply
