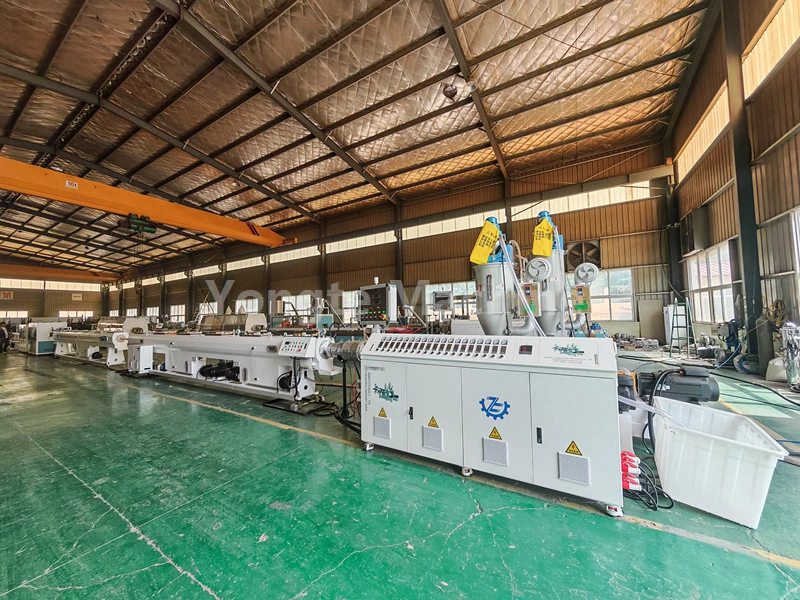

Yongte is professional manufacturer for PPR pipe equipment, it is high efficiency automatic production line for making PPR pipes—known for smooth inner walls and consistent size. Highly automated, it ensures stable production, uniform pipe quality, 150-200 kg/h output, and >10 m/min speed.
Yongte is a professional manufacturer of PPR pipe equipment for hot and cold water systems—specialized in continuous manufacturing of high-quality PPR pipes with smooth inner surfaces and precise dimensional accuracy.

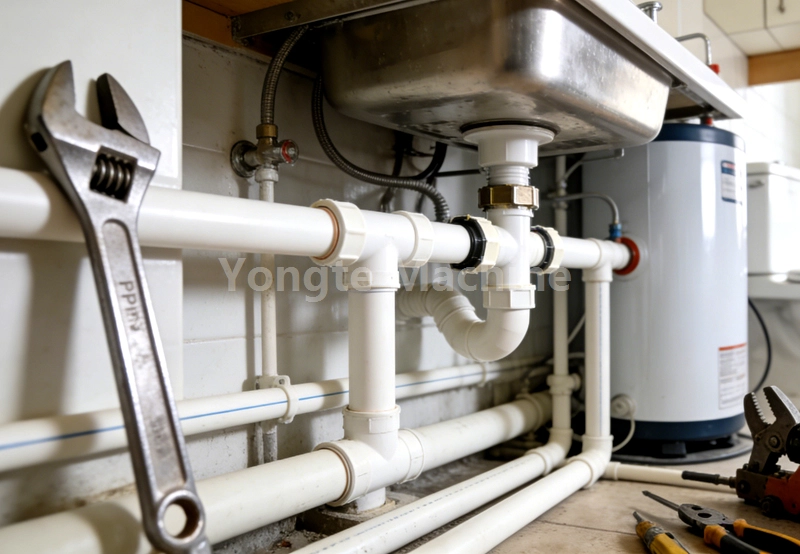

Random Copolymer Polypropylene (PPR) pipes have emerged as the leading solution for a wide range of global applications, including potable water supply, building drainage systems, underfloor heating networks, and various industrial fluid transport infrastructures. The material's market dominance stems from its inherent advantages: non-toxic and odorless properties ensure water supply safety; it withstands high temperatures and resists corrosion effectively; and its excellent thermal insulation enhances energy efficiency. Additionally, the machinery's precision engineering—utilizing advanced, high-efficiency single-screw extrusion technology—enables stable and reliable production of PPR pipes with outer diameters from 16mm to 63mm. The equipment is highly automated, significantly boosting production efficiency while ensuring consistent delivery of high-quality, uniform products.
PPR Resin + Color Masterbatch → Uniform Mixing → Vacuum Feeding → Material Drying → Extruder Plasticization (180–210°C) → Precision Mold Forming → Vacuum Calibration → Multi-Stage Spray Cooling → Laser Marking → Stable Traction → Fixed-Length Cutting → Automated Finished Product Stacking
|
Model |
16-63mm |
20-110mm |
75-160mm |
|
Pipe diameter (mm) |
16-63 |
20-110 |
75-160 |
|
Extruder model |
SJ65/33 |
SJ65/33 |
SJ75/33 |
|
Extrusion capacity (kg/h) |
120-150 |
150-180 |
200-250 |
|
Main motor power |
37kW |
45kw |
55kw |
|
Production line speed |
3-12m/min |
3-12m/min |
2-10m/min |
|
Total installed power |
70 kw |
90 kw |
110 kw |
|
Power consumption |
40 kw |
50 kw |
60 kw |
|
Vacuum calibration tank |
9m, |
9m |
9m |
|
Spraying cooling tank |
9m |
9m |
9m |
|
Cutting precision |
±1mm |
±1mm |
±1mm |
|
Certification |
CE |
CE |
CE |
|
Machine length |
28m |
30m |
32m |

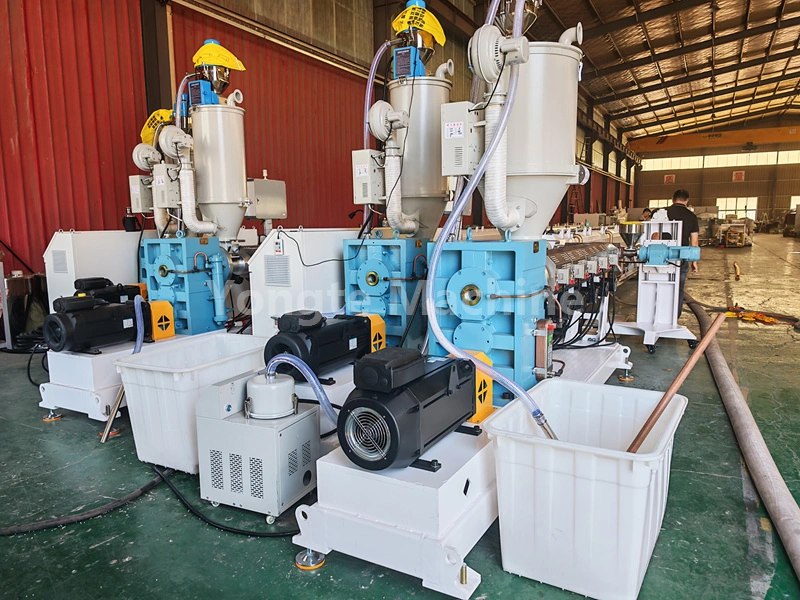

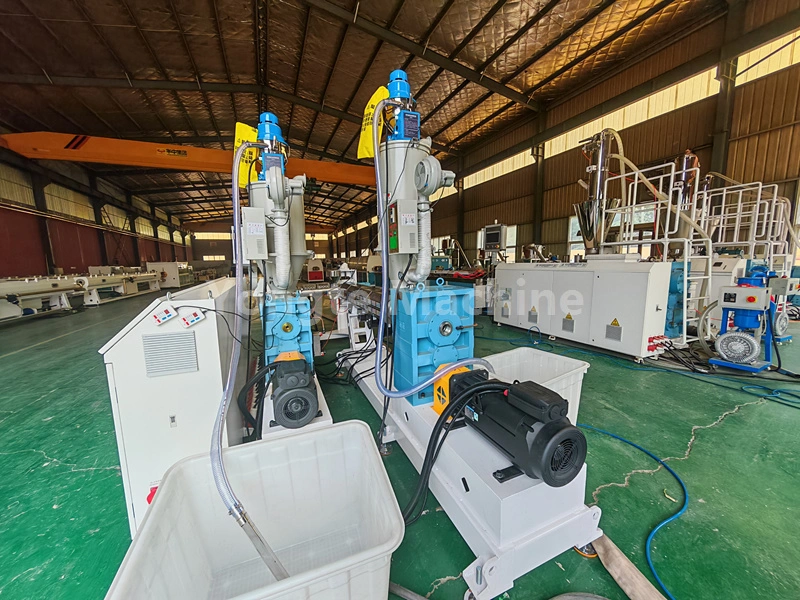

1.Raw Material Processing System: PE material is mixed with additives, such as color masterbatches, in a mixer. The vacuum feeder automatically sends the mixture to the extruder drying hopper, removing moisture to ≤0.1%—a critical factor for product consistency.

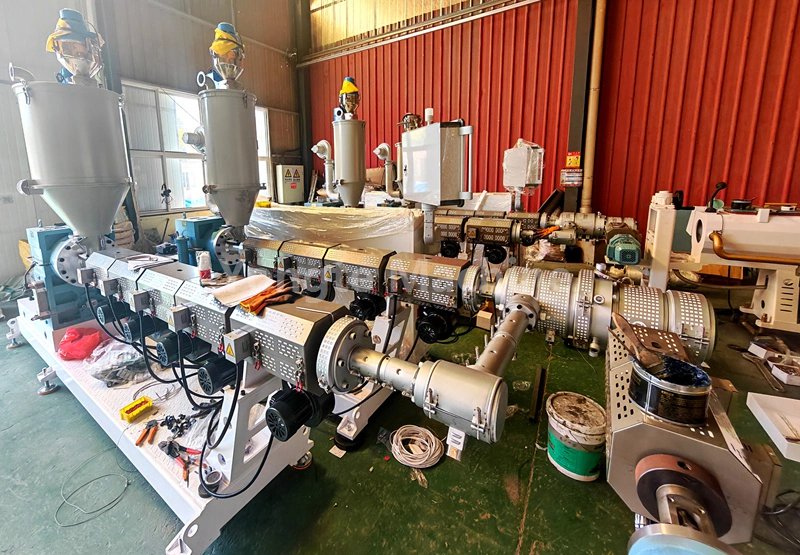

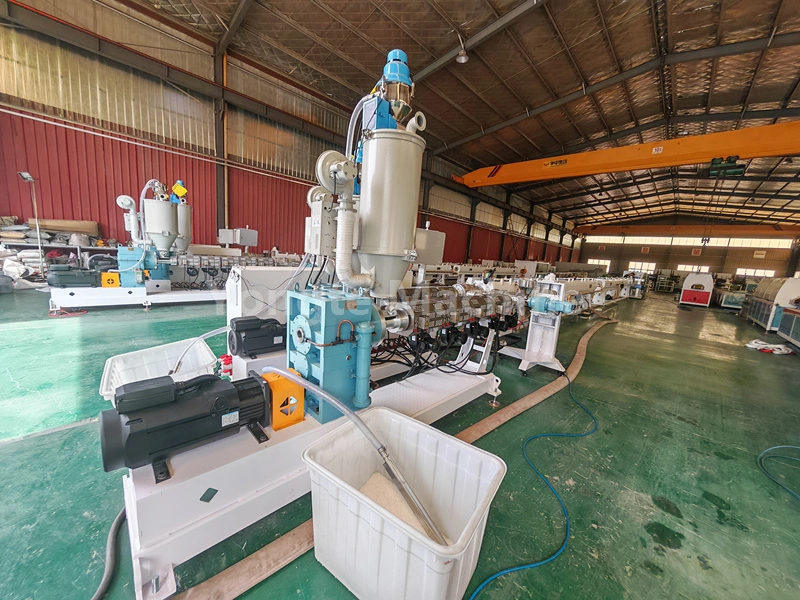

2.PPR Pipe Extruder: Equipped with an SJ65/33 high-efficiency single-screw extruder driven by a 55KW servo motor, reducing power consumption by approximately 20%. Key features include a direct-drive gearbox for enhanced efficiency and simplified maintenance, a robust 38CrMoALA alloy steel screw barrel treated with nitriding for superior wear and corrosion resistance, an infrared heating system, and Omron automatic temperature control for precise thermal management.

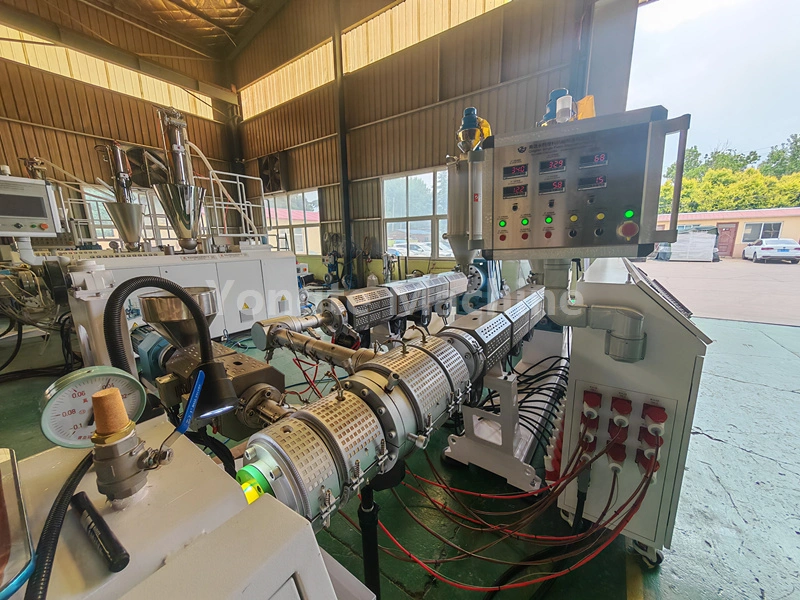

3. Marking Line Extruder: The SJ25 extruder is used to imprint marking lines onto PPR pipes. It can produce either a single marking line or multiple marking lines, depending on the customer's specifications.

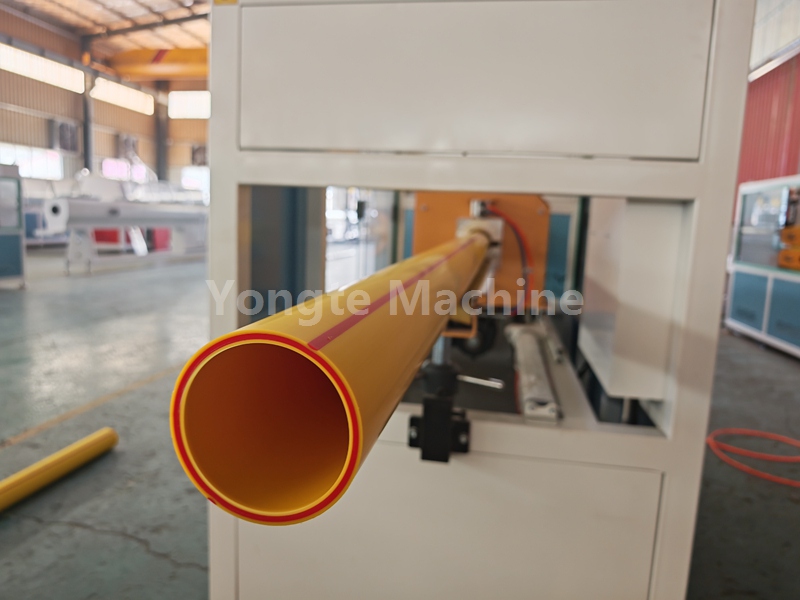

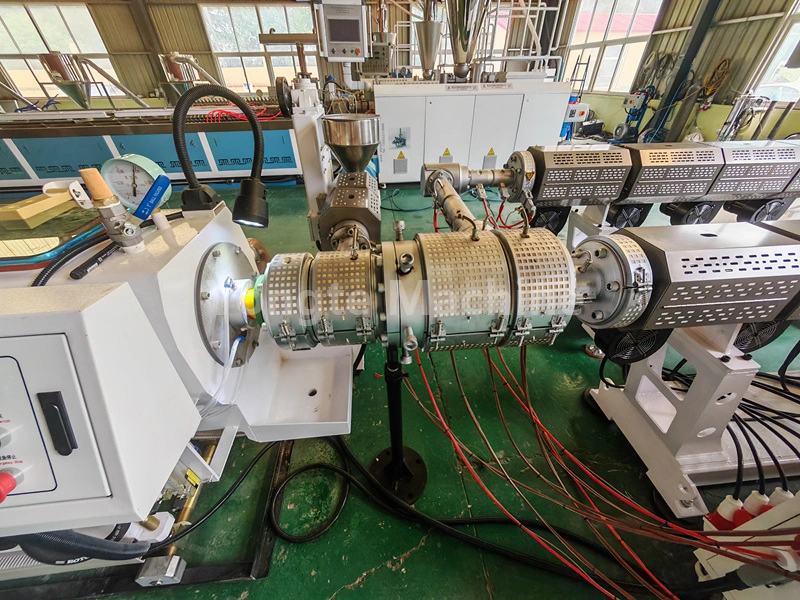

4. Specialized PPR Pipe Mold: The mold features a basket or spiral structure die head to ensure uniform extrusion of the material.

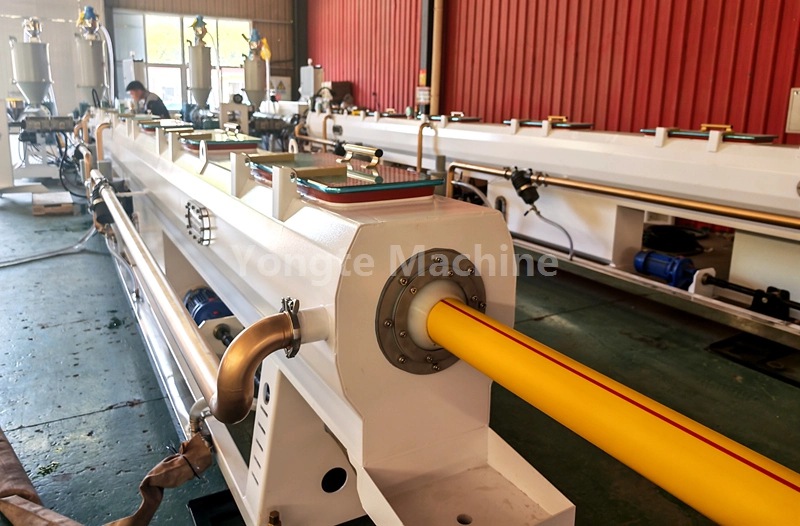

5. Vacuum Calibration Tank: The tube blank undergoes rapid precision calibration via vacuum adsorption, with a stable vacuum level ranging from 0.06 to 0.08 MPa to ensure strict dimensional accuracy. The tank is made of high-quality stainless steel for durability and corrosion resistance.

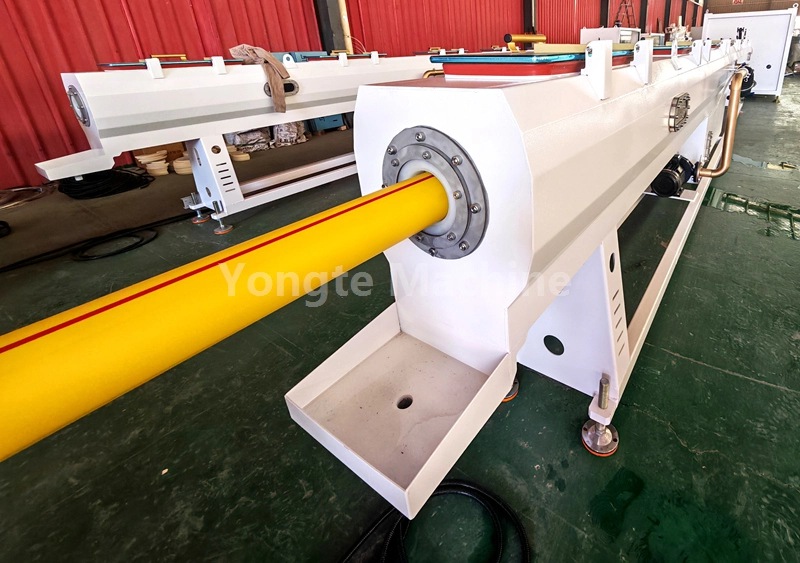

6. Spray Cooling Tank: Adopting multi-stage precision spray cooling technology, this tank maintains the water temperature below 20℃ to ensure rapid and uniform cooling of pipes,effectively preventing thermal deformation. Made of high-quality stainless steel,it boasts excellent corrosion resistance and long-term durability,supporting continuous and stable production operations.

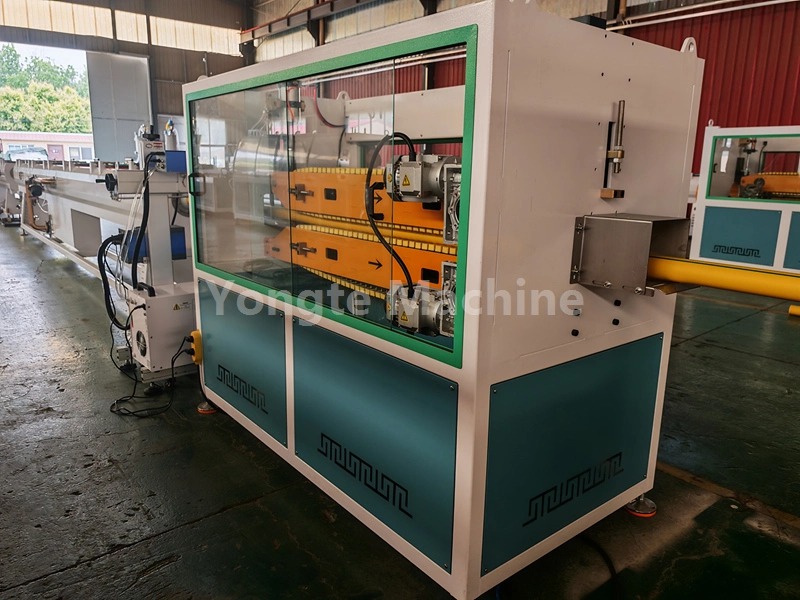

7. Pull-off Traction Machine: Draws pipes at a stable speed range of 3-15 m/min to ensure uniform length and continuous production stability. Equipped with high-precision tension control systems, it effectively maintains consistent traction force,prevents pipe deformation,and guarantees strict dimensional accuracy of finished products.

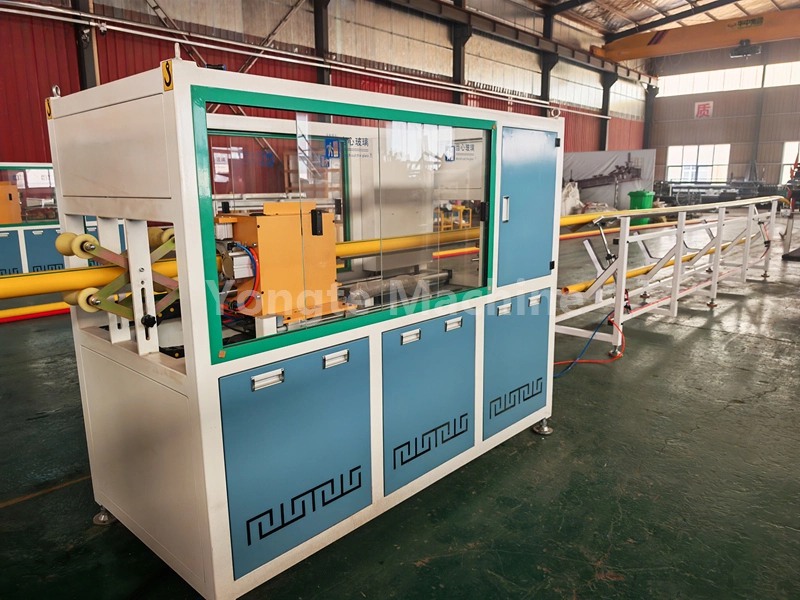

8. Planetary Cutter: This cutter enables automatic fixed-length cutting with chip-free operation and smooth,burr-free edges—specifically optimized for small-to-medium diameter PPR pipes. Its high-precision cutting mechanism ensures consistent length accuracy and effectively minimizes material waste during production.

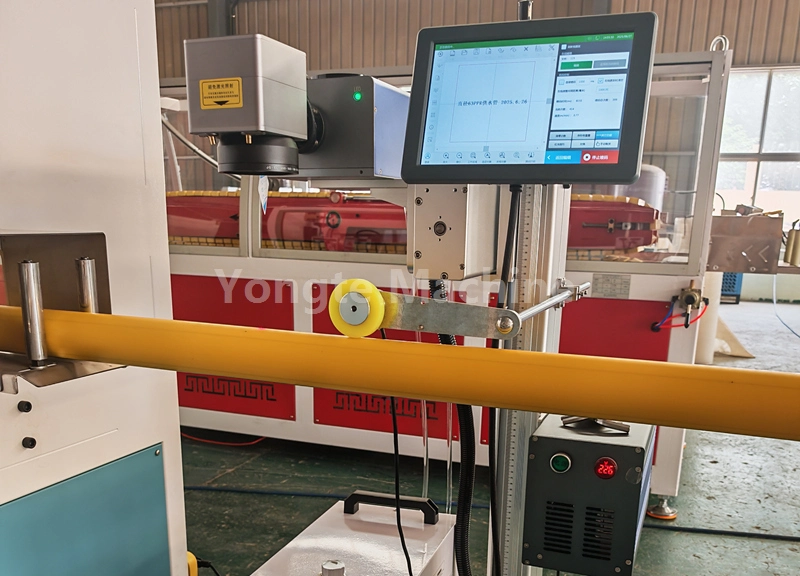

9. Laser Printing Machine: This machine utilizes advanced laser technology to print product specifications and batch information in real-time, achieving clear, durable markings without the need for consumables.

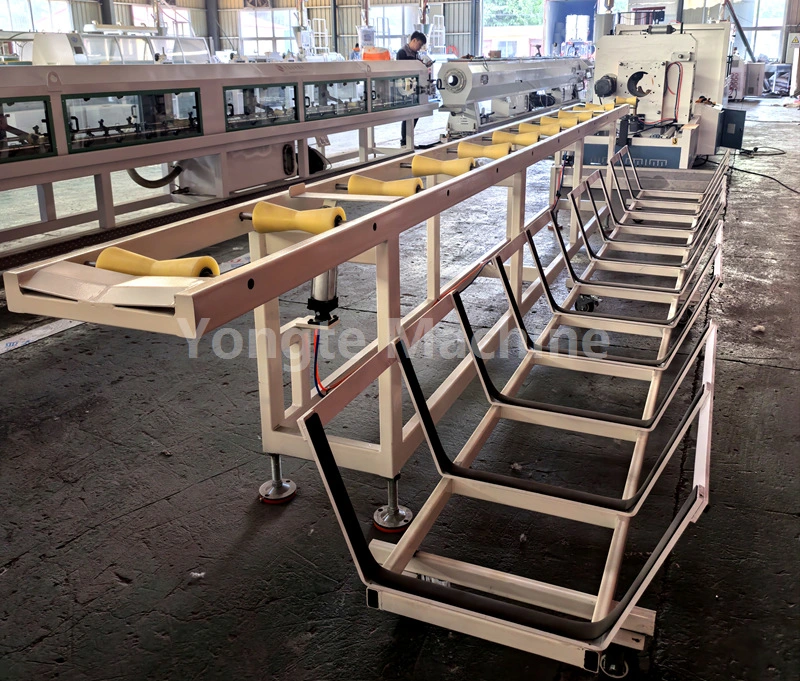

10. Stacking Rack: This automatic stacking rack neatly arranges finished pipes with adjustable height and layer count to accommodate different pipe lengths and storage requirements. Its robust frame and anti-slip design ensure stable stacking and convenient handling, significantly enhancing post-production storage efficiency.

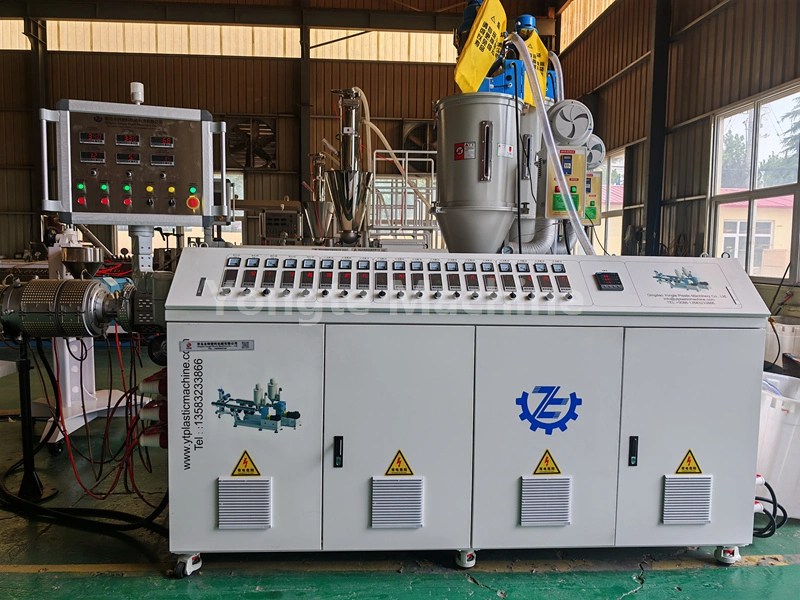

11. Electric Control System: This system integrates high-performance electrical components, including ABB frequency converters, Siemens contactors, Omron temperature controllers, and Inovance servo controllers, ensuring stable operation and precise control of the entire production line.

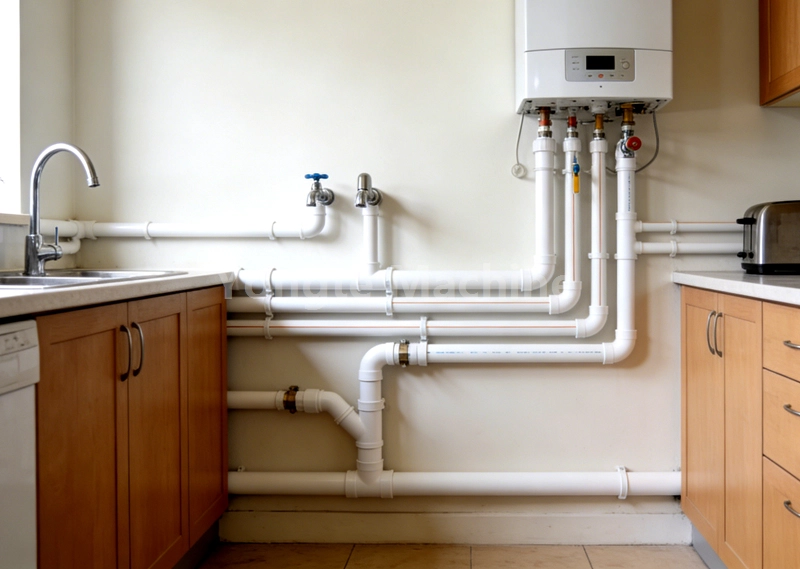

The PPR pipe, made of random copolymer polypropylene, is an eco-friendly and durable plastic pipe that is easy to install. It has widely replaced traditional galvanized and copper pipes. The pipe's core advantages, including being non-toxic, odorless, resistant to high temperatures and corrosion, and providing excellent thermal insulation, have made it the mainstream choice for global water supply, drainage, heating, and industrial fluid transport.
