Plastic Wood Machine

Yongte High-Quality Plastic Wood Machine - Innovative Solutions for Plastic Recycling and Reuse

Product Introduction

Yongte is Professional manufacturer in China for high quality Plastic Wood Machine, it is specifically designed to utilize 100% plastic waste without the addition of wood flour as a filler. The output product is durable plastic lumber profiles that boast excellent performance, high flexibility, superior strength, resistance to cracking, good weather resistance, and a long lifespan. Yongte engineers the Plastic Wood Machine with various extrusion and cooling systems tailored to the customer's plastic waste material and the desired product specifications, providing an effective solution for recycling and reusing plastic waste. This innovative solution not only minimizes the environmental footprint of plastic waste but also delivers a cost-efficient alternative to conventional wood materials. The Plastic Wood Machine operates with exceptional efficiency, ensuring minimal energy consumption throughout the production cycle. Furthermore, Yongte offers comprehensive after-sales support, including professional technical guidance and maintenance services, to guarantee uninterrupted machine performance. Committed to sustainability and client satisfaction, Yongte remains at the forefront of developing cutting-edge recycling technologies that actively contribute to building a more eco-friendly future.

Product Parameter

Product details:

1, Automatic feeder and hopper: screw feeder or vacuum suction feeder is optional according to material. The drying hopper is equipped for taking out moisture .

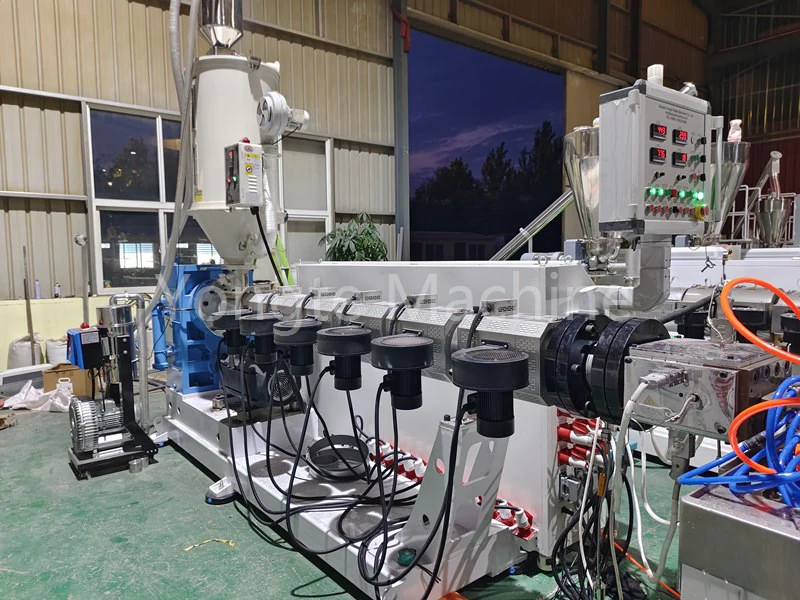

2, SJ90 Single screw extruder: equip with 45KW-55KW servo motor for saving 15-20% power, equip with vertical gearbox for stably and powerful production, equip with bimetallic screw and SKD barrel for long time using, equip with automatic temperature control system .

3, Lumber profile die head: the extrusion die is specially designed for using 100% recycled material with good flow design to ensure enough extrusion pressure.

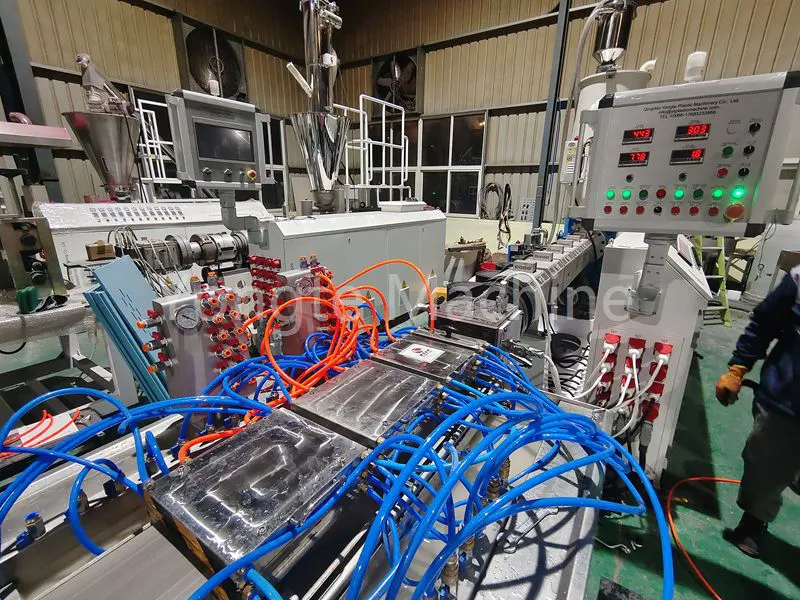

4, Calibrators: Made of high-quality 3Cr17 mold steel, designed with fast vacuum calibration system and 4-6meter lengths water cooling tank.

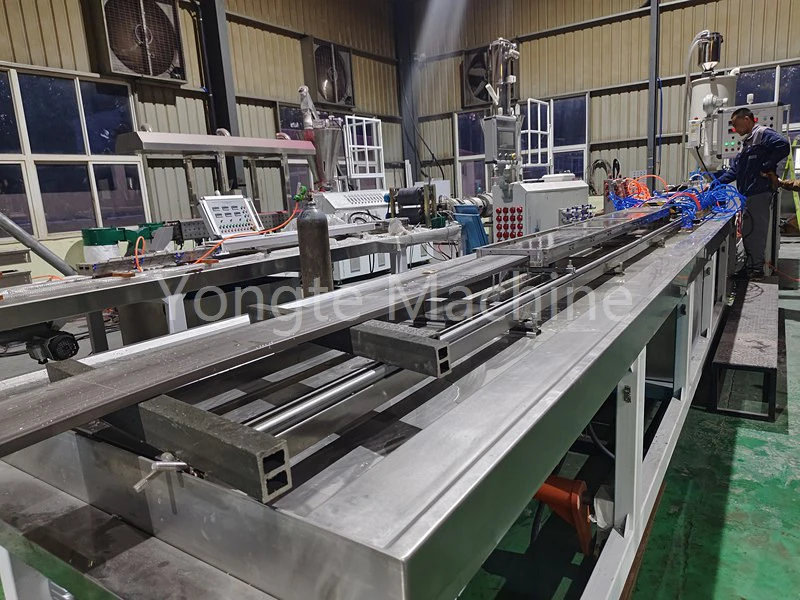

6, Calibration and cooling table: Made from a single sheet of 304 stainless steel, with a reasonable pipeline design, it features overall electric lifting and left-right adjustment, and  water system along its entire length. It is suitable for rapid cooling systems, easy to install and maintain, and the water tank is equipped with a filter to prevent contamination.

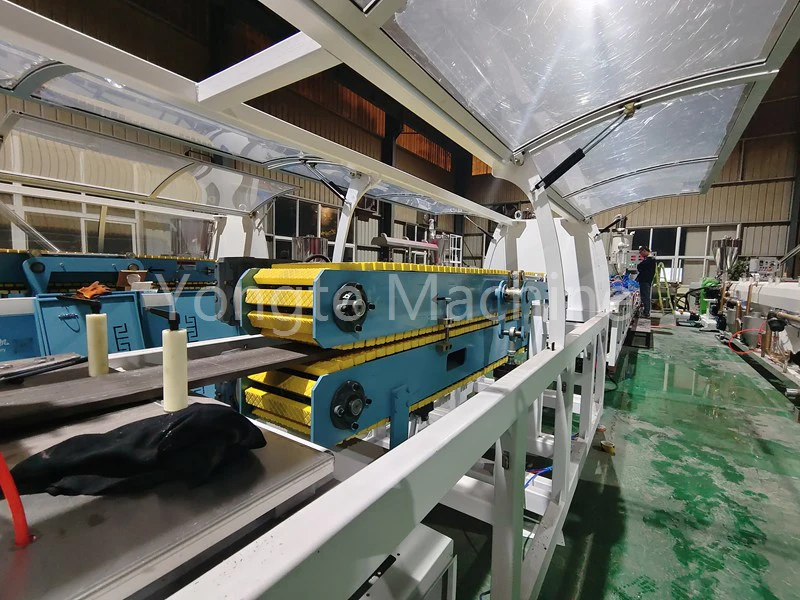

7, Traction machine: High-quality rubber ensures durability, the tire tread surface guarantees traction friction, dual-stage reduction provides sufficient traction torque, and the bird-wing protective cover simplifies operation and maintenance.

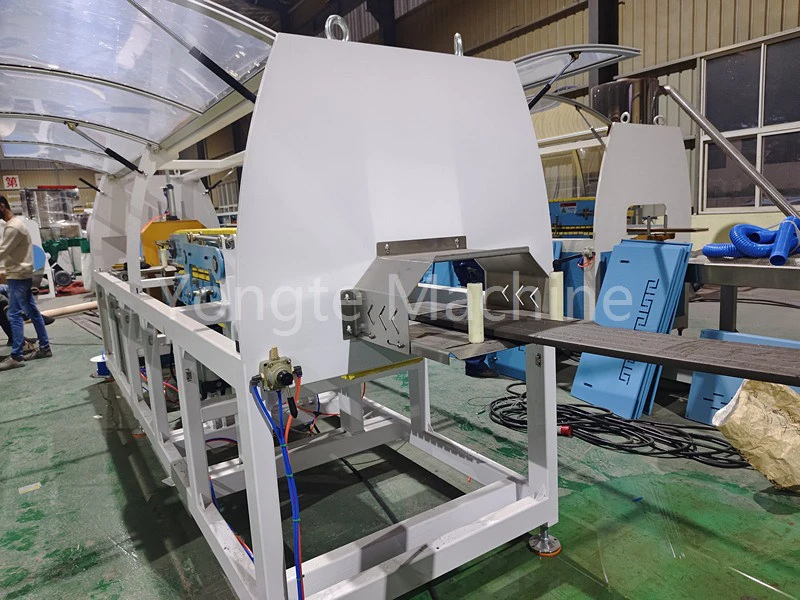

8, Cutting machine: automatic fixed-length cutting, 304 stainless steel panel, fully enclosed dust collection system to reduce dust pollution, equipped with servo motor, and special material cutting blades for high-speed cutting, avoiding chipping.

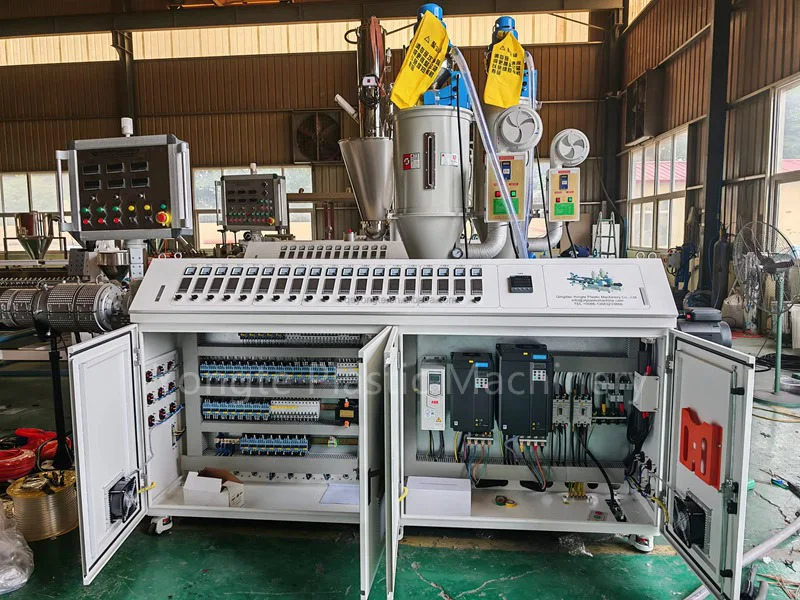

9, Electric control system:Equip with ABB inverter, Omron temperature controller, Siemens contractor, PLC control system is also optional

all contactors and wires in our electrical cabinets are neatly arranged, with wire numbers clearly labeled according to a set pattern. Sufficient clearance between components allows for easy operation by electricians. All auxiliary wiring uses quick-connect plugs (eliminating the need for customer wiring), ensuring convenience and safety.

10, Product stacker: 6 meter auto stacker.

Product application:

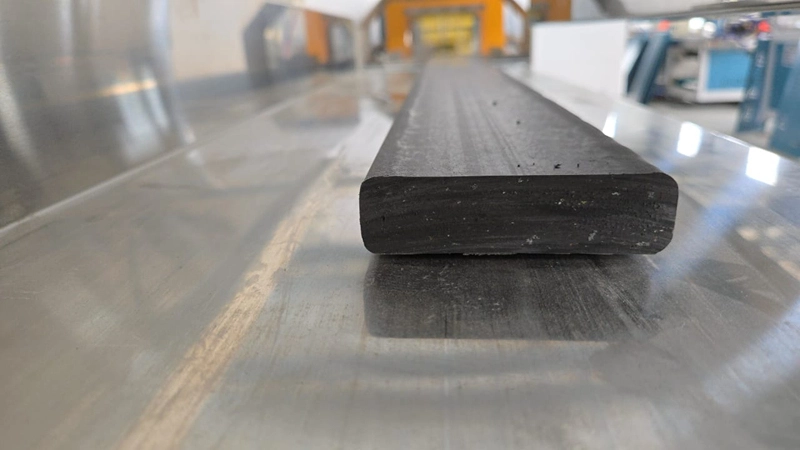

Plastic lumber’s weather resistance makes it ideal for outdoor environments, such as outdoor fence system, outdoor fence pole, Plastic beach chair, Plastic sunbed, Plastic Shade shed.

The main types of Yongte Plastic Wood Machine

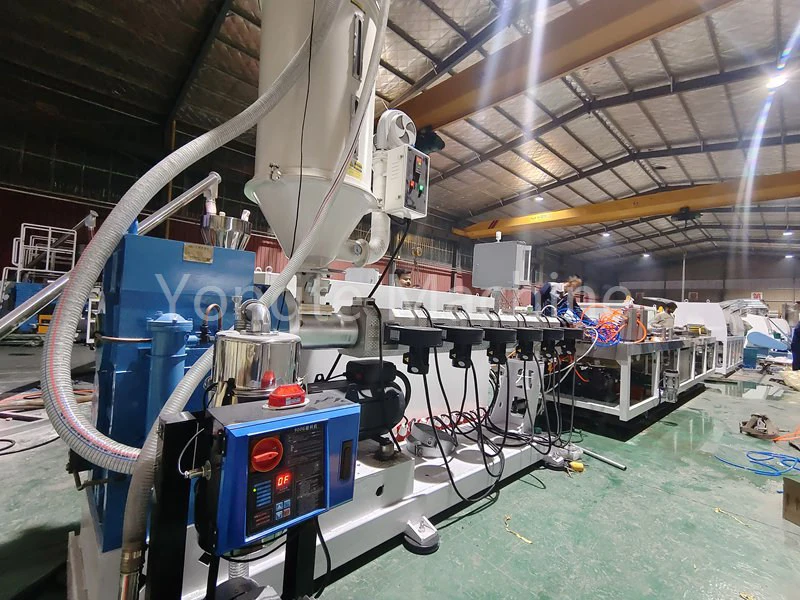

1, The SJ90 plastic lumber profile extrusion line is designed for the continuous extrusion of plastic lumber planks. This machine is equipped with a single screw extruder, capable of processing high-quality recycled PP/PE/ABS flakes or granules. It works in conjunction with a vacuum calibration unit and cooling tank, along with a stable pull-off tractor and automatic cutter. Consequently, this production line can continuously produce plastic lumber products, with the ability to cut the product to any desired length. The vacuum calibration ensures that the products have a superior surface finish and maintain a stable shape. As a result, the plastic lumber is suitable for a wide range of applications, including outdoor furniture such as chairs, sunbeds, tables, and desks.

2, The SH75 plastic lumber board extrusion line is equipped with a parallel twin-screw extruder featuring a vacuum exhausting system and a force-feeding device, enabling it to process a mix of crushed plastic materials such as film, bags, and flakes. With the addition of a wide-width extrusion die, a calibration table, a traction machine, and a cutter, this line is capable of producing plastic lumber boards up to 1200mm in width and 50mm in thickness. The vacuum calibration ensures that the product surface is smooth and uniform, and the length can be cut to any desired size. Plastic lumber board products are widely used as panels for desks and tables and can also be cut into smaller planks.

3, The SJZ180 plastic fence pole extrusion and molding machine can utilize plastic waste film and bags directly, eliminating the need for crushing and washing processes. The large-diameter twin-screw extruder can ingest the plastic waste directly, melt it, and then push the material into molds. These molds are submerged in a full water tank after being filled with the molten material. Consequently, this machine produces solid fence poles in either round or square shapes. The length of the fence poles is determined by the mold and is typically a maximum of 2500mm.
