Plastic Lumber Panel Making Machine

Yongte High-Quality plastic lumber panel making machine - Innovative Solutions for Recycling and Reuse plastic wastage

Product Introduction

Yongte is a professional manufacturer based in China specializing in high-quality plastic lumber panel making machines. Our equipment is specifically engineered to utilize 100% plastic waste without requiring wood flour as a filler. The resulting plastic lumber profiles exhibit exceptional durability, featuring superior performance characteristics such as high flexibility, remarkable strength, crack resistance, excellent weatherability, and an extended service life. Yongte engineers each plastic lumber panel making machine with customized extrusion and cooling systems tailored to clients' specific plastic waste materials and desired product specifications, delivering a comprehensive solution for efficient plastic waste recycling and reuse. This innovative technology not only minimizes the environmental footprint of plastic waste but also provides a cost-effective alternative to traditional wood materials. The plastic lumber panel making machine operates with exceptional efficiency, ensuring minimal energy consumption throughout the production cycle. Furthermore, Yongte offers comprehensive after-sales support, including professional technical guidance and maintenance services, to guarantee uninterrupted machine performance. Committed to sustainability and client satisfaction, Yongte remains at the forefront of developing cutting-edge recycling technologies that actively contribute to building a more eco-friendly future.

Product Parameter

Product details:

1, Automatic feeder and hopper: screw feeder or vacuum suction feeder is optional according to material. The drying hopper is equipped for taking out moisture .

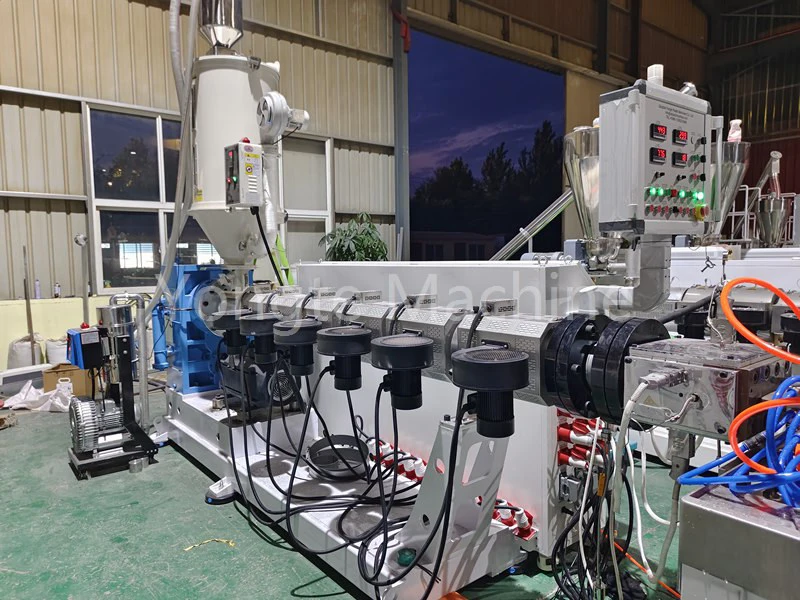

2, SJ90 Single screw extruder: equip with 45KW-55KW servo motor for saving 15-20% power, equip with vertical gearbox for stably and powerful production, equip with bimetallic screw and SKD barrel for long time using, equip with automatic temperature control system .

3, Lumber profile die head: the extrusion die is specially designed for using 100% recycled material with good flow design to ensure enough extrusion pressure.

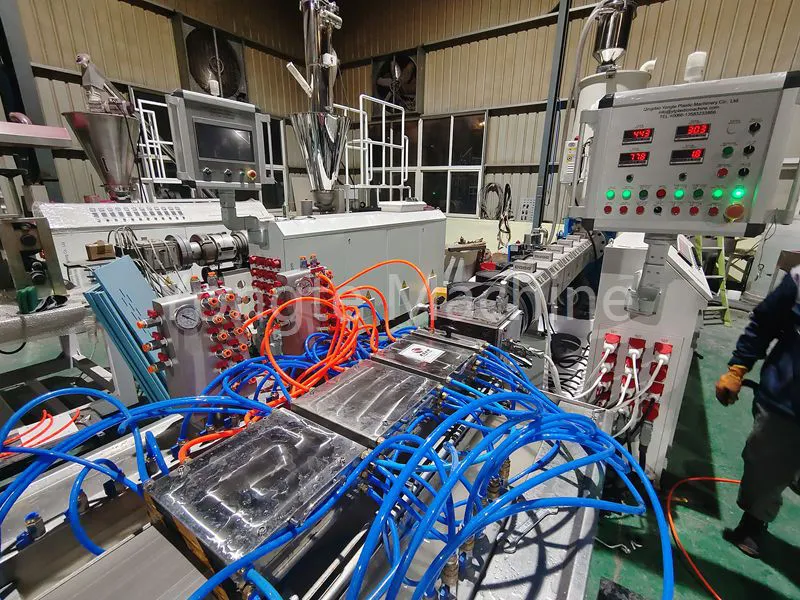

4, Calibrators: Made of high-quality 3Cr17 mold steel, designed with fast vacuum calibration system and 4-6meter lengths water cooling tank.

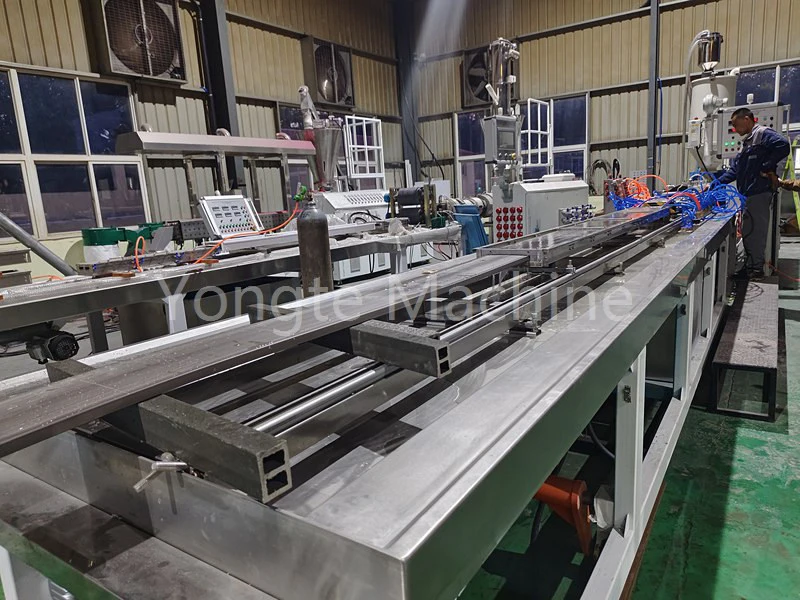

6, Calibration and cooling table: Made from a single sheet of 304 stainless steel, with a reasonable pipeline design, it features overall electric lifting and left-right adjustment, and  water system along its entire length. It is suitable for rapid cooling systems, easy to install and maintain, and the water tank is equipped with a filter to prevent contamination.

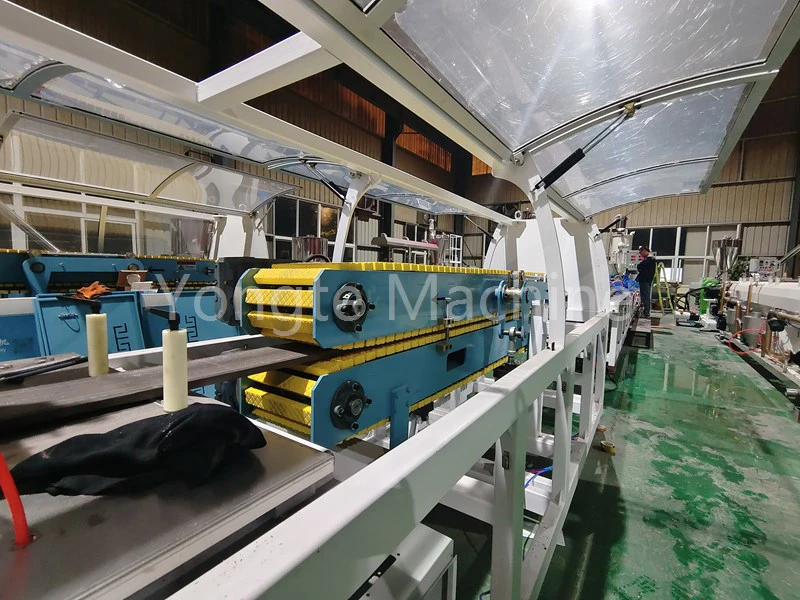

7, Traction machine: High-quality rubber ensures durability, the tire tread surface guarantees traction friction, dual-stage reduction provides sufficient traction torque, and the bird-wing protective cover simplifies operation and maintenance.

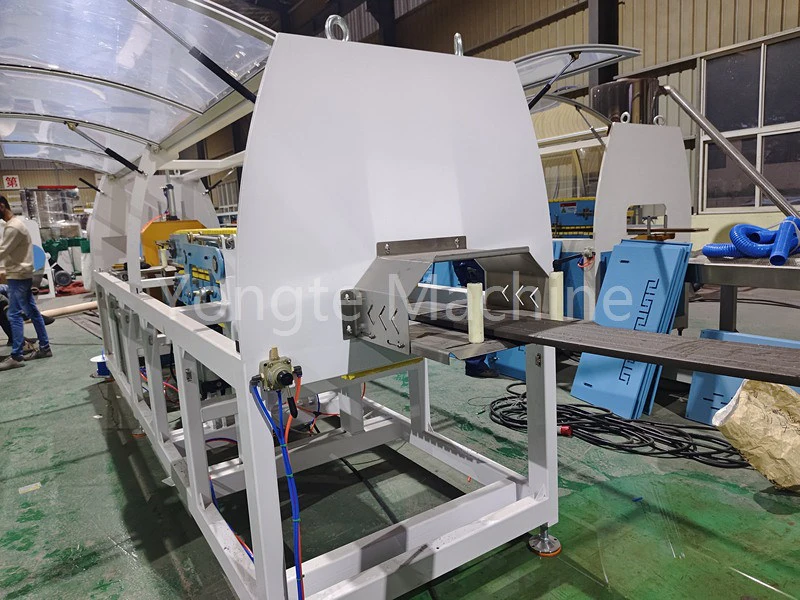

8, Cutting machine: automatic fixed-length cutting, 304 stainless steel panel, fully enclosed dust collection system to reduce dust pollution, equipped with servo motor, and special material cutting blades for high-speed cutting, avoiding chipping.

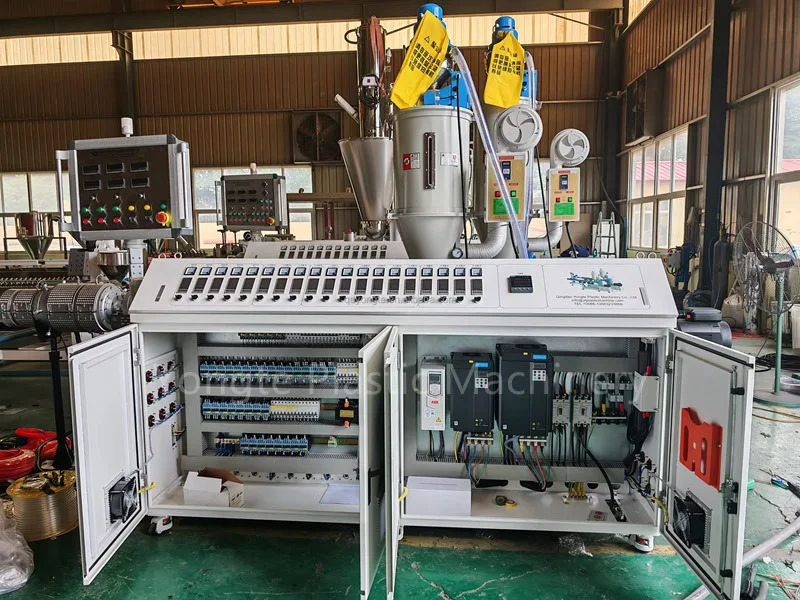

9, Electric control system:Equip with ABB inverter, Omron temperature controller, Siemens contractor, PLC control system is also optional

all contactors and wires in our electrical cabinets are neatly arranged, with wire numbers clearly labeled according to a set pattern. Sufficient clearance between components allows for easy operation by electricians. All auxiliary wiring uses quick-connect plugs (eliminating the need for customer wiring), ensuring convenience and safety.

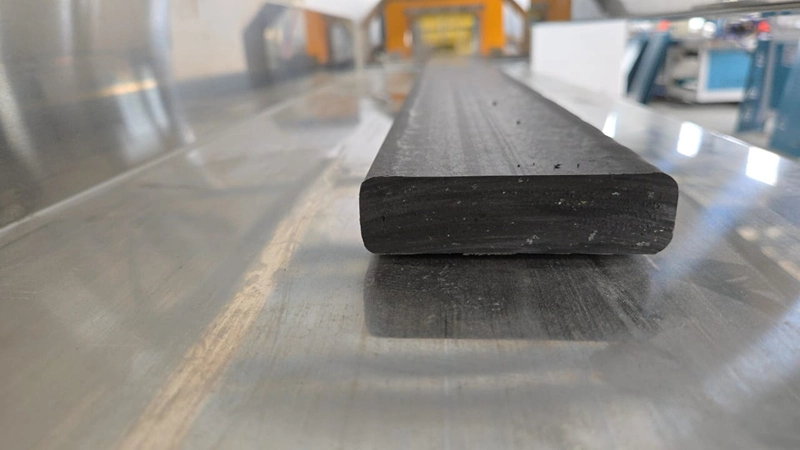

10, Product stacker: 6 meter auto stacker.

Product application:

Plastic lumber’s weather resistance makes it ideal for outdoor environments, such as outdoor fence system, outdoor fence pole, Plastic beach chair, Plastic sunbed, Plastic Shade shed.

The main types of Yongte plastic lumber panel making machine

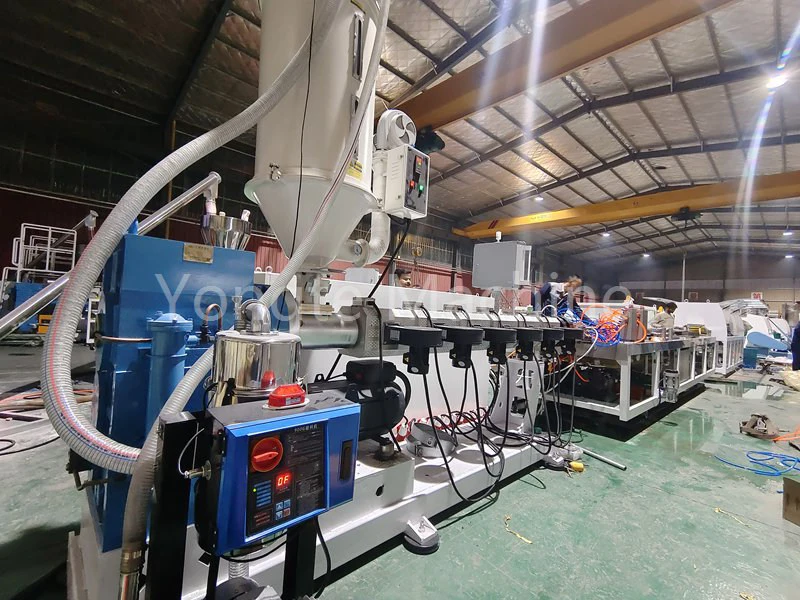

1, Our SJ90 plastic lumber profile extrusion line is all about making plastic planks non-stop. It comes with a single screw extruder that can handle good quality recycled PP/PE/ABS flakes or granules. We pair it up with a vacuum calibration unit, cooling tank, steady pull-off tractor, and automatic cutter. That way, the line can keep churning out plastic lumber products, and you can cut them to whatever length you need. The vacuum calibration makes sure the products have a really smooth surface and stay in shape. So these plastic planks work for all sorts of things—like outdoor furniture such as chairs, sunbeds, tables, and desks.

2, Our SH75 plastic lumber panel making machine is really handy! It comes with a parallel twin-screw extruder that has a vacuum exhaust system and a force-feeding device, so it can handle all kinds of crushed plastic materials—like films, bags, and flakes. We added a wide extrusion die, calibration table, traction machine, and cutter to the line, which lets it make plastic lumber boards up to 1200mm wide and 50mm thick. The vacuum calibration makes sure the boards have a smooth, even surface, and you can cut them to any length you want. These plastic lumber boards are super versatile—people use them for desk and table panels, and you can even cut them into smaller planks too. .

3, Our SJZ180 plastic fence pole machine is super convenient—it can take plastic waste like films and bags straight in, no need for crushing or washing first. The big twin-screw extruder just eats up the plastic waste, melts it down, and pushes it into molds. After filling the molds with melted plastic, we dunk them in a water tank to cool. That's how it makes solid fence poles, either round or square. The mold decides how long they are, usually up to 2500mm max.
