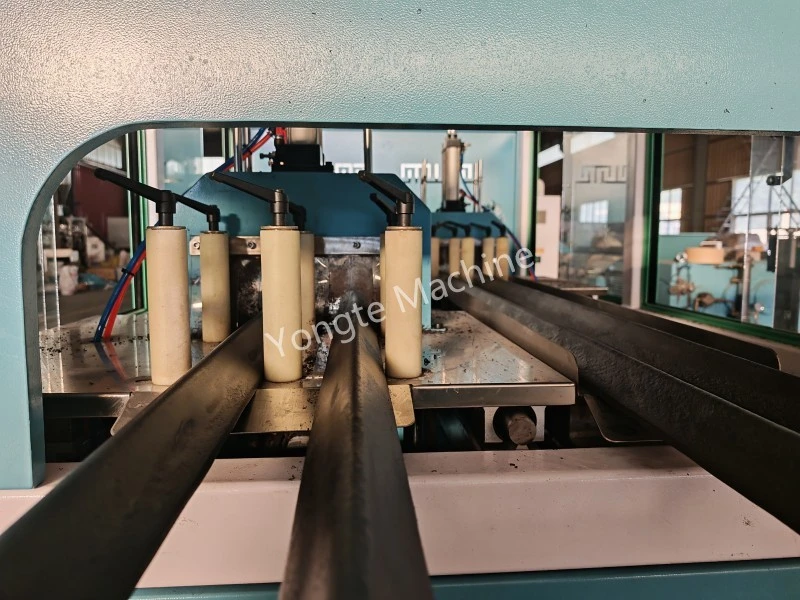

The 4 Cavity Plastic Profile Extrusion Line is a high-efficiency multi-outlet continuous extrusion system specially engineered for synchronous production of 4 identical plastic small profiles in one single extrusion cycle, mainly for conduit, small WPC strips and building plastic auxiliary profiles. Different from conventional single-cavity extrusion lines, this one-out-four layout quadruples output capacity under the same factory footprint and single-set power configuration, drastically cutting unit production cost for mass-volume plastic profile manufacturers.

Technical Parameters

Item	Equipment	Function
01	Auto Feeder	Automatic spiral feeder made by 304 Stainless steel for feeding material to the extruder hopper
02	Extrusion Machine	We will equip single screw extruder or double screw extruder according to the processing material.
03	Extrusion Die head	4 cavity extrusion die with double extrusion body, designed with flow adjusting function
04	Calibrators	double body calibrators for 4 cavity profile
05	Cooling table	6-8 meter length with water cooling and vacuum cooling
06	Traction Machine	Double unit pull off device for 4 cavity profile
07	Cutting machine	double unitl automatic cutter for 4 cavity profile
08	Product stacker	double unit product stacker
09	Electric control system	ABB inverter, Omron temperature controller, Siemens Contractors, Servo motor for saving 15% power

Pictures of 4 Cavity Plastic Profile Extrusion Line

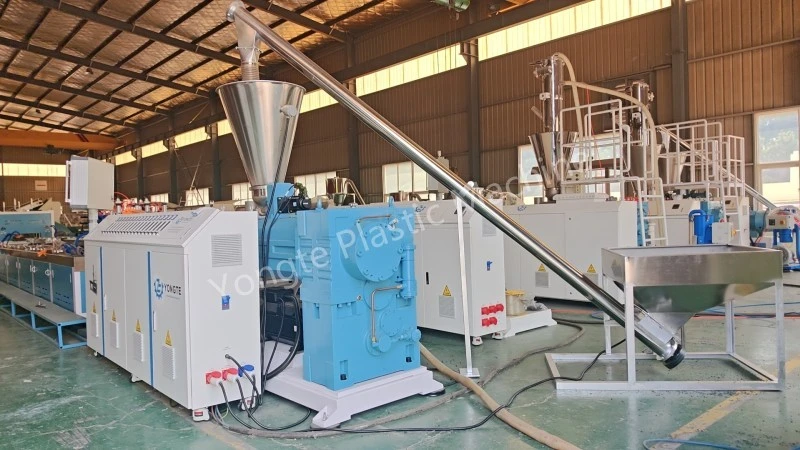

1, Automatic Spiral Feeder made by 304 Stainless Steel

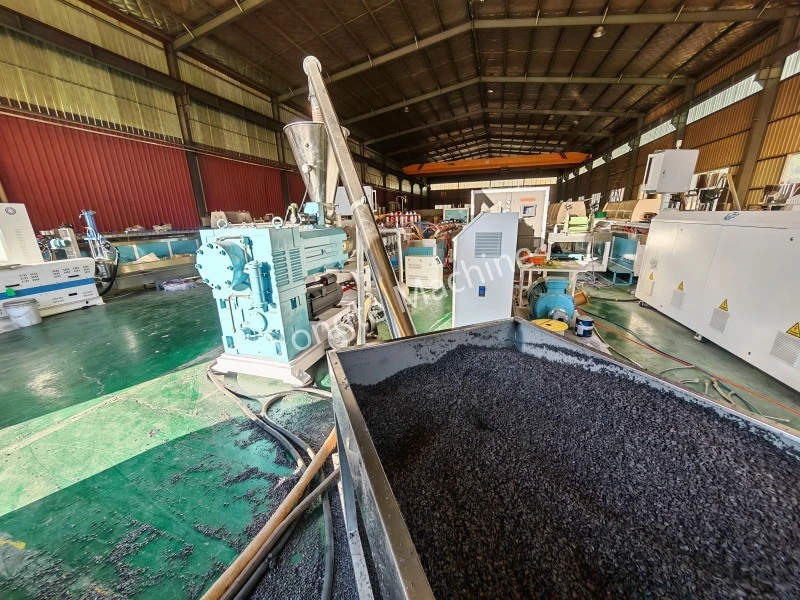

2,  Extruder Machine : high effiencicy with servo motor

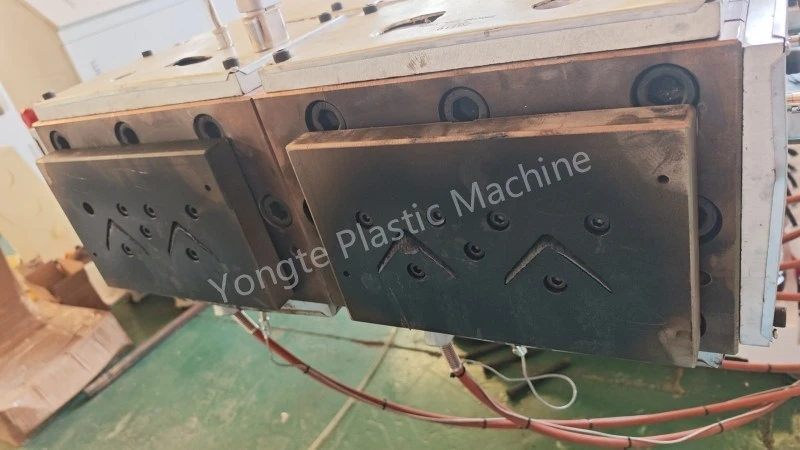

3, 4 Cavity extrusion die with double body

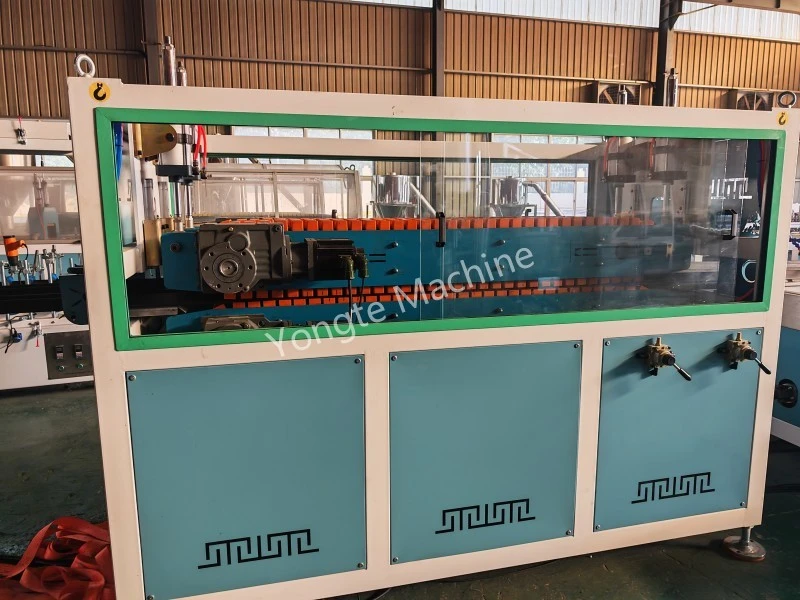

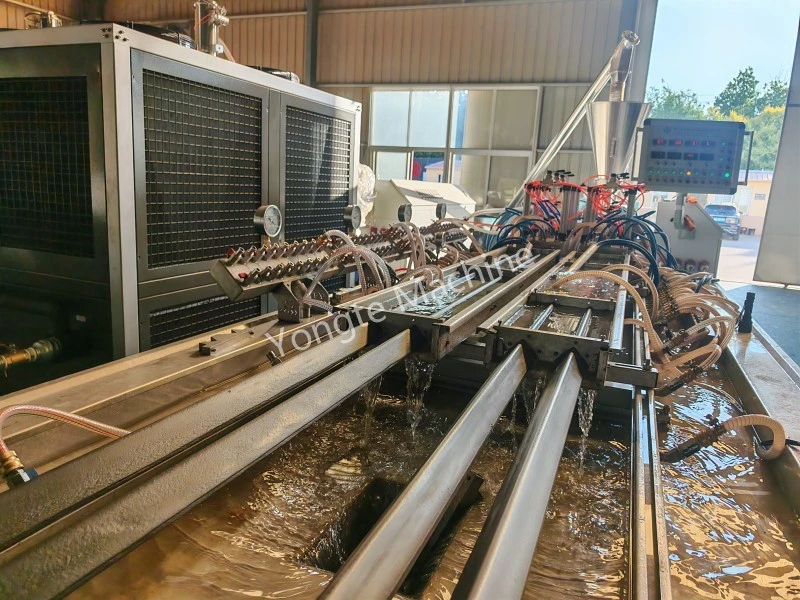

4, Cooling calibrators and water tank

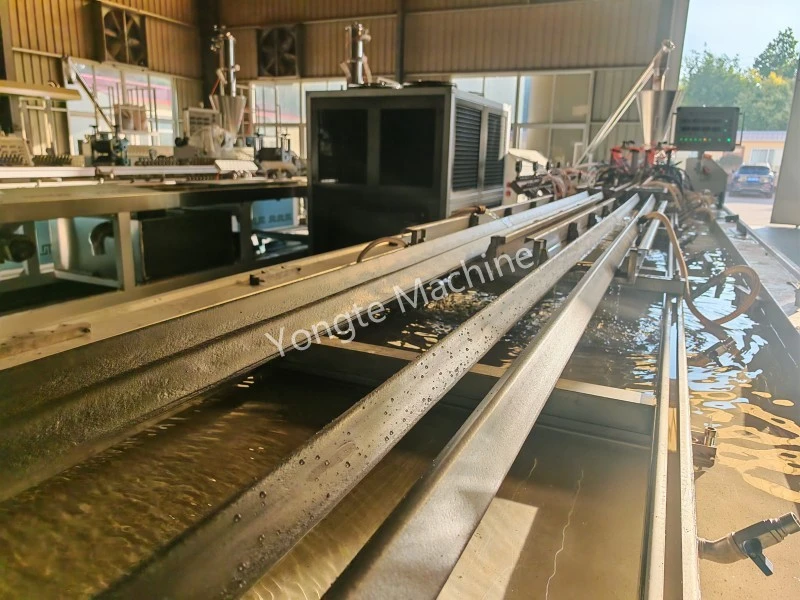

5, Cooling table : 6-8meter length, water cooling and vacuum cooling

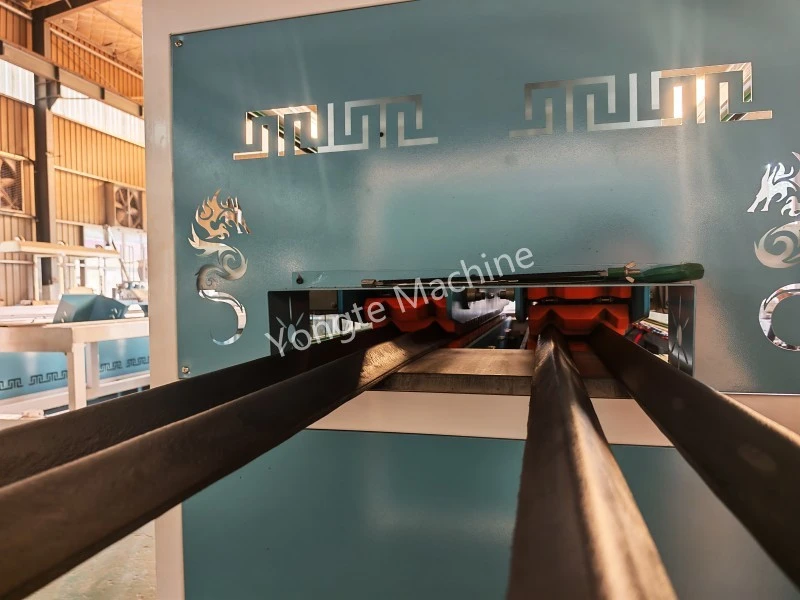

6, traction machine: double unit pull off

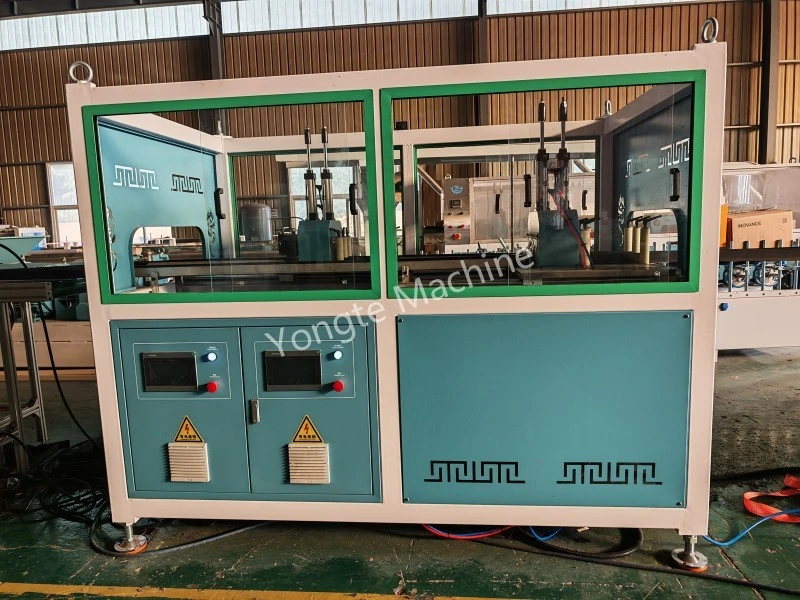

7, Automatic fixed length cutting machine: double unit
