Yongte PE/PP Plastic Lumber Extrusion Machine for reusing plastic film wastage is used for making profiles continously from recycled PP/PE material, the machine can make different size and shape of plastic lumber by changing the mold. the PP PE Plastic lumber has excellent performance, strong toughness, no-cracking, excellent nail-holding ability, good weather resistance, so the plastic lumber is widely used for outdoor tables, chairs, furnitures, park benches, garden fence, livestock fence, building columns.
Yongte PE/PP Plastic Lumber Extrusion Machine for reusing plastic film wastage - continously production, customized product length, CE certified
Yongte PE/PP Plastic Lumber Extrusion Machine for reusing plastic film wastage is used for making profiles continously from recycled PP/PE material without mixing with wood powder, the plastic lumber profile can be made at any required length, even 6m or 12 meter length is workable. the machine can make different size and shape of plastic lumber by changing the mold. the PP PE Plastic lumber has excellent performance, strong toughness, no-cracking, excellent nail-holding ability, good weather resistance, so the plastic lumber is widely used for outdoor tables, chairs, furnitures, park benches, garden fence, livestock fence, building columns.
|
Model |
SJ90 |
SH75 |
SJZ90 |
|
Input material |
Recycled PP/PE ABS granules or flakes |
Recycled crushed PP/PE/ABS mixed material |
PP/PE/ABS plastic wastage |
|
Output product |
Plastic lumber profile less than 300mm width |
Plastic lumber profile or wide board |
Solid plastic pole, round fence pole, square post. |
|
Molding type |
Continuously extrusion and molding |
Continuously extrusion and molding |
Molding by pieces |
|
Extruder type |
Single screw extruder |
Parallel twin screw extruder |
Parallel double screw extruder |
|
Screw diameter |
90mm |
75mm |
90mm |
|
Main motor power |
45-55kw |
90-110kw |
110-160kw |
|
Extrusion capacity |
200 kg/h |
400 kg/h |
600 kg/h |
|
Cooling method |
Vacuum calibration and water cooling |
Vacuum calibration and water cooling |
Full water cooling |
|
Machine length |
25 meter |
30 meter |
12 meter |
The SJ90 PE/PP Plastic Lumber Extrusion line consists of vacuum loader, single screw extruder, die and mold, vacuum calibration table, haul off and cutting machine, stacker and electric control system.

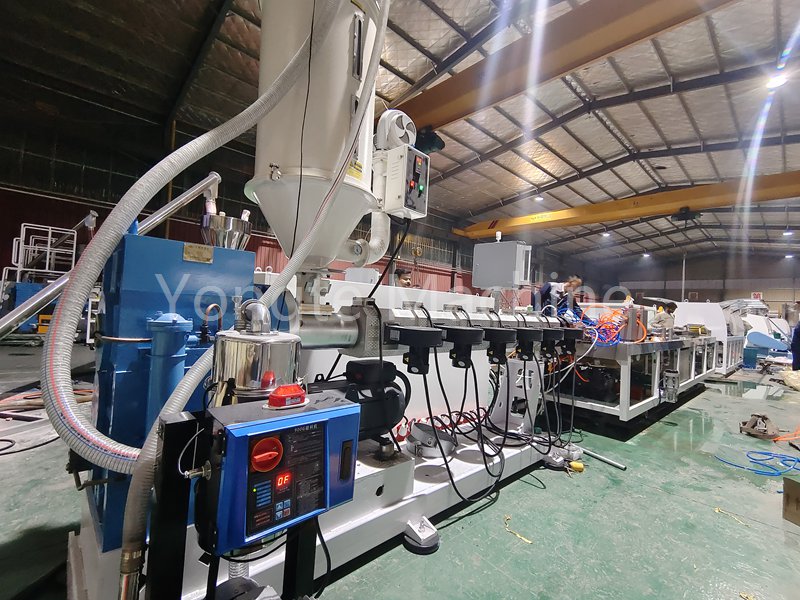

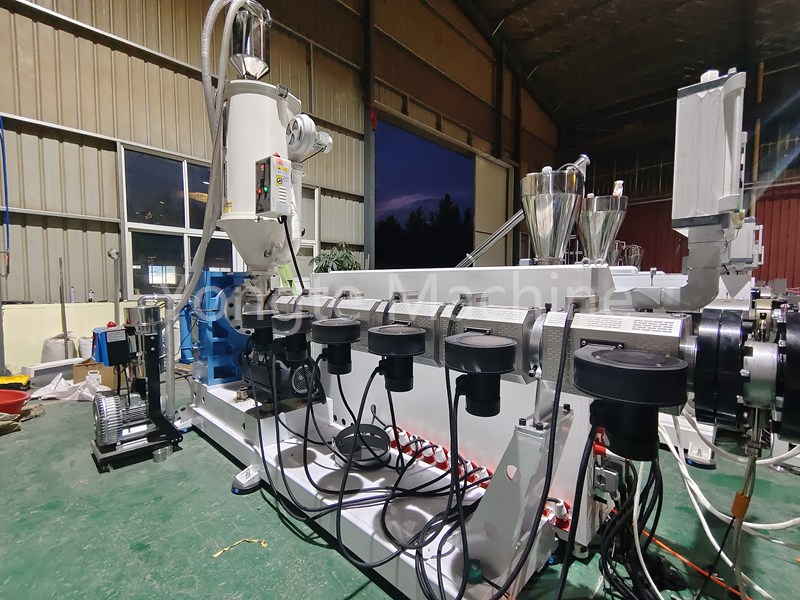

1, Single screw extruder: it equop with automatic vacuum suction feeder and drying hopper, it equip servo motor for saving 20-30% power consumption, the gearbox is stronge and durable, it is high effeciency extruder specially designed for processing recycled PP/PE plastic

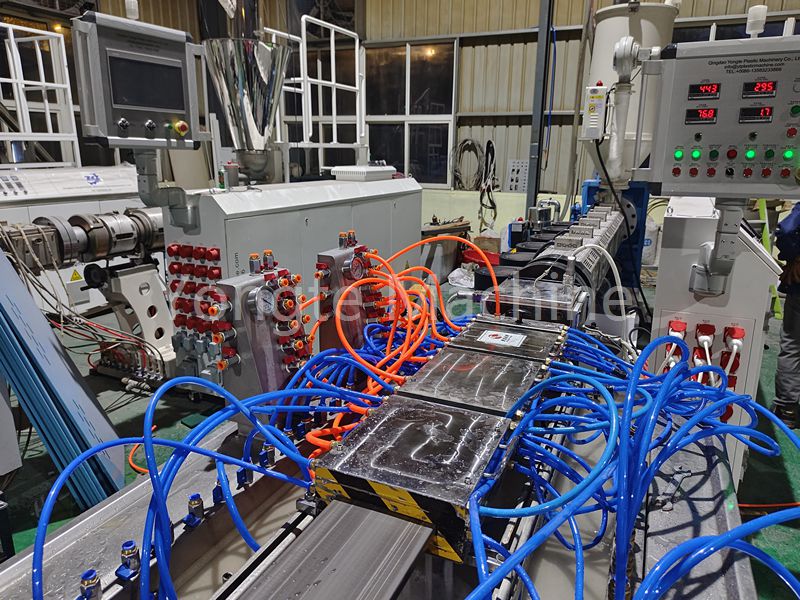

2, Plastic lumber profile mold: the mold is specially designed for making solid lumber planks from recycled PP/PE plastic, it adopts to vacuum calibration and water cooling to ensure the product shape without deformation and fast production speed.

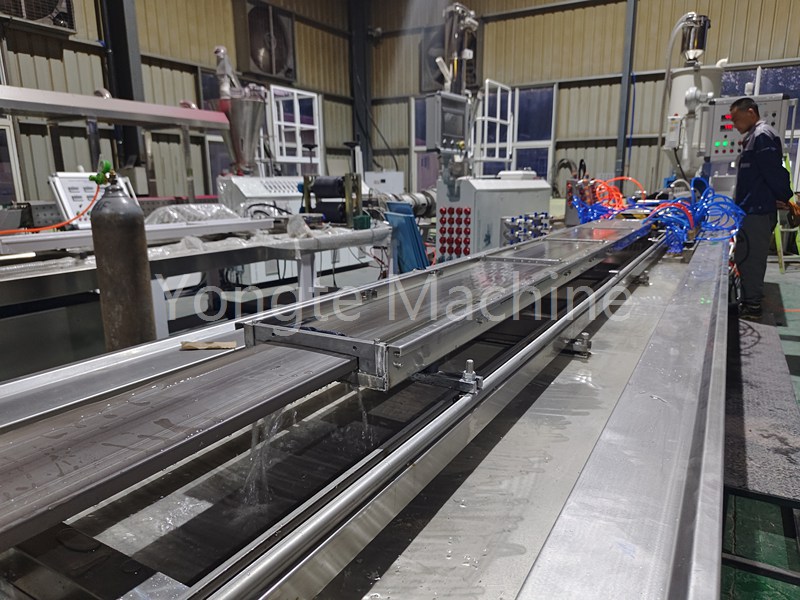

3, Cooling system: it is made by 304 stainless steel, the length can be 6-12 meters as per customer's needs, it adopts motor drived adjustment for easy operation and maintenance.

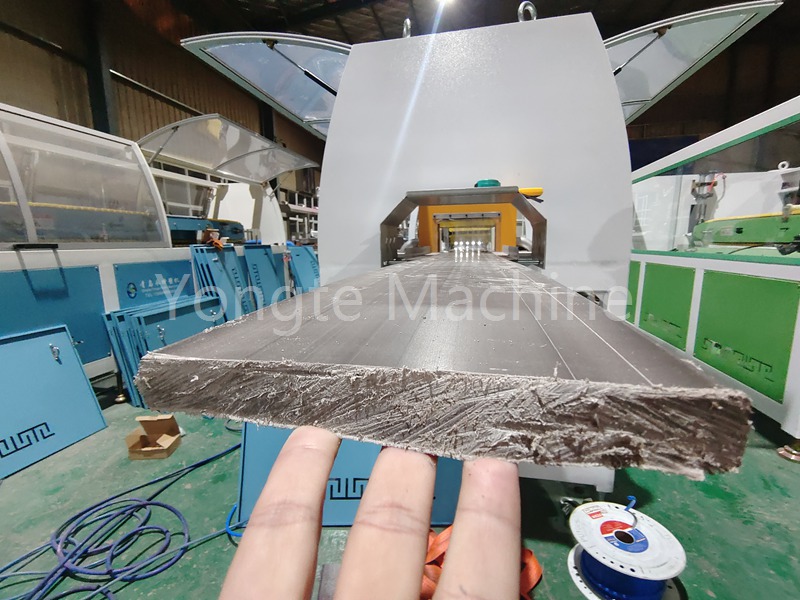

4, Pull off machine: 2400mm length effective pull off to ensure the stably and continously production of plastic lumber, the rubber blocks are designed with tyre texture to ensure the pull off force, servo motor driven is good for precision speed adjustment. double stage reducer to ensure the haul off force without sliping.

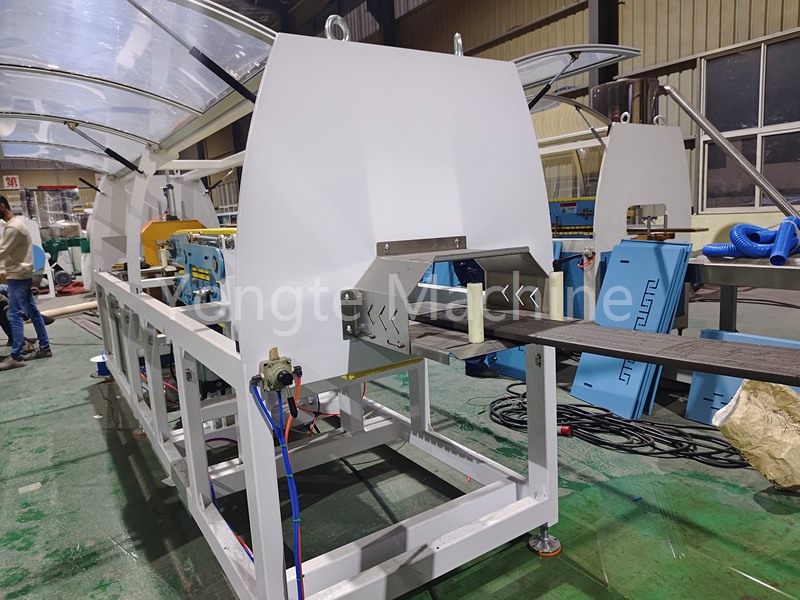

5, Automatic cutting machine: it is fixed length automatic cutting system with dust collection, the length can be customized set and it will cut automatically when the length reach.

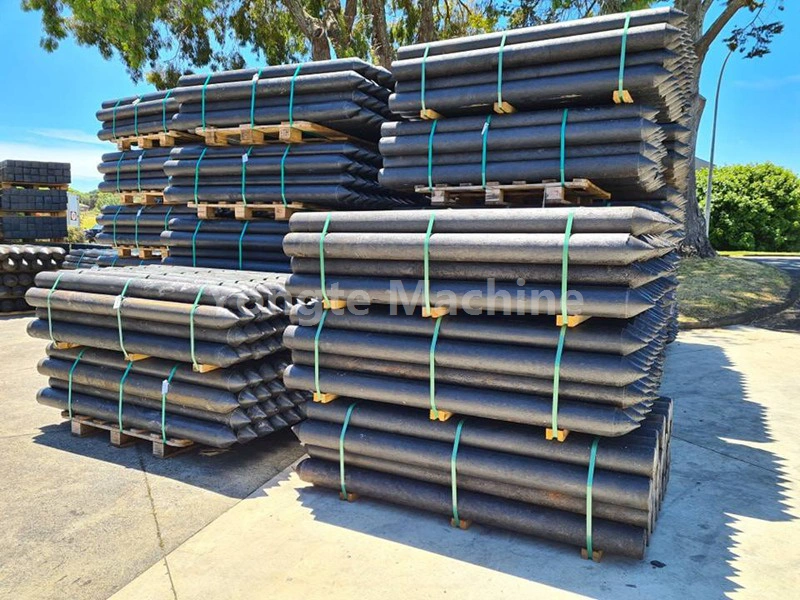

The lumber profiles made by Yongte plastic lumber machine from recycled PP/PE plastic is widely used in construction, such as fence, shader house, garden rail, pergolas, outdoor chairs and sunbeds.
