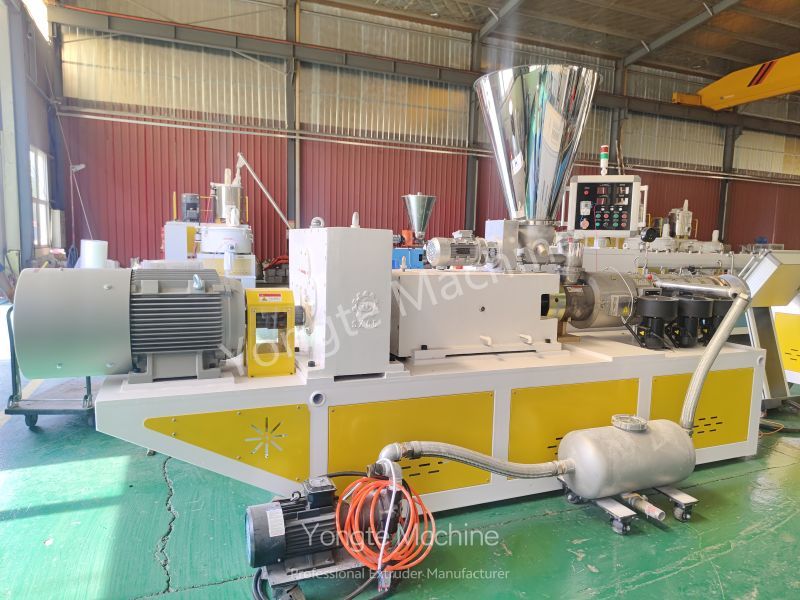

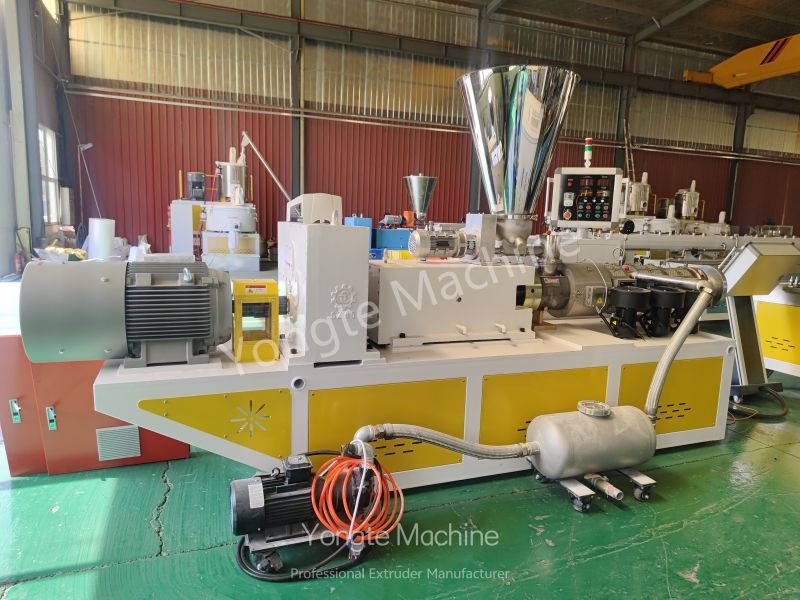

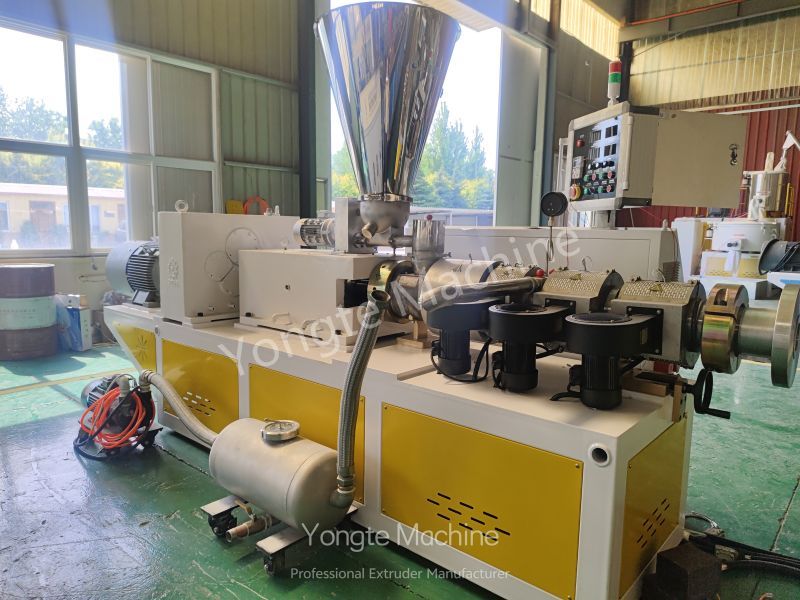

Yongte Conical Twin Screw Extruder Machine

Yongte is professional manufacturer for Conical Twin Screw Extruder Machine, we have different models of plastic extruder machines in factory stock with high quality.

Technical Parameters

Working principle of Yongte Conical Twin Screw Extruder Machine

• The screw rotates to push the material: the two conical screws rotate in the same direction in the barrel, so that the material moves along the axial direction of the screw under the push of the screw. At the same time, due to the conical structure of the screw, the material will also be subjected to radial extrusion force during the movement.
• Shearing and mixing effect: During the rotation of the screw, the material will be sheared by the screw thread, which will crush, disperse and mix the material to make the plasticization of the material more uniform. In addition, different parts of the screw are designed with different thread structures and parameters, which further enhances the shearing and mixing effects on the material.
• Heating and cooling control: The barrel is usually equipped with a cast aluminum heater to heat the material to the required plasticizing temperature. At the same time, in order to accurately control the temperature, a cooling fan or oil cooling system is also configured to prevent overheating of the material and ensure a stable plasticizing process.

Structural composition

Transmission part:

Usually driven by a new variable frequency motor or DC motor, the power is transmitted to the screw through a reduction box and coupling, etc., to ensure the smooth operation of the equipment and efficient torque transmission, and can achieve stepless and smooth speed regulation, high precision and energy saving.

Extrusion part

1. Feeding device: Generally equipped with a high-precision, wide speed regulation, and forced quantitative feeding system, which can accurately control the amount of material added according to production needs and ensure the stability of the extrusion process.
2. crew: It is the core component of the conical twin-screw extruder. Its diameter gradually decreases from the feed end to the discharge end, and the depth of the screw groove also changes accordingly. It has a large feeding amount and a long material residence time, which is conducive to the plasticization and extrusion of the material.
3. Barrel: It is used to accommodate the screw and the material. The flow channel of the material is formed between the inner wall of the barrel and the screw. The barrel is equipped with a heating and cooling device to control the temperature of the material.
4. Heating and cooling system: including cast aluminum heater, cooling fan or oil cooling system, etc., which are precisely controlled by intelligent dual-display digital temperature controller to plasticize and extrude materials within the appropriate temperature range with small temperature fluctuations.
5. Vacuum exhaust device: It can remove moisture, volatiles and air from the material, improve the quality of the product, and reduce defects such as bubbles and silver streaks.

Features of Yongte Conical Twin Screw Extruder Machine

• Good plasticizing and mixing effect: The soft plasticizing concept runs through the screw design, which can make the material plasticize and extrude well at a lower temperature, and the plasticizing and mixing are uniform, with stable quality, which can effectively avoid overheating and decomposition of the material, and is suitable for processing temperature-sensitive and shear-sensitive materials.
• High output: The special structure of the screw allows a large feed volume, and the material stays in the screw for a long time, with high extrusion efficiency, and can achieve a high output.
• Wide adaptability: It can process various thermoplastics, especially rigid polyvinyl chloride powder, and can also complete the modification and powder granulation process of various plastics. With the corresponding molding head mold and auxiliary machines, it can extrude into a variety of plastic products such as tubes, plates, sheets, rods, films and profiles.
• Long service life: The screw and barrel are made of high-quality materials, and after special heat treatment and surface treatment processes, they have high hardness, wear resistance and corrosion resistance. In addition, the transmission part and structure of the equipment are reasonably designed, stable in operation, and reduce the wear of parts, thereby extending the service life of the equipment.
•


Application field

• Pipe production: It is one of the main equipment for producing PVC pipes. It can directly extrude PVC powder into pipes of various specifications, such as water supply pipes, drainage pipes, threading pipes, etc.
• Plate and sheet production: It can be used to produce PVC plates and sheets, which are widely used in architectural decoration, furniture manufacturing, advertising display and other fields.
• Special profile production: can extrude various complex profiles, such as door and window profiles, automotive decorative profiles, etc., to meet the needs of different industries.
• Plastic modification and granulation: used to modify various plastics, such as adding fillers, toughening agents, flame retardants, etc., to improve the performance of plastics. At the same time, plastic powder can also be made into granules for subsequent processing and use.
