Yongte PPR Pipe Extruder - High Efficiency with Competitive Cost

Yongte CE certified PPR Pipe Extruder is  high-performance, heavy-duty core equipment for modern plastic pipe manufacturing. With years of expertise and advanced technology, Yongte has established itself as a leading supplier in the industry, offering top-notch PPR pipe extruders that meet the diverse needs of global customers. Our machines are known for their reliability, durability, and exceptional performance, ensuring efficient production processes and high-quality output for plastic pipe manufacturers.

Core Advantages

Our PPR pipe extruders are engineered with a dual focus on high efficiency and cost-effectiveness, precisely catering to the evolving demands of modern pipe manufacturing. Featuring advanced screw designs and optimized barrel configurations, these extruders streamline melting and plasticization processes, achieving higher output rates while reducing energy consumption by up to 15% compared to standard models. This not only cuts production costs but also boosts overall productivity, enabling manufacturers to respond more agilely to fluctuating market demands. Moreover, our machines integrate intelligent control systems that enable real-time monitoring and precise adjustment of core production parameters—including temperature, pressure, and extrusion speed. These systems ensure consistent product quality throughout the manufacturing cycle, minimizing material waste and rework rates by over 20%. The intuitive user interface simplifies operation, reducing training time for operators and allowing seamless adaptation to changing production requirements. Beyond technical performance, Yongte’s PPR pipe extruders are built for long-term reliability. We utilize high-grade alloy materials and precision-machined components that withstand the rigors of 24/7 continuous operation, ensuring minimal unplanned downtime and extending service life by an average of 30% compared to industry peers. This commitment to durability translates into lower maintenance costs and a faster return on investment for our customers. With a global footprint spanning 50+ countries and a reputation for engineering excellence, Yongte continues to innovate its PPR pipe extrusion technology. We collaborate closely with customers to understand their unique operational challenges and deliver customized solutions—from machine optimization to line integration—that drive sustainable growth in the competitive plastic pipe market.

Technical Parameters

Model	16-63mm	20-110mm	75-160mm
Pipe diameter (mm)	16-63	20-110	75-160
Extruder model	SJ65/33	SJ65/33	SJ75/33
Extrusion capacity (kg/h)	120-150	150-180	200-250
Main motor power	37kW	45kw	55kw
Production line speed	3-12m/min	3-12m/min	2-10m/min
Total installed power	70 kw	90 kw	110 kw
Power consumption	40 kw	50 kw	60 kw
Vacuum calibration tank	9m,	9m	9m
Spraying cooling tank	9m	9m	9m
Cutting precision	±1mm	±1mm	±1mm
Certification	CE	CE	CE
Machine length	22-28m	30m	32m

Detailed Pictures

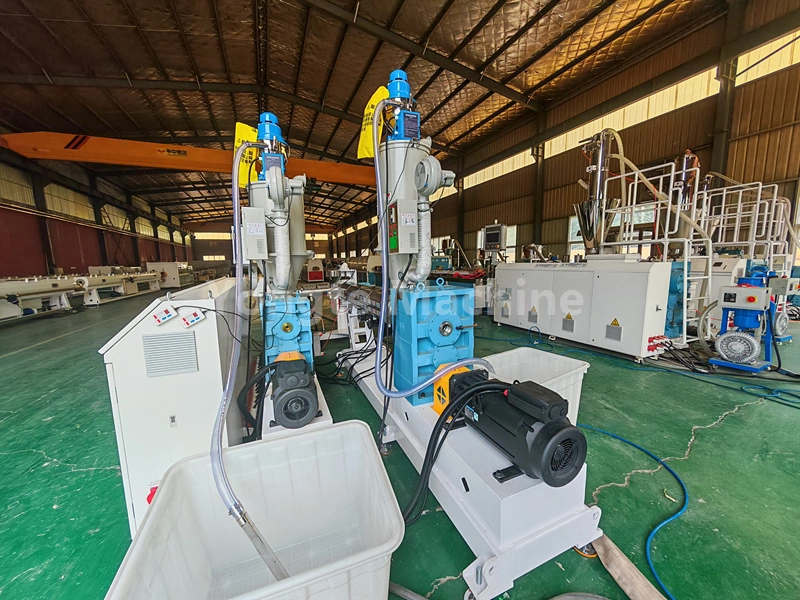

1. Raw Material Processing System: Handles pretreatment (drying, mixing, homogenization) of diverse PPR raw materials to eliminate moisture and ensure uniform material consistency—laying the foundation for defect-free pipe production.

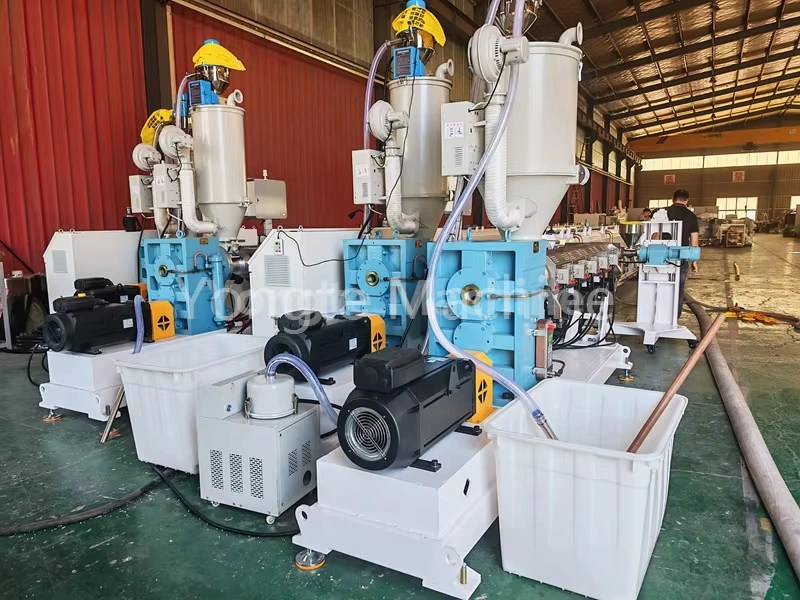

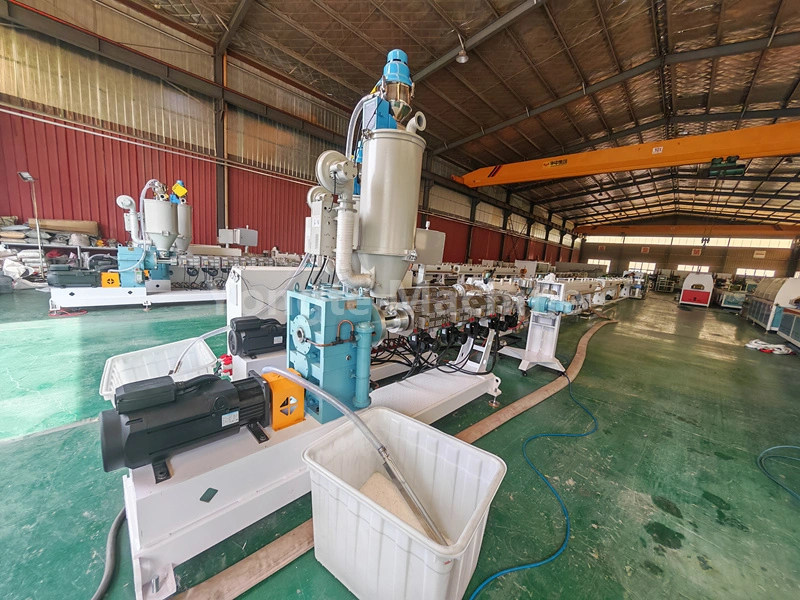

2. Extrusion System: The system for multi layer PPR pipe production comprises three extruders, along with their feeding and control systems. One extruder is for the middle layer of PPR plastic pipes, the second for the inner and outer layers, and the third for the pipe's marking line.

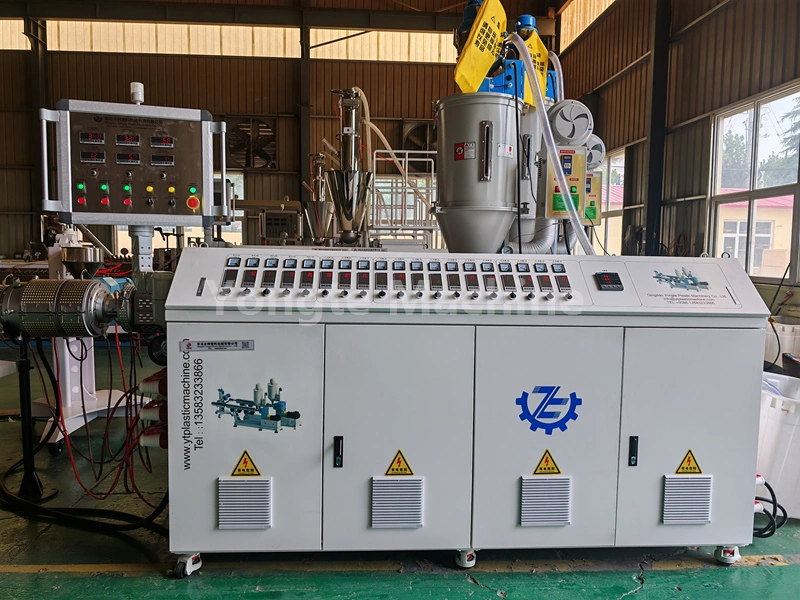

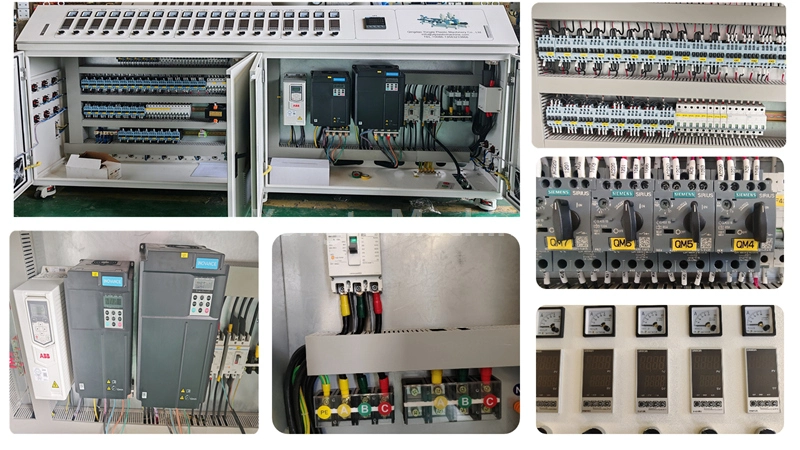

3. Electrical Control System:  Equip with ABB inverter, Innovance servo motor, Omron temperature controller, Siemens contractors and other high quality electric parts, the control system precisely regulates temperature, pressure, extrusion speed, and traction rate across the entire line. This real-time monitoring and adjustment ensures 24/7 stable operation and minimizes production downtime.

4. PPR Pipe Mold: The custom-designed die head features precision-engineered flow channels that dictate the bonding quality of the three-layer structure and the exact cross-sectional shape of the pipe. Its tailored design guarantees tight layer adhesion and uniform thickness distribution across the pipe wall.

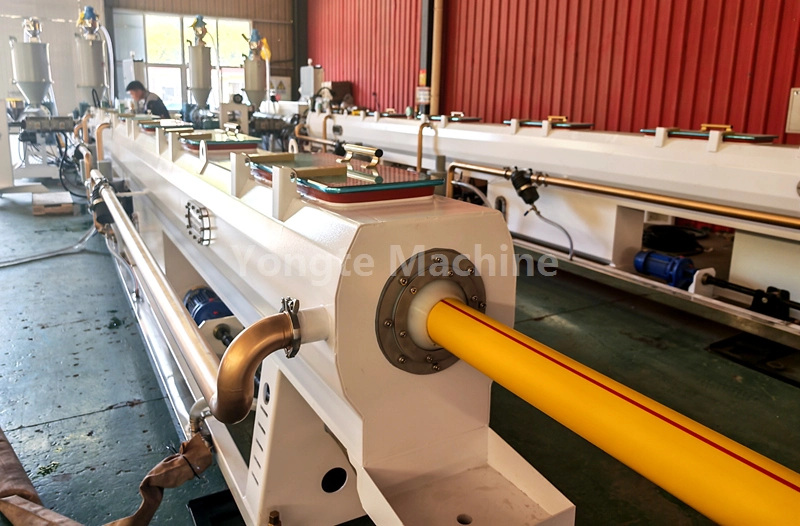

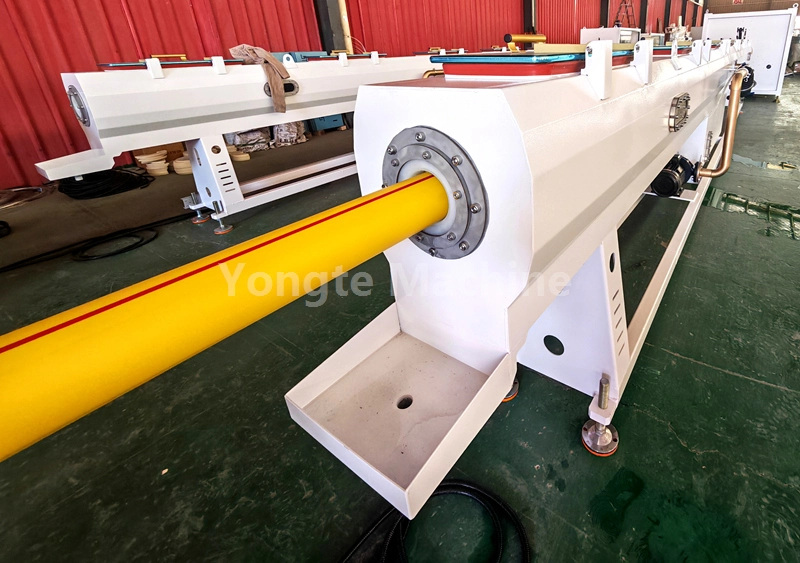

5. Vacuum calibration and Cooling System: Combines a vacuum sizing sleeve and high-efficiency cooling water tank to rapidly cool and shape the pipe blank. This step locks in dimensional accuracy (±0.1mm tolerance) and delivers a smooth, blemish-free surface finish.

5. Meter Counting Encoder: This device works in tandem with the cutting machine to achieve automatic fixed-length cutting of pipes.

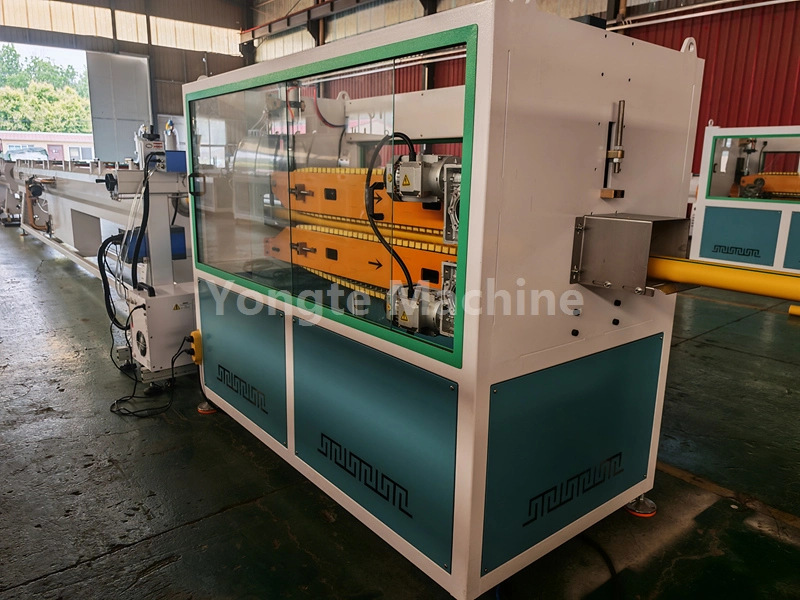

6. Traction Machine: We configure caterpillar units according to pipe diameter (e.g., double-caterpillar, triple-caterpillar, four-caterpillar, and fixed-caterpillar types).Pulls the formed pipe from the mold at a constant speed to precisely control wall thickness and overall length—critical for meeting strict industry size standards.

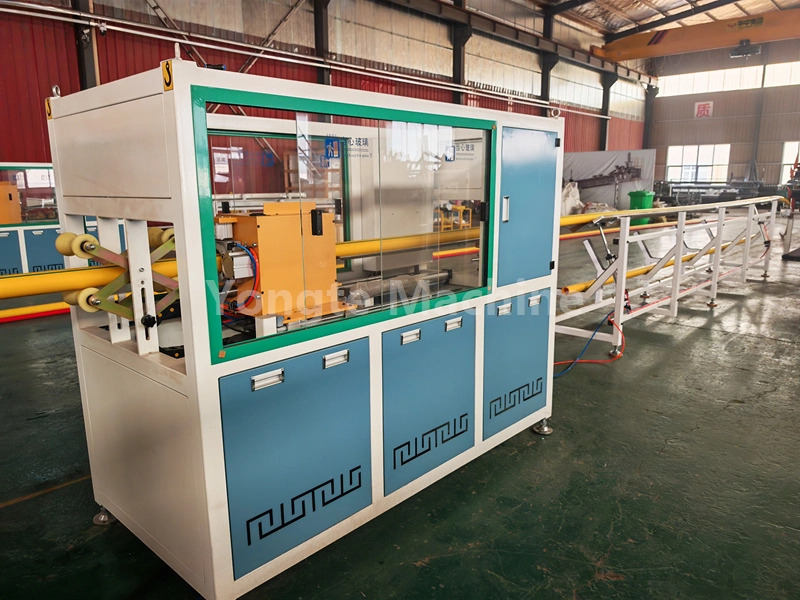

7. Automatic Cutting Machine: Equipped with touch screen programmable control, this dust-free and chip-free cutting machine ensures clean and precise cuts.Automatically cuts pipes to preset lengths (adjustable via touchscreen) with clean, burr-free edges, eliminating post-processing needs.

7. High-Quality PPR Pipes (End Products): Pipes produced by this machine feature smooth inner/outer walls, uniform thickness, and excellent mechanical performance.

Core Advantages

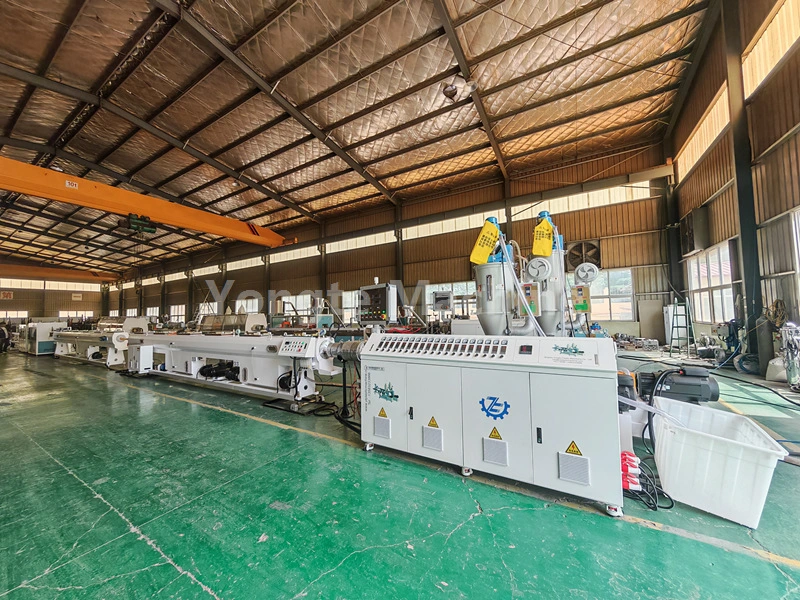

In practical production, Yongte’s PPR Pipe Extruder fully leverages the advantages of advanced co-extrusion technology. Our R&D team customizes raw material formulations for each extruder based on specific market demands, while precisely controlling temperature, pressure, and extrusion speed to ensure seamless compounding of three-layer PPR materials within the mold. Factory testing confirms that the produced pipes not only deliver exceptional physical properties but also achieve industry-leading standards in surface finish and dimensional precision. The mature application of three-layer PPR pipe co-extrusion technology in our production lines serves as a valuable benchmark for peers in the industry.

Product Applications

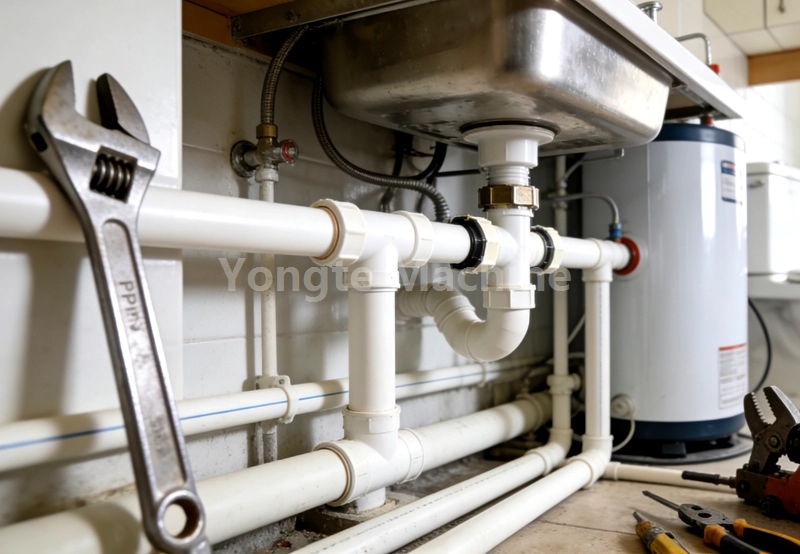

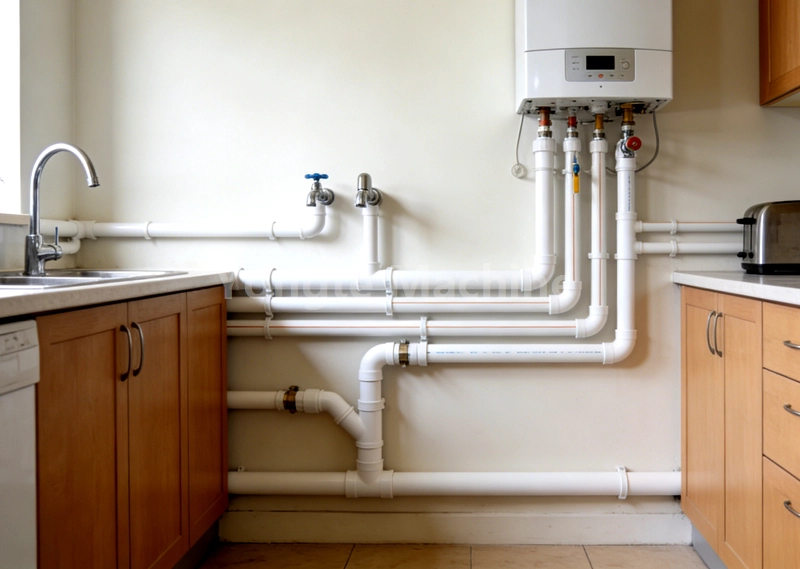

PPR pipes, produced by Yongte's PPR Pipe Extruder, are known for their exquisite appearance and high brand recognition, aiding our clients in enhancing product competitiveness and expanding market share. With the advantages of being environmentally friendly, durable, non-toxic, and odorless, as well as possessing high-temperature resistance, corrosion resistance, excellent thermal insulation properties, and ease of installation, PPR pipes are increasingly replacing traditional galvanized and copper pipes in global water supply, drainage, heating, and industrial fluid transportation fields.
