Yongte is professional manufacturer for Plastic Composite with Wood WPC Granules Machine,it is used for making WPC granules from recycled PP/PE plastic and 60-70% wood powder
Yongte Pelletizer Machine for Plastic Wood Composition Compound Pelletizing Machine is used for making WPC granules from 25-30% recycled PP/PE plastic wastage and 60-70% Wood powder made by wood wastage. it uses high-tech means to efficiently process waste wood, sawdust and other organic materials into a new, high value-added material - wood plastic pellets. This pellet not only has the natural texture of wood, but also has the durability and processability of plastic. More importantly, its production process is completely green and environmentally friendly, and does not produce any harmful substances. the WPC granules made by this WPC pelletizing machine can be widely used for extrusion and injected molding, such as WPC decking, WPC beam, WPC wall panel, WPC post, WPC caps WPC blocks...
|
Model |
SH75 |
| Certificate | CE certified |
| Power consumption Grade | 1st Grade with energy saving design |
|
Extruder |
Parallel double screw extruder |
|
Capacity |
400-600 kg/h |
|
Main mlotor power |
90 kw |
|
screw diameter |
75mm |
| L/D Ratio | 40:1 or 48:1 |
|
Inverter control |
ABB brand |
|
PLC control |
Siemens brand |
|
Temperature controller |
Omron brand |
|
Material |
Wood and Plastic composite |
|
Wood percentage |
70% |
|
Plastic type |
PP/PE plastic |

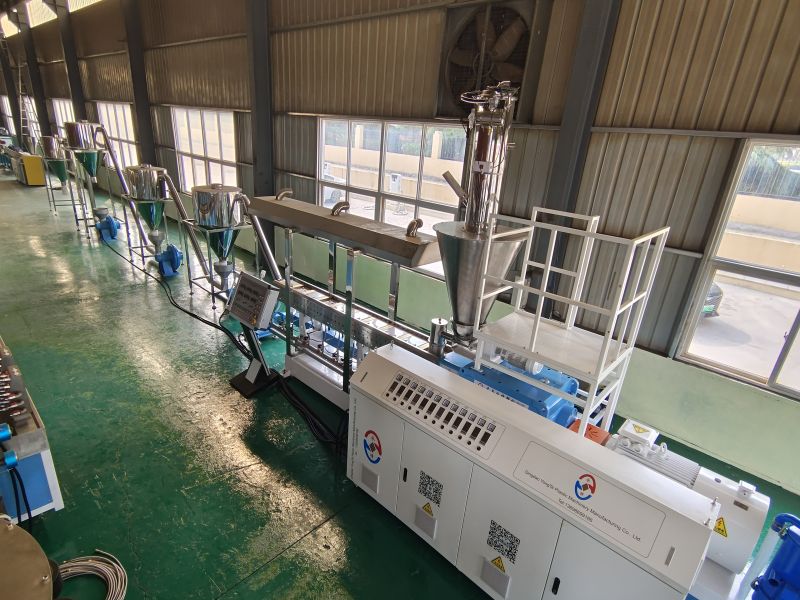

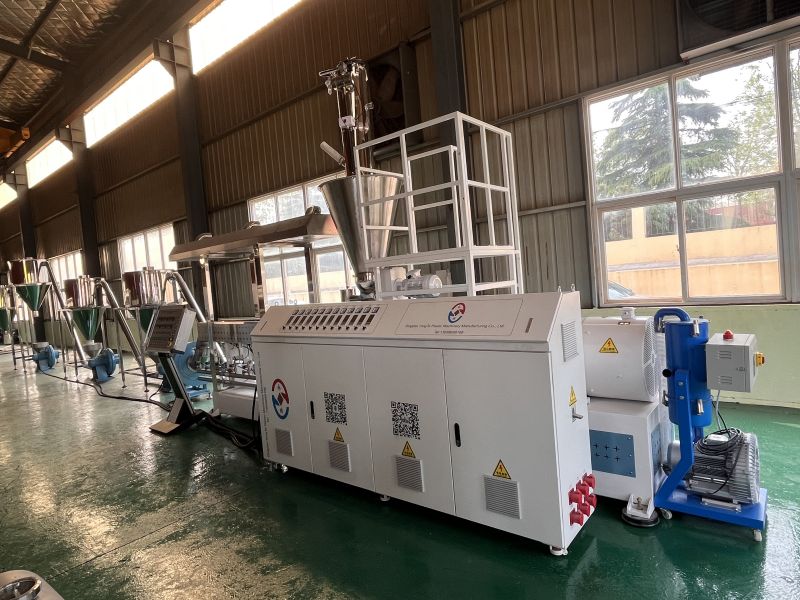

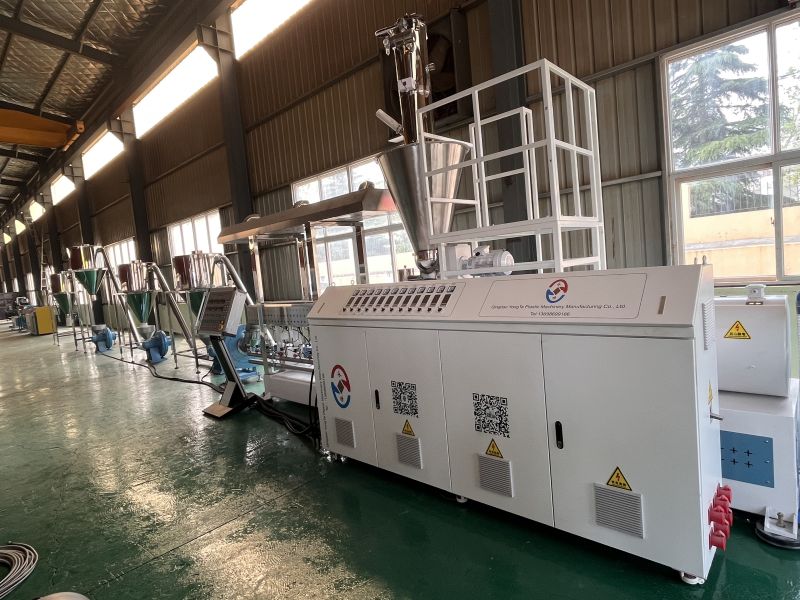

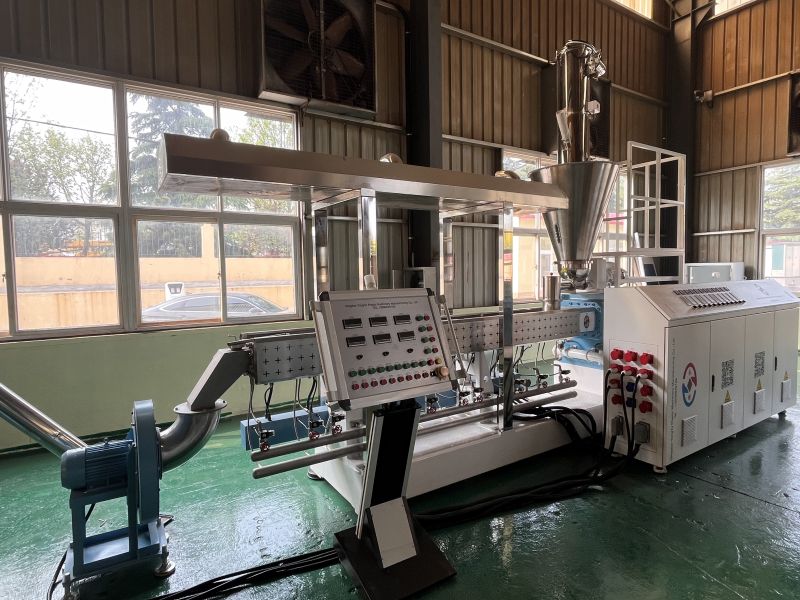

Yongte high effective WPC pelletizing machine including feeding system, parallel double screw extrusion system, hot pelletizing system or fast crushing system, blowing cooling system and material storage system
High quality driving system: equip with high effective servo motor and stronge gearbox system, it can save power with high extrusion capacity
automatic feeding system: screw feeder and vacuum feeder are optional, automatic feeding systsem. the feeding hopper is fully made by 304 stainless steel

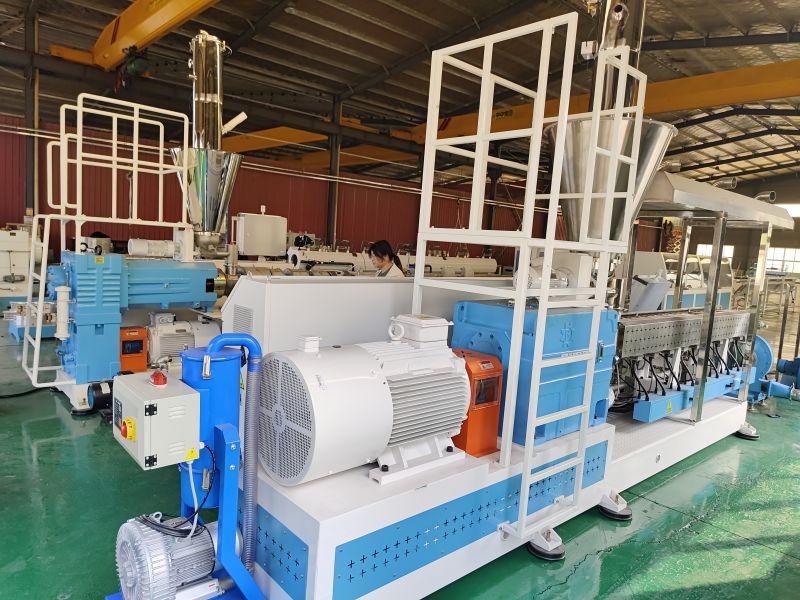

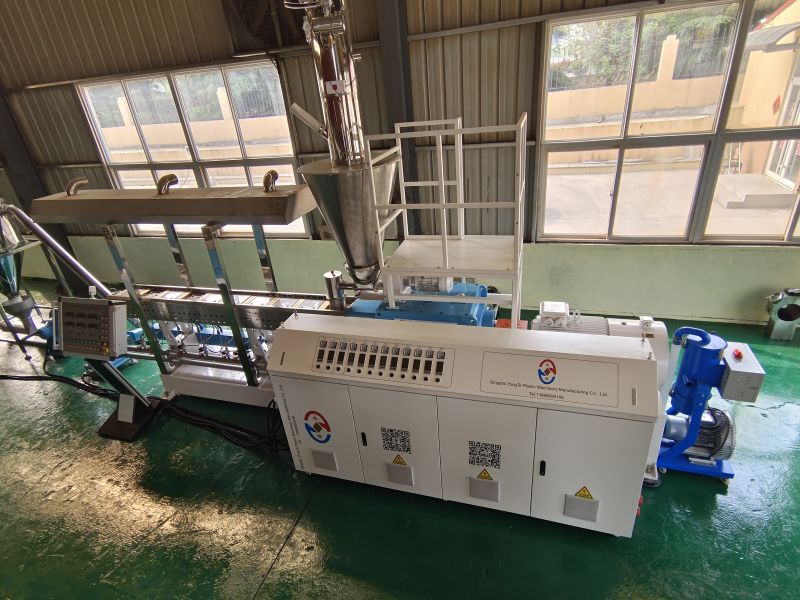

Parallel double screw extrusion system : high effective extrusion system with output of 600-800kg/hour.
it equip with special designed screw with wearing material and screw shape which can work for compounding 25-30% recycled PP PE plastic with 70% wood powder.

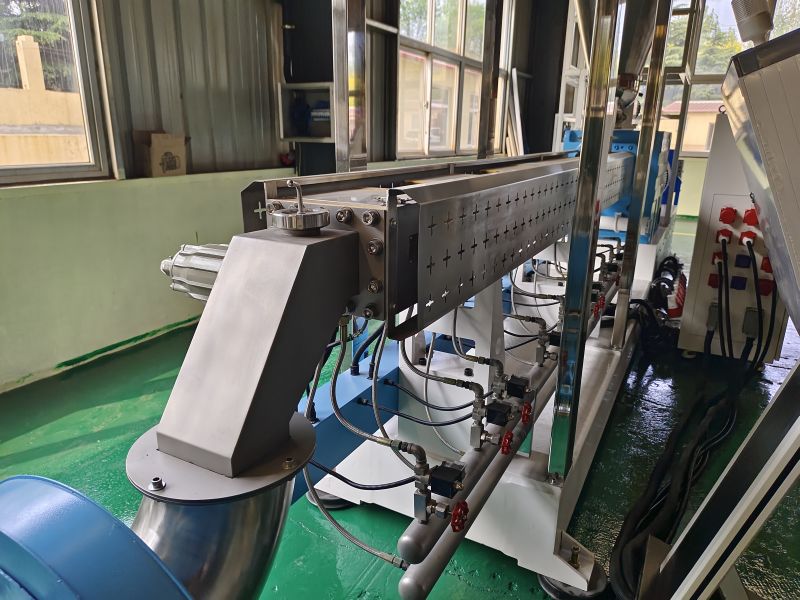

the extruder equip with auto aluminum heater heating and water cooling system controlled by advanced temperature controller,
Hot pelletizing system or fast crushing system: visionable hot pelletizing system with high output crushing equipment is specially designed for WPC matrial

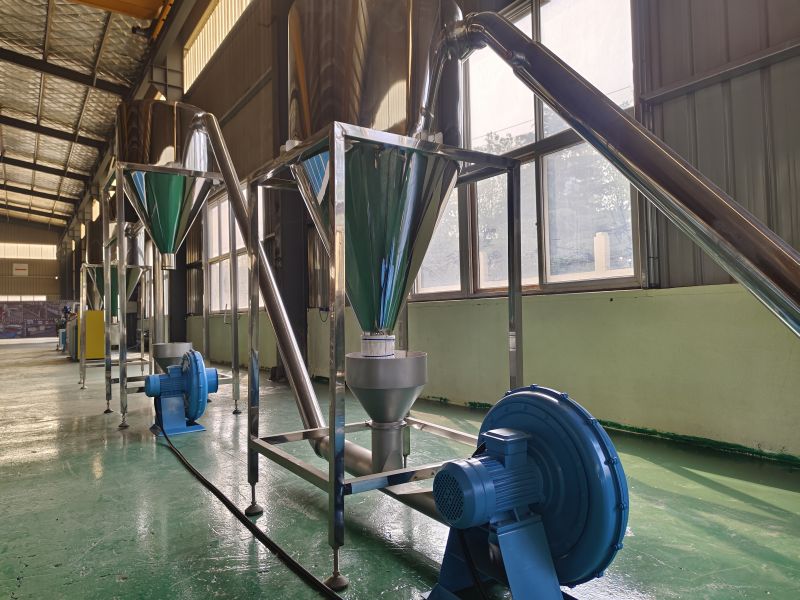

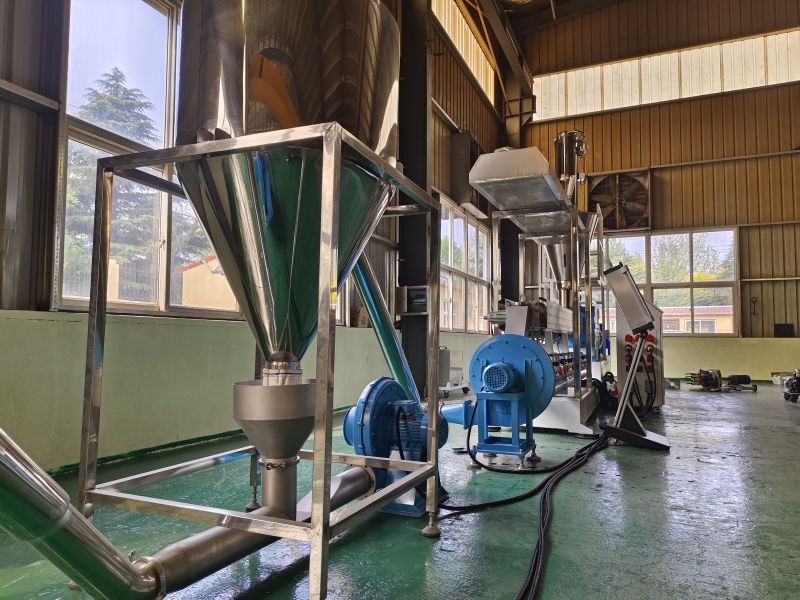

Blowing cooling system: three stages blowing cooling, the blowing pipes and tanks are fully made by 304 stainless steel. the conveyor pipes are double layer with water cooling in jacket.
material storage system: all the convey pipes and storage bins are made by 304 stainless steel

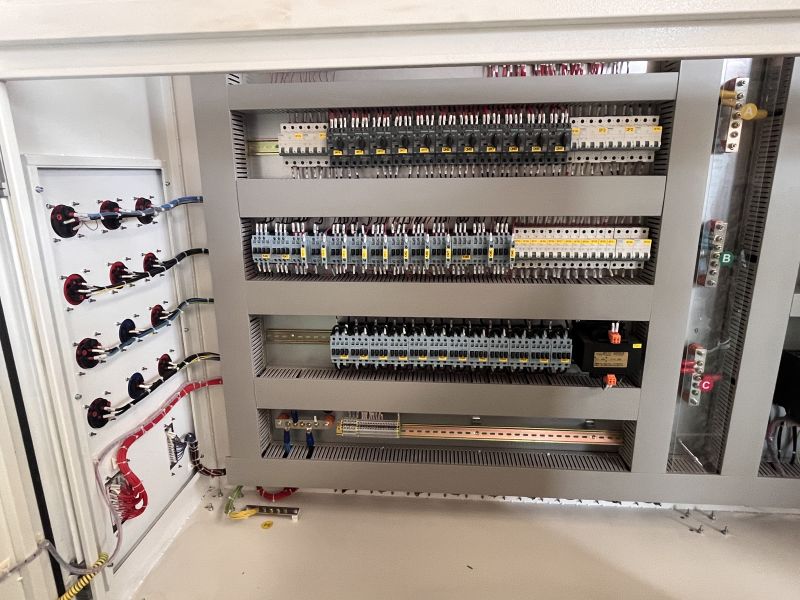

Electricity control system: Servo controller or ABB inverter , Siemens contractor, Omron temperature controller, all the wires are marked clear.

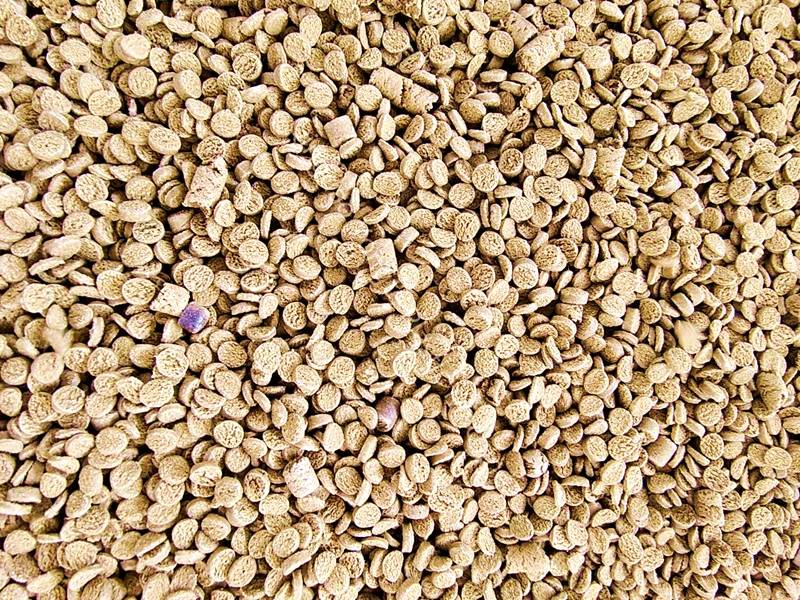

WPC granules made by Yongte WPC pelletizing machine: good plastization effect, uniform quality, high output
1. High efficient: WPC pelletizing equipment adopts advanced processing technology, which can quickly process wood into particles and improve production efficiency.
2. Energy saving: The equipment adopts energy-saving design to reduce energy consumption and production costs.
3. Environmental protection: During the production process, wood granulation equipment effectively reduces dust, noise and other pollution, and meets environmental protection requirements.
4. Good service: Provide professional pre-sales, sales, and after-sales services to solve user problems during use.
5. Good quality: The equipment is manufactured using high-quality materials and processes to ensure product quality and durability.
According to the characteristics of wood granulation equipment, we provide the following after-sales service and support:
1. Equipment installation and debugging: Provide users with equipment installation and debugging services free of charge.
2. Technical training: Provide equipment operation and maintenance training to ensure that users are proficient in using the equipment.
3. Regular inspections: Regular inspections of user equipment are carried out to ensure normal operation of the equipment, and potential problems are discovered and solved in a timely manner.
4. Maintenance and replacement: Provide equipment maintenance and parts replacement services to ensure long-term stable operation of the equipment.
5. Customer feedback: Collect user feedback, continue to optimize products and services, and meet user needs.
Wood plastic composite WPC pelletizing extrusion equipment has great application potential. First of all, in the construction field, we can use wood-plastic particles to make environmentally friendly building materials, such as wood-plastic doors, windows, floors, etc. These products not only have beautiful appearance, but also have excellent performance, fully complying with the concept of modern green building. Secondly, in the field of packaging, wood-plastic particles can also be processed into various environmentally friendly packaging materials, such as wood-plastic pallets, wood-plastic boxes, etc. These products are not only highly reusable, but also can effectively reduce packaging costs and improve the competitiveness of enterprises.
