Irrigation Pipe Extruder

Yongte Irrigation Pipe Extruder - New water-saving irrigation solutions

Product Description:

Yongte is a professional manufacturer in China for Irrigation Pipe Extruders—we take old tires and turn them into rubber infiltration pipes, which we call rubber nano-tubes. After tons of R&D and testing, we’ve nailed the formula for making these nano-rubber tubes. They have tiny, evenly spaced pores that link up, so water flows through smoothly and filters out gunk super well. You’ll see them used all the time in farm irrigation, underground drainage, and pond oxygen systems. This machine is totally automated, saves energy, runs steady, has an easy-to-use design, works with all kinds of materials (even recycled rubber powder!), is simple to operate and fix, and makes tubes with the same consistent nano-pore structure every time. The nano-pore structure keeps water flowing perfectly while stopping clogs, making these pipes ideal for sustainable farming and eco-friendly water management solutions.

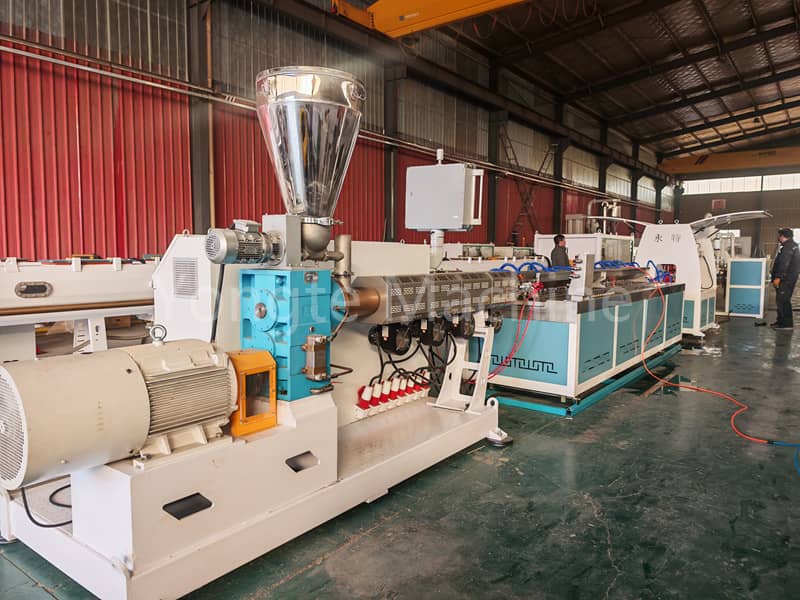

The Yongte rubber Irrigation Pipe Extruder works super efficiently, turning scrap rubber material into high-performance rubber infiltration pipes in one smooth process. Its advanced automation system cuts down on manual work, lowering labor costs and mistakes while keeping production consistent. The energy-saving tech built into the machine reduces power use by up to 30% compared to old methods, which fits right with global sustainability goals. The modular design lets you switch materials and do maintenance quickly, so there’s minimal downtime between production runs. It works with recycled rubber powder too—not only does that cut down on waste, but it also lowers raw material costs, making it a budget-friendly option for big agricultural and environmental projects. Every pipe has the same consistent nano-pore structure, so it performs reliably whether you use it in precision irrigation systems, underground drainage networks, or aquaculture oxygen setups. It’s a tough, cost-effective tool for farmers and environmental engineers tackling modern water management challenges.

Technical Specifications

Parameter	Specification
Machine name	Yongte Rubber Irrigation Pipe Extruder
Material	Rubber powder, PE granules, Chemical additives
Product	Irrigation pipe, micro nano pipe, seepage pipe, soaker pipe, oxygen pipe
Pipe Diameter Range	9-32mm (adjustable)
Production Speed	3-10 m/min (adjustable)
Output Capacity	80-120kg/h
Extruder Model	SJ65 Single screw extruder
Main motor power	22kw Innovance servo motor with speed control
winder	Auto winder, single position or double position optional
Installation power	Around 60kw (including heating power and auxiliary equipments)
Power consumption	Around 20kw
Machine length	16 meters

Product Details and Features:

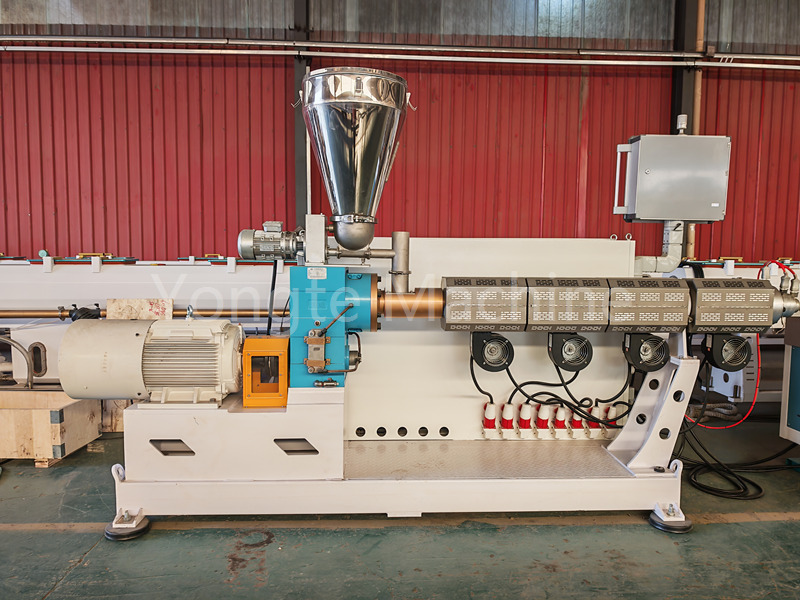

1. High-Efficiency Extrusion System:

   (1) The extruder is custom-engineered for processing recycled rubber powder and PE granule blends.

   (2) Its screw features a specialized foaming design that creates uniformly distributed nanoscale pores in the rubber pipe, ensuring consistent permeability and structural integrity.

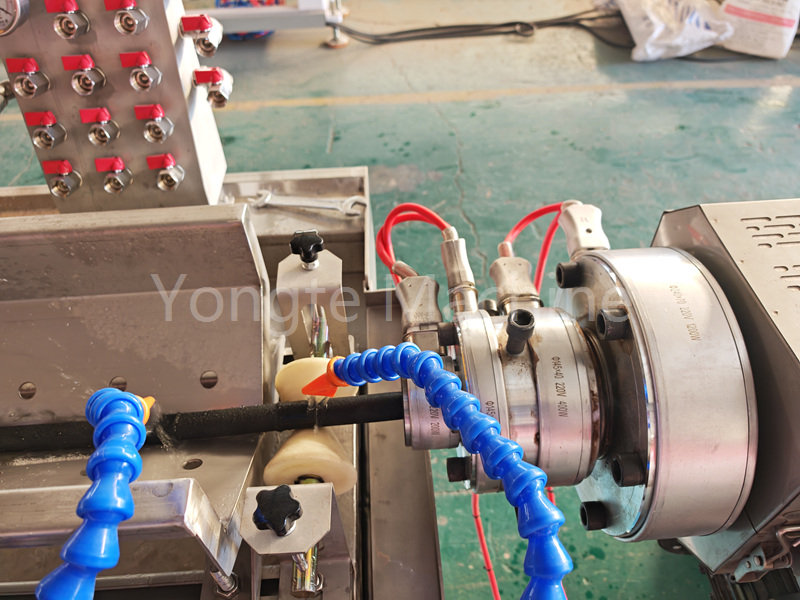

2.Rubber Irrigation Pipe Mold:

   (1) A specialized extrusion tool for the continuous production of rubber nano pipes from recycled rubber powder using nano foaming technology.

   (2) The nano holes are uniformly distributed, ensuring good foaming.

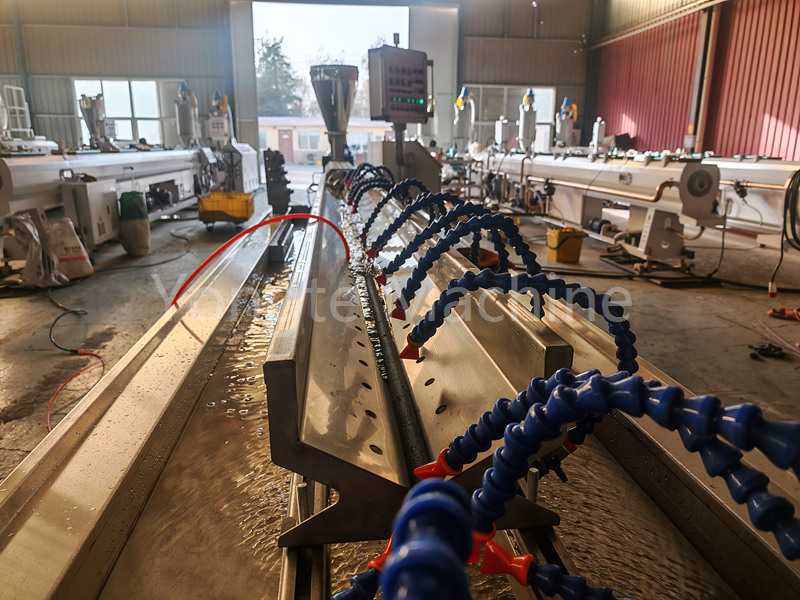

3.  Fast Cooling Tank:

  (1) Constructed entirely from 304 stainless steel

  (2) this 6-meter water cooling tank provides rapid, uniform cooling to stabilize the pipe structure and maintain dimensional accuracy post-extrusion.

4. Rubber Pipe Traction Machine:

 (1) Equipped with double belt traction

 (2) the machine ensures stable, consistent pulling of rubber pipes for continuous and stable production.

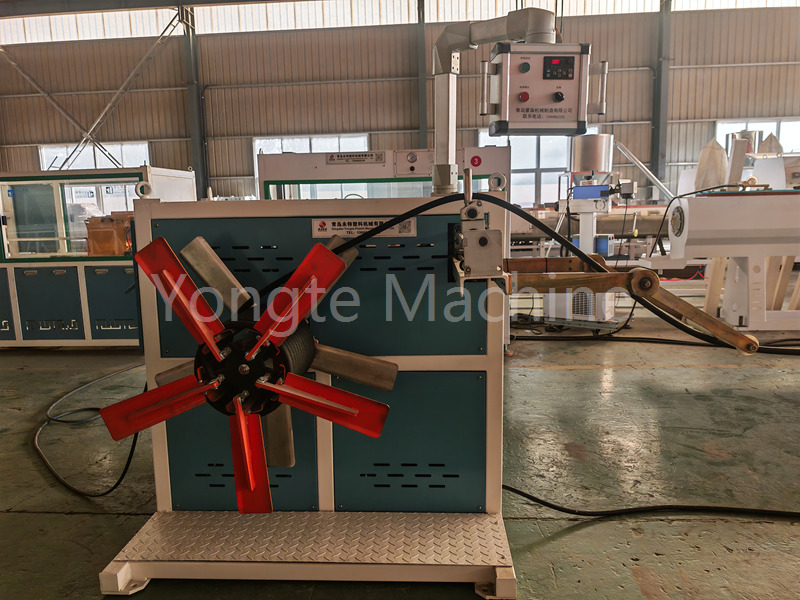

5. Rubber Pipe Winder:

   (1) An optional single-position or double-position winder with automatic tension control for consistent, damage-free coiling of rubber pipes.

   (2) The winder can coil the rubber pipes into rolls with a customized diameter and width.

   (3) Equipped with automatic cable laying and precision automatic meter-counting functions, the machine triggers an automatic alarm upon reaching the preset winding length.

6. Electric Control System:

   (1) Our electrical components employ internationally acclaimed high-quality brands, such as ABB frequency converters

   (2) Siemens and Schneider contactors

   (3) Omron temperature controllers

   (4) Siemens PLC control systems

   (5) Innovance servo motors.

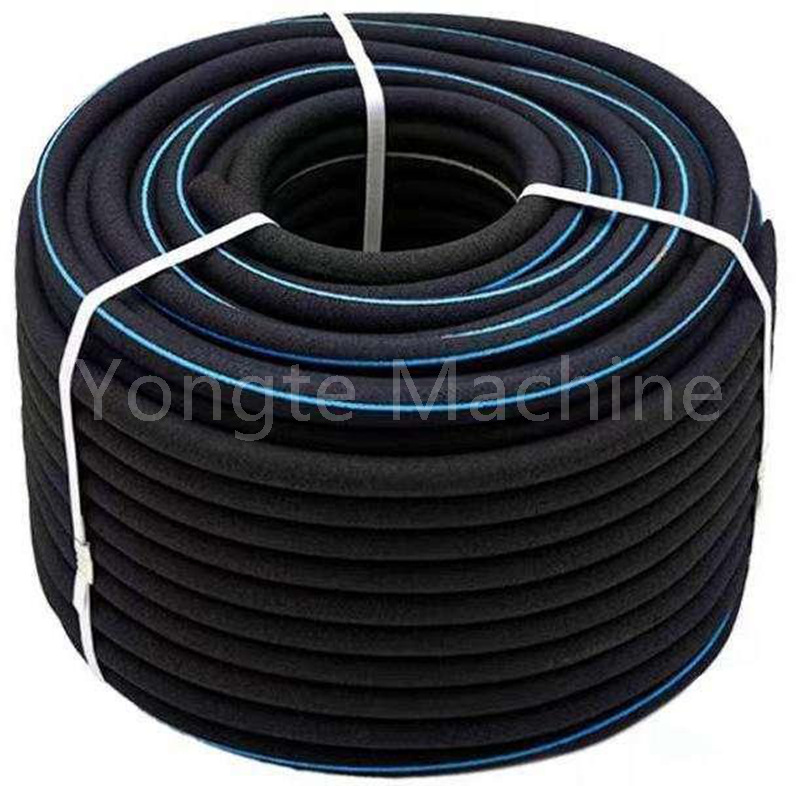

Description of Rubber seepage irrigation pipe

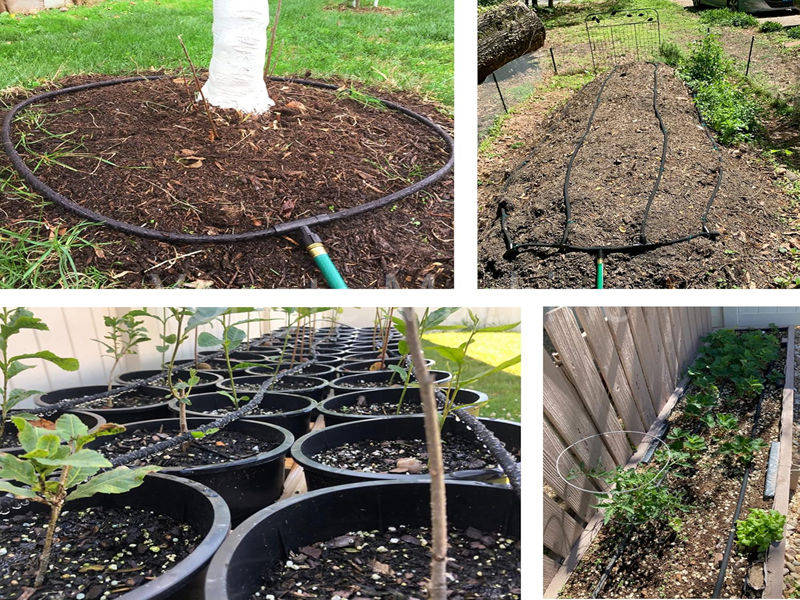

This rubber irrigation pipe is made from tough recycled rubber with tiny built-in capillaries. Once you hook it up to a water source, the water slowly seeps out through those little capillaries in the pipe wall thanks to water pressure. The best part? It’s super water-efficient! You just lay the drip pipes along where your plants are growing, and that keeps water around the roots longer—no more overwatering, and you won’t waste precious water by letting it run off underground. It works great for lawns, veggie patches, flower beds, and all sorts of places, especially for giving rows of plants that perfect, gentle watering they need.

This micro-porous water-permeable pipe is made from rubber using a cool new micro-porous extrusion foaming method—it really keeps those tiny pores from getting clogged. It’s a super precise irrigation system designed to save water while giving plants all the nutrients they need. No dead spots where water can’t reach, and it stops negative pressure suction when you turn off the water, so you won’t have that annoying clogging problem like regular drip irrigation heads. Installing it is a breeze: just hook it up to a PE pipe. When it comes to saving water, it uses only one-sixth as much as old-fashioned flood irrigation. For fertilizers, the drip system lets you put base and top-dressing fertilizers right into the water, and the slow seepage means fewer nutrients get wasted. That way, crops absorb both water and nutrients evenly, making your fertilizer work way better.

Advantages of Rubber Nano Pipe:

1. High Permeability Efficiency: The uniform nanoscale pores increase the permeability rate by 2-3 times and maintain stability over a long period.

2. Strong Anti-Clogging Ability: The nanoscale pores allow water molecules to pass through while blocking larger particles such as silt and microorganisms (similar to the "molecular sieve" effect), reducing the risk of blockage.

3. Long Service Life: Through the combination of rubber and PE materials, the service life of rubber seepage pipes can reach 10-15 years, with significantly enhanced aging resistance.

4. Low Installation and Maintenance Cost: Simple installation, plug in the connector to use, can be bent and rolled up, not prone to blockage, long maintenance-free cycles, reducing the comprehensive cost by 40%-60%.

5. Good Environmental Performance: Rubber seepage pipes can be produced from recycled waste tires and can be recycled multiple times, making them highly economical and environmentally friendly.

Application Scenarios of Rubber Nano Pipe:

1. Agricultural Water-Saving Irrigation: As underground water transmission pipes in drip irrigation and seepage irrigation systems, they can accurately control water and reduce soil salinization (nano filtration prevents sand from blocking the drippers).

2. Groundwater Remediation and Water Source Protection: Groundwater infiltration purification of contaminated sites (adsorption of heavy metals and organic matter by nanomaterials), or filtration of water from water sources.

3. Urban Rainwater Management: As permeable pipes in urban construction, they can quickly infiltrate rainwater and filter pollutants to alleviate waterlogging.

4. Sewage Treatment and Reuse: Underground infiltration treatment of industrial wastewater and domestic sewage, with nano-coating absorbing COD, heavy metals, and other pollutants.
