Permeable Irrigation Pipe Machine

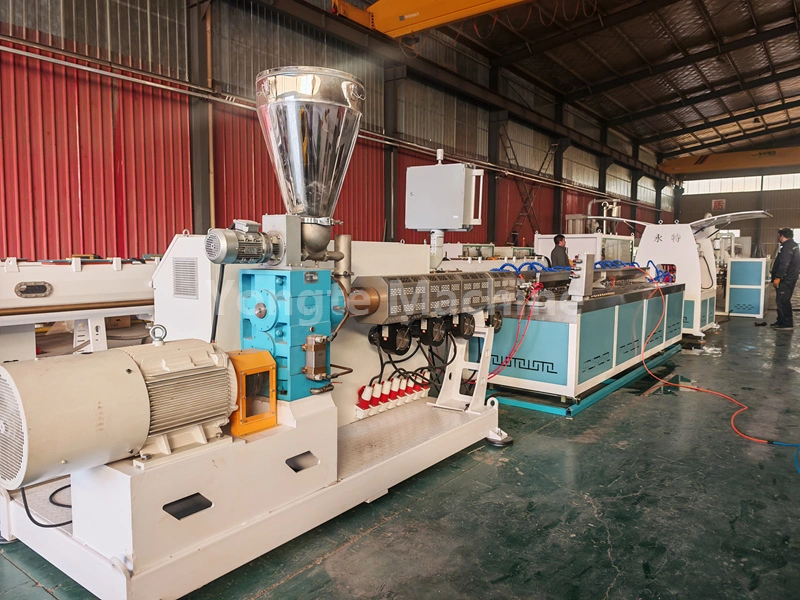

Yongte Rubber Permeable Irrigation Pipe Machine

High-Efficiency Production Line for Micro-Nano Seepage Irrigation Pipes using recycled rubber powder

Product Description:

Yongte is a leading Chinese manufacturer of Rubber Permeable Irrigation Pipe Machine. Our automated line turns recycled rubber powder into high-performance capillary seepage pipes with uniform nano pores, stable dimensions, and long service life. It saves 30% energy, reduces labor, and supports sustainable farming.

This line adopts nano foaming extrusion technology to produce micro‑capillary rubber irrigation pipes, seepage pipes, soaker hoses, and oxygenation pipes. It uses recycled rubber powder + PE granules + additives, with uniform nano pores for stable permeability, anti‑clogging, water saving, and long service life.

Core Highlights

• Pipe diameter: 9–32mm adjustable
• Output: 80–120kg/h
• Energy consumption reduced by 30%
• Service life up to 10–15 years
• CE certified, modular design for easy maintenance

Key Advantages

• High Water-Saving EfficiencyUses only 1/6 water of flood irrigation; uniform seepage avoids waterlogging & dry spots.
• Strong Anti-CloggingNano pores block silt & impurities; no negative pressure suction after shutdown.
• Long Service LifeRubber + PE compound; aging resistance; service life up to 10–15 years.
• Cost EffectiveUses recycled rubber; reduces raw material cost; maintenance cost down 40%–60%.
• Eco-FriendlyRecyclable waste tire material; multiple recycling; low carbon emission.

Technical Specifications

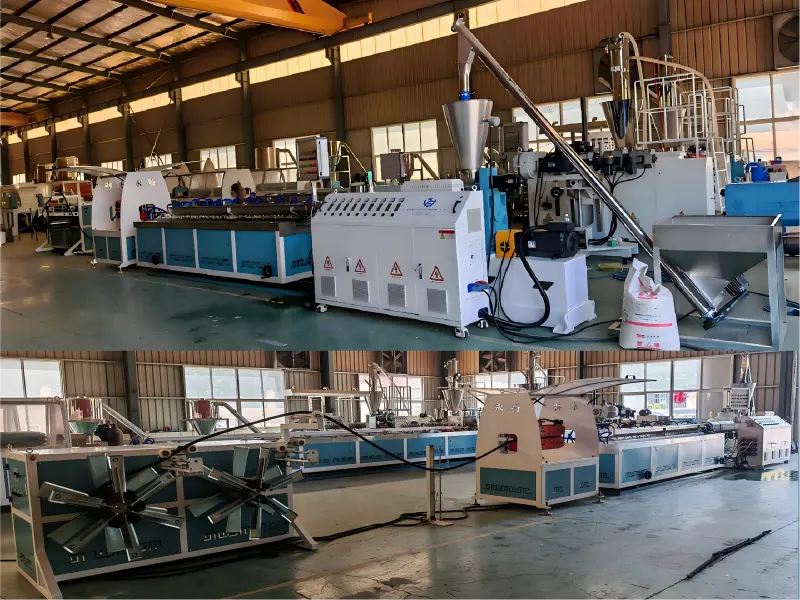

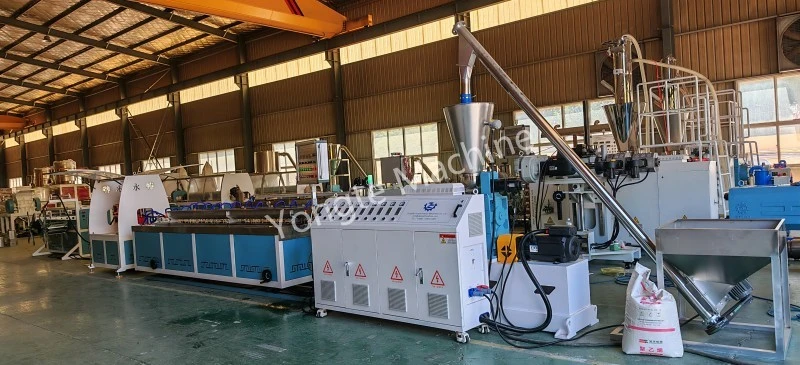

Machine Structure & Features:

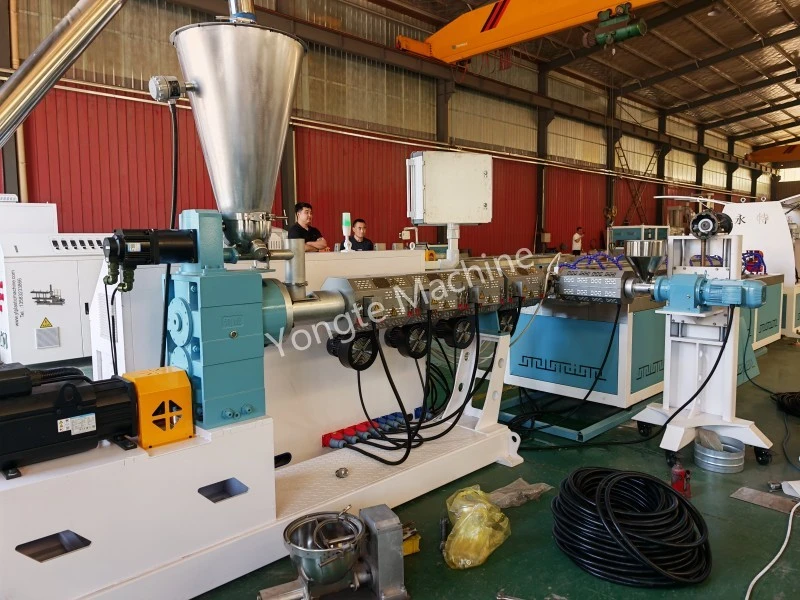

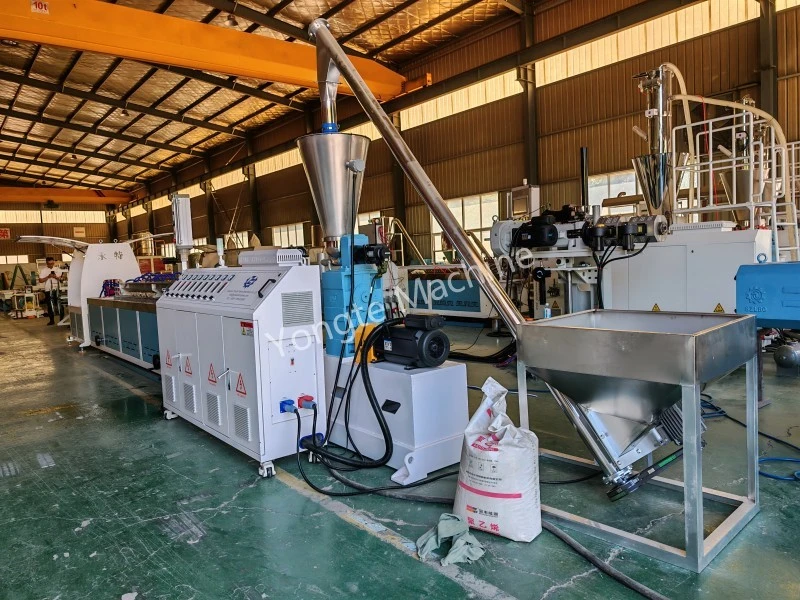

1, High-Efficiency Extruder

SJ65 single screw; specialized foaming structure; uniform nano pores; Innovance 22kW servo motor.

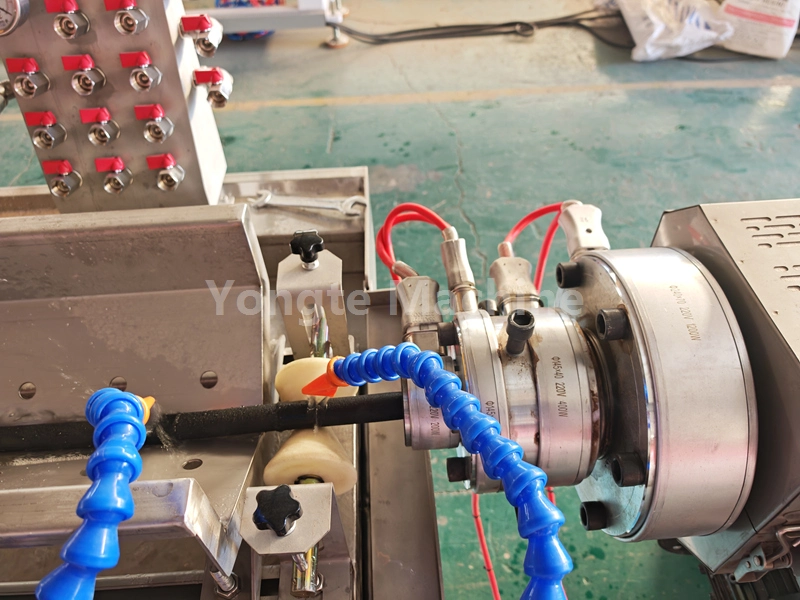

2, Specialized Extrusion Mold

Nano‑porous design; uniform foaming; stable pipe forming.

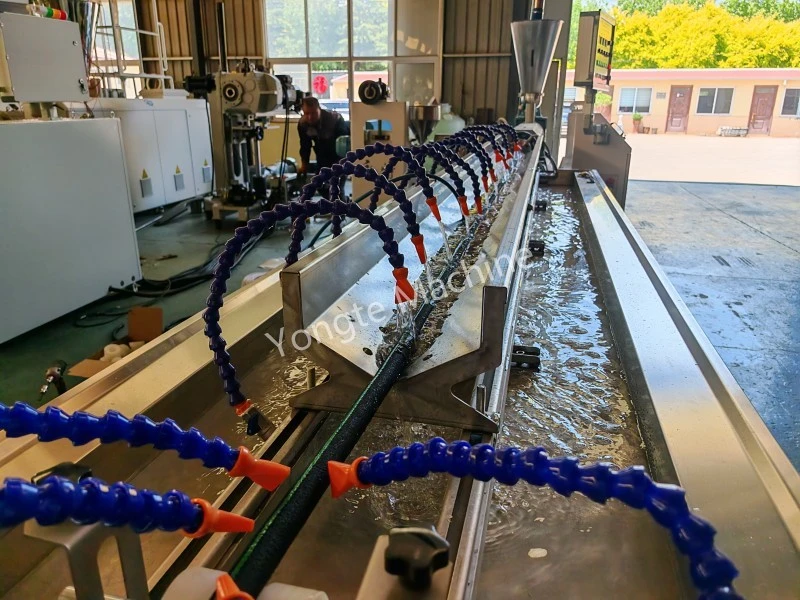

3, Stainless Steel Cooling Tank

6m 304 stainless steel; fast & even cooling; ensures dimensional accuracy.

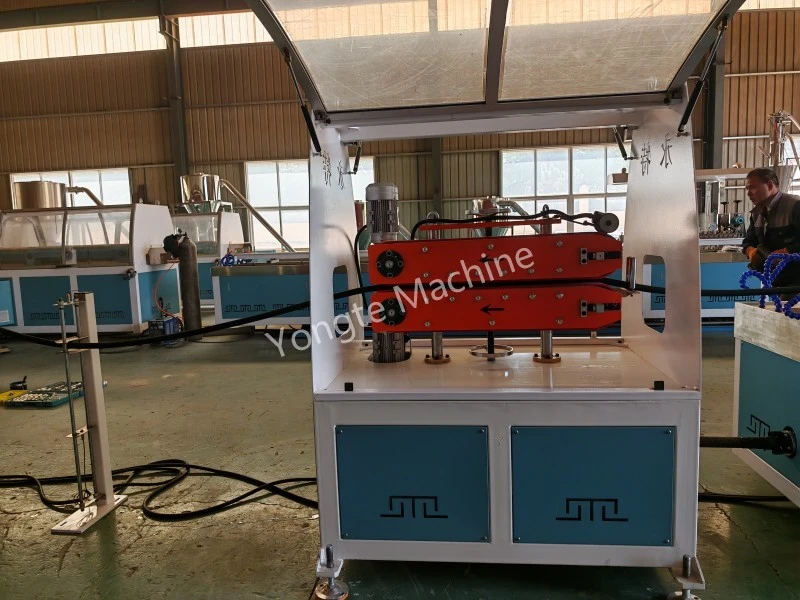

4, Double-Belt Traction

Stable pulling; smooth continuous production.

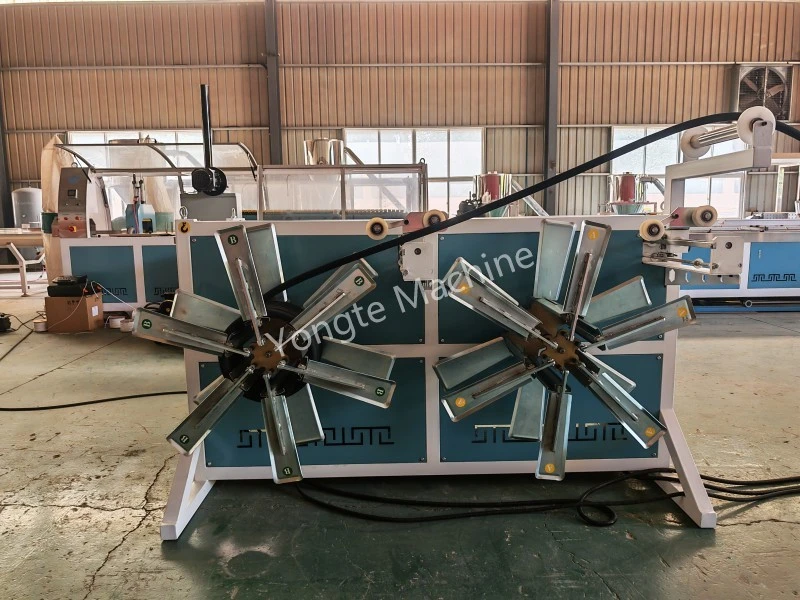

5, Automatic Winder

double station; auto tension control; meter counting & alarm.

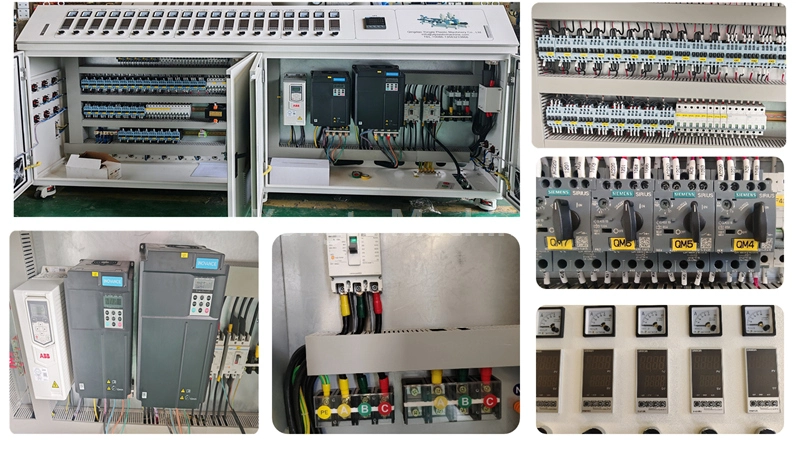

6, Electric Control System:

   (1) Our electrical components employ internationally acclaimed high-quality brands, such as ABB frequency converters

   (2) Siemens and Schneider contactors

   (3) Omron temperature controllers

   (4) Siemens PLC control systems

   (5) Innovance servo motors.

Application Scenarios of Rubber Nano Pipe:

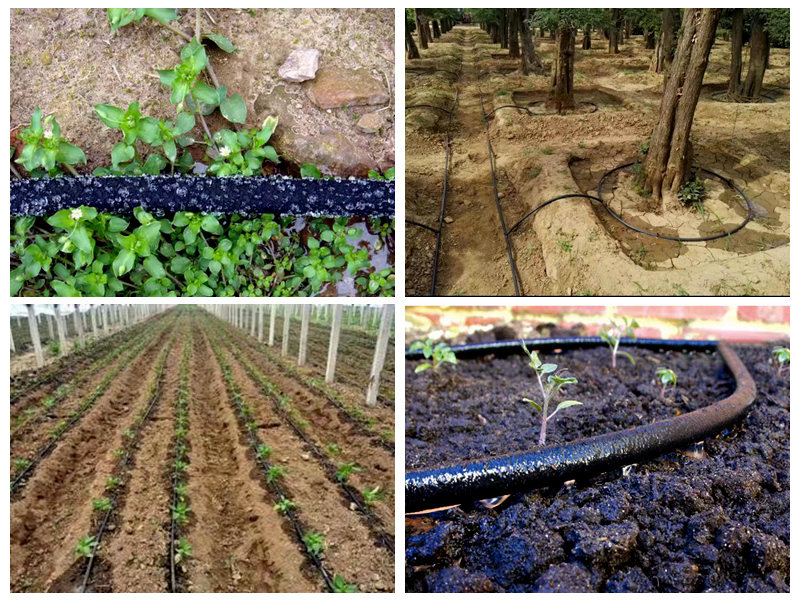

• Agricultural Water-Saving Irrigation: Greenhouses, orchards, vegetables, flowers; precise root irrigation; reduce salinization.
• Urban Rainwater & Drainage: Permeable pipes for rapid infiltration; flood control & pollution filtering.
• Groundwater & Environmental Remediation: Infiltration & purification; absorb heavy metals & COD.
• Aquaculture & Sewage Reuse: Oxygenation & filtration; stable water quality.

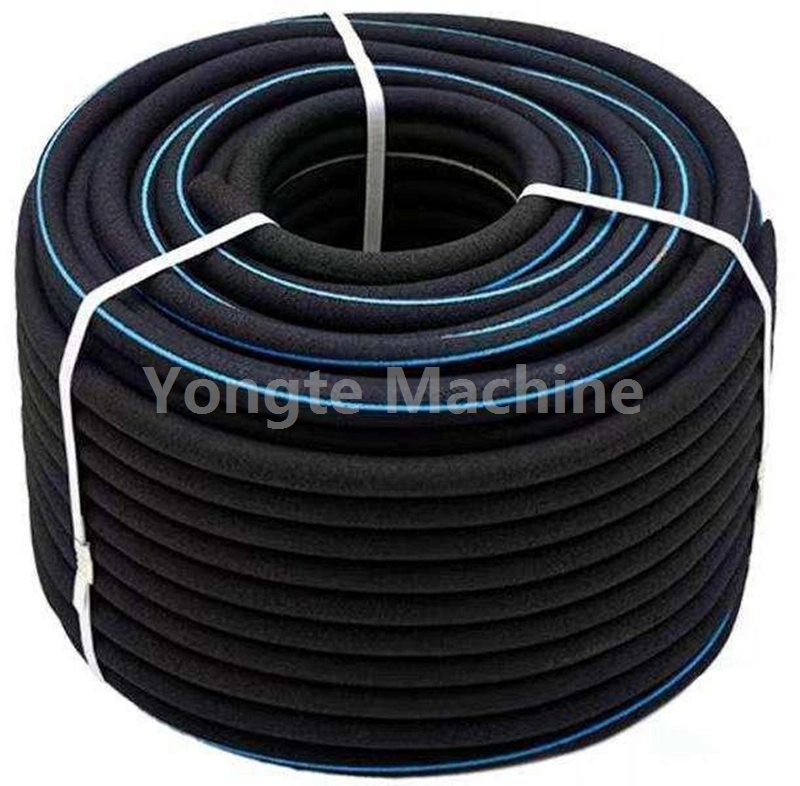

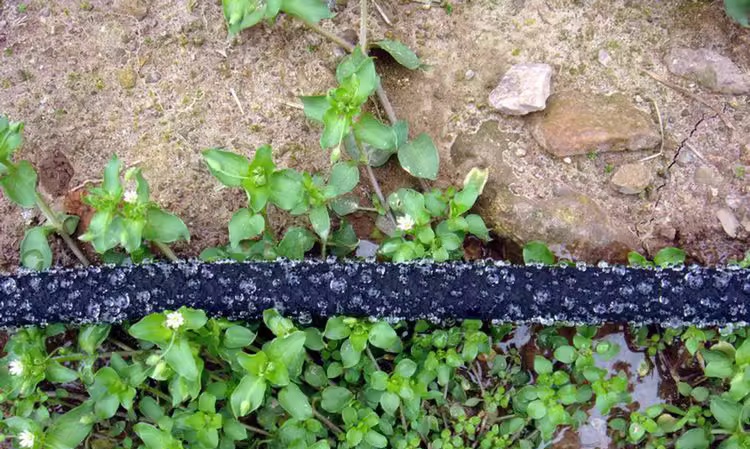

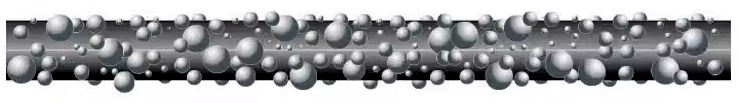

Structure of Rubber seepage irrigation pipe

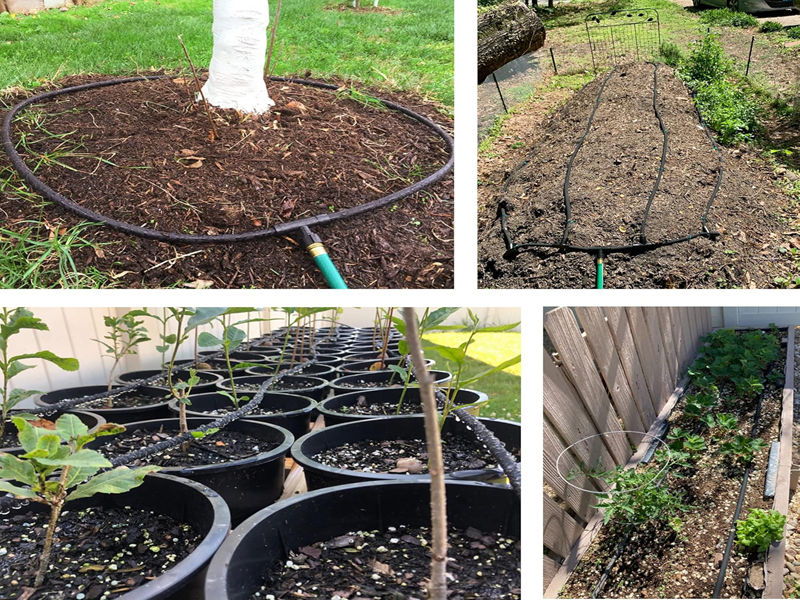

The irrigation pipe, constructed from resilient recycled rubber, incorporates minuscule capillaries within its structure. Upon connection to a water supply, the water is gradually released through these capillaries, a process facilitated by the pressure exerted by the water. The most advantageous aspect of this system is its exceptional water conservation capability. By positioning the drip pipes adjacent to the plants' growth areas, the water remains in proximity to the roots for an extended period, thus preventing overwatering and minimizing the wastage of valuable water resources through subterranean runoff. This irrigation method proves highly effective for a variety of applications, including lawns, vegetable gardens, and flower beds, and is particularly adept at providing a precise and gentle watering regimen for rows of plants.

The micro-porous, water-permeable irrigation pipe, created using an innovative micro-porous extrusion foaming technique, effectively prevents the occlusion of its tiny openings. This highly precise irrigation system is designed to conserve water while ensuring plants receive an adequate supply of nutrients. It eliminates areas where water distribution is inadequate and stops negative pressure suction when the water supply is deactivated, thereby preventing the blockage issues commonly associated with traditional drip irrigation emitters. Installation is straightforward, requiring only the connection to a polyethylene pipe. In terms of water conservation, this system utilizes merely one-sixth of the water typically consumed by conventional flood irrigation methods. Furthermore, the drip irrigation system facilitates the integration of basal and top-dressing fertilizers directly into the irrigation water, minimizing nutrient loss due to gradual seepage. Consequently, crops benefit from uniform absorption of both water and nutrients, significantly enhancing the efficiency of fertilizer application.

Advantages of Rubber Irrigation Pipe:

1. High Permeability Efficiency: The uniform nanoscale pores enhance the permeability rate by 2-3 times and ensure stability over an extended period.

2. Strong Anti-Clogging Ability: The nanoscale pores permit the passage of water molecules while effectively blocking larger particles, such as silt and microorganisms, (due to a mechanism similar to the "molecular sieve" effect. This significantly reduces the risk of blockage.

3. Long Service Life: The service life of rubber seepage pipes can reach 10-15 years through the combination of rubber and PE materials, with significantly enhanced aging resistance.

4. Low Installation and Maintenance Cost: Simple installation with a plug-and-play connector, flexibility to bend and roll up, resistance to blockages, and long maintenance-free periods reduce overall costs by 40%-60%.

5. Good Environmental Performance: Rubber seepage pipes can be produced from recycled waste tires and are recyclable multiple times, making them highly economical and environmentally friendly..
