Yongte is a professional manufacturer of high quality 50-160mm PVC pipe making machine in China. PVC pipe making machine is mainly for plastic pipe production enterprises, plastic products processing plants, construction enterprises and so on. Enterprises need efficient, stable and environmentally friendly production equipment to meet the needs of different scenarios and application fields, such as water supply and drainage, gas, chemical, agriculture and so on.

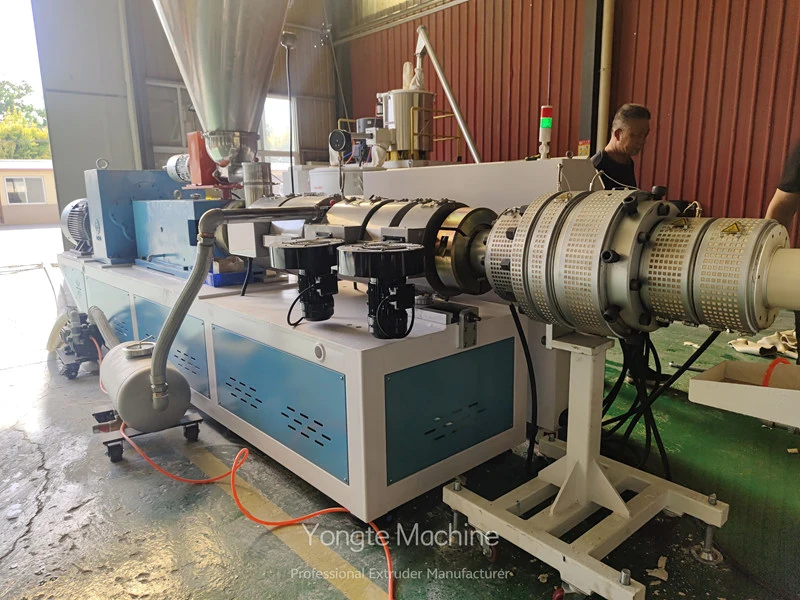

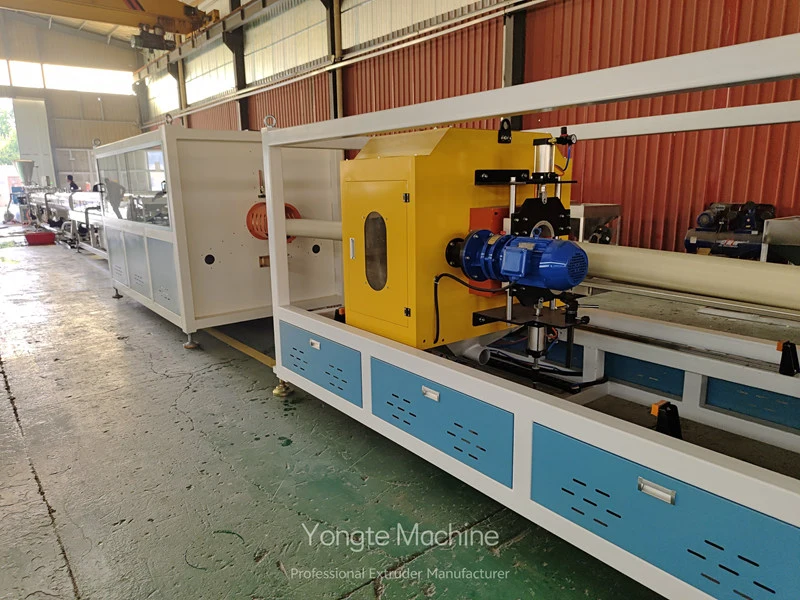

Preparation of raw materials + additives → mixing → conveying and loading → forced feeding → conical twin-screw extruder → extrusion mold → sizing sleeve → spray vacuum shaping box → crawler tractor → cutting machine → pipe stacking rack → finished product Test packaging.
Feeder → Mixer → Feeder → Extruder → Mold → Vacuum tank → Traction → Printer → Cutting → Curling
| project | YT-50 | YT-110 | YT-160 | YT-250 | YT-400 | YT-630 |
| extruder | SJZ45 | SJZ55 | SJZ65 | SJZ65 | SJZ80 | SJZ92 |
| Pipe diameter range | 16-40 | 50-110 | 63-160 | 110-250 | 200-400 | 315-630 |
| Vacuum tank(mm) | 5000 | 5000 | 5000 | 6000 | 6000 | 6000 |
| Cutting machine (m/min) | 3-12 | 2-8 | 2-8 | 0.4-3 | 0.2-4 | 0.4-3 |
| Total power (kw) | 66 | 62 | 89 | 95 | 135 | 255 |
| Total length(mm) | 17000 | 18000 | 20000 | 20500 | 28000 | 30000 |
| Pipe specification | Extruder output | kg/h | Remarks |
| 20-63 | 51/105 | 80-120 | 20、25、32、40、50、63 |
| 75-160 | 65/132 | 150-250 | 75、90、110、125、140、160 |
| 160-315 | 80/156 | 250-350 | 160、180、200、225、250、280、315 |
| 315-630 | 92/188 | 600-750 | 315、355、400、450、500、560、630 |
PVC pipes are divided into two types: PVC water supply pipes and drainage pipes, which are used for municipal water supply and drainage, industrial water supply and drainage, civil water supply and drainage, irrigation, vegetation watering, etc.
Good quality: The use of high-quality materials and advanced technology to ensure stable and reliable equipment performance.
Good service: Provide comprehensive pre-sale, sale and after-sales service to solve user problems.
Stable production: stable operation of equipment to ensure production efficiency.
Mature formula: The use of mature formula to ensure product quality.
Advanced technology: the use of cutting-edge technology to improve production efficiency and product quality.
Low maintenance cost: The equipment is easy to maintain, reducing the cost of use.
Long service life: the equipment is durable, long service life.
High efficiency: equipment processing speed is fast, improve production efficiency.
Energy saving: Use energy-saving technology to reduce energy consumption.
Environmental protection: environmentally friendly and pollution-free, in line with green production requirements.
Turnkey engineering: Provide one-stop service, from equipment installation to production training, so that users can easily get started.
