Yongte 63-200mm PVC pipe extrusion machine equipped with 80/156 conical double screw extruder and high speed PVC pipe extrusion mold, fast cooling and forming tank, the production capacity can be 250kg/hour.
Yongte is professional manufacturer for 63-200mm PVC Pipe Extrusion Machine, we supply high quality machine with factory price, and great customer service. Buy PVC pipe extrusion machine from Yongte is a good choice
PVC pipe extrusion machine is a key equipment used to produce PVC pipes. 63-200mm PVC pipe extrusion machine equip with SJSZ80/156 conical double screw extruder and 63-200mm high speed PVC pipe extrusion mold, so this is a high speed production line which can get capacity 250kg/hour.

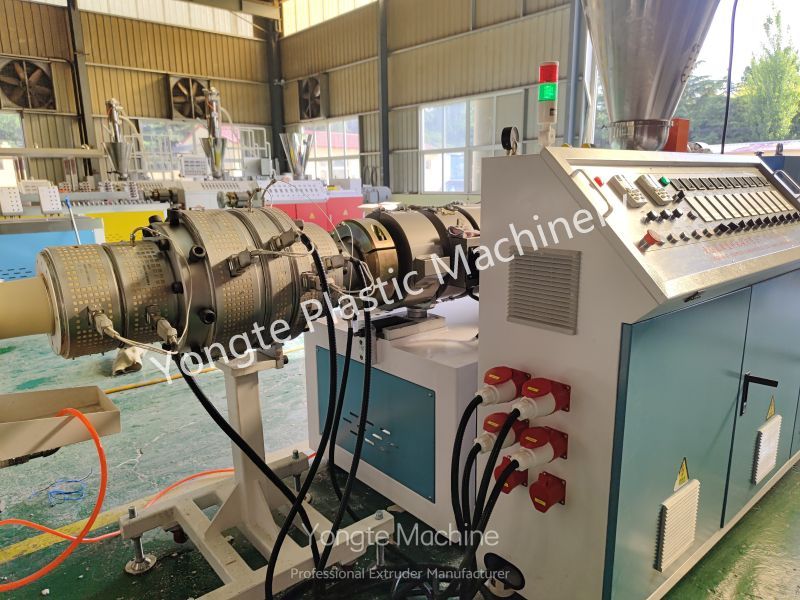

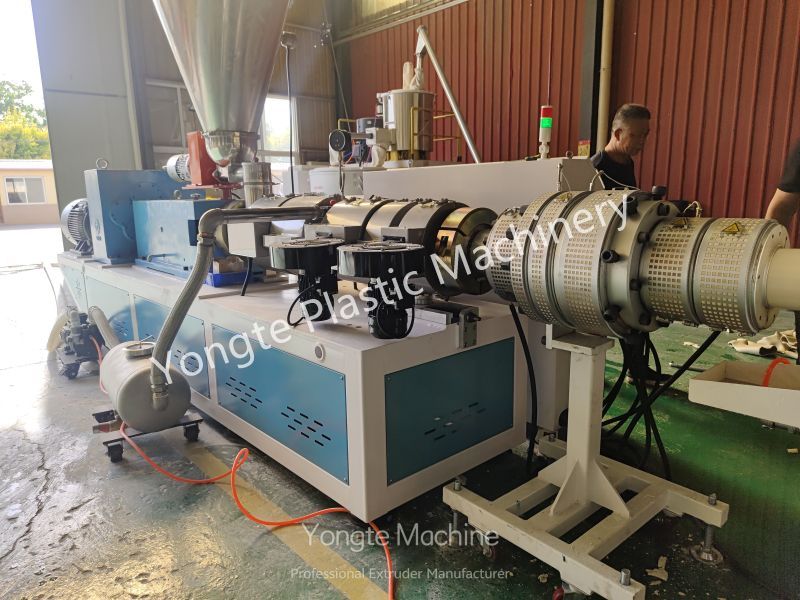

PVC pipe Extruder: This is the core component, responsible for heating, plasticizing and extruding the PVC raw materials. for 63-200mm PVC pipe making, we equip SJSZ80/156 conical double screw extruder, its extrusion capacity can be 350kg/hour, it equip with screw auto feeder, Aluminum heater, bimetallic screw and SKD barrel, 55-75KW motor power.
PVC pipe extrusion mold: determines the shape and size of the pipe. it includes Mouth die,Core die,Diverter,Forming sleeve,Adjusting screw,Heating circles,Connecting flange

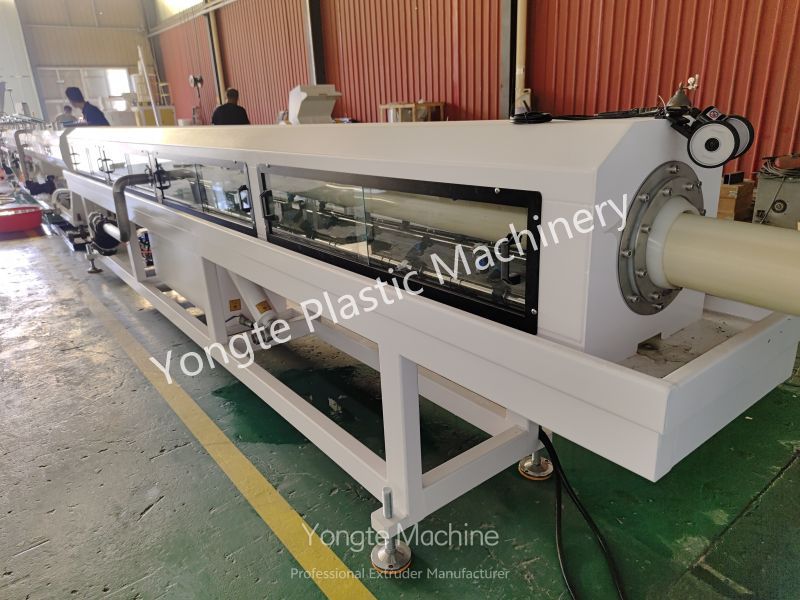

PVC pipe vacuum forming tank: the vacuum forming tank cools and shapes the extruded pipe to keep it in a specific shape. it equip with 5.5kw*2 sets vacuum pump and 4kw*2 sets water pump. the tank is made by 304 stainless steel, the length is 6meter

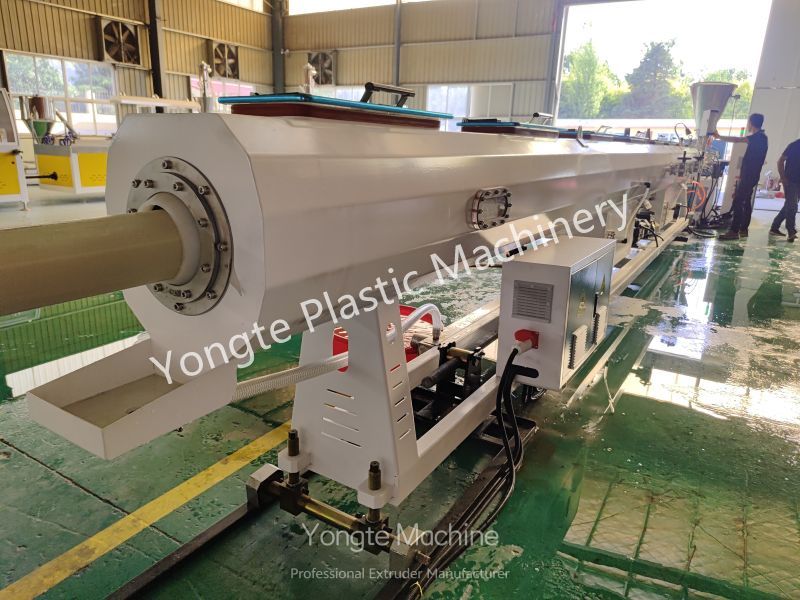

PVC pipe water spraying cooling tank: it equip with 4kw water pump for spraying fast cooling water, the tank is made by 304 stainless steel, tank length is 6 meter

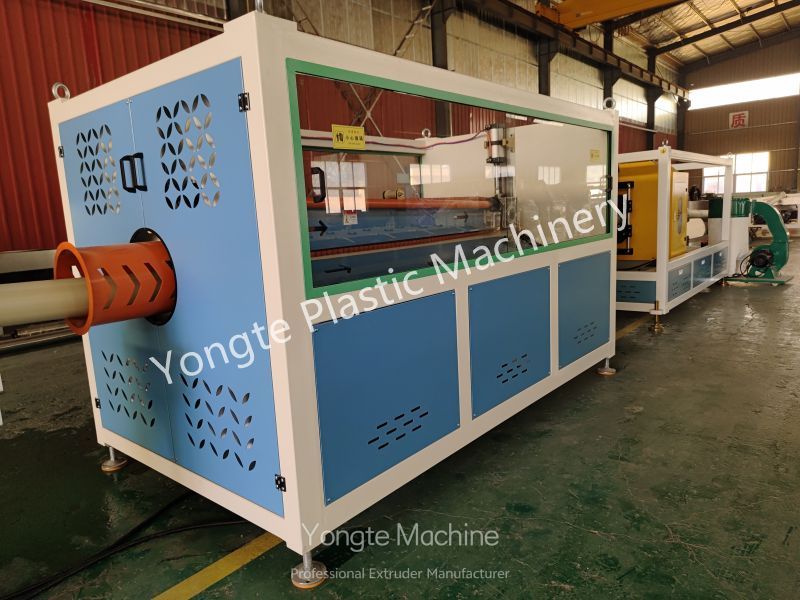

PVC pipe traction device: pulls the pipe forward at a constant speed to control the production speed. this is a 3 caterpillars high force traction device, the traction rubbers are made by high quality rubber, effective traction length is 2.4meter

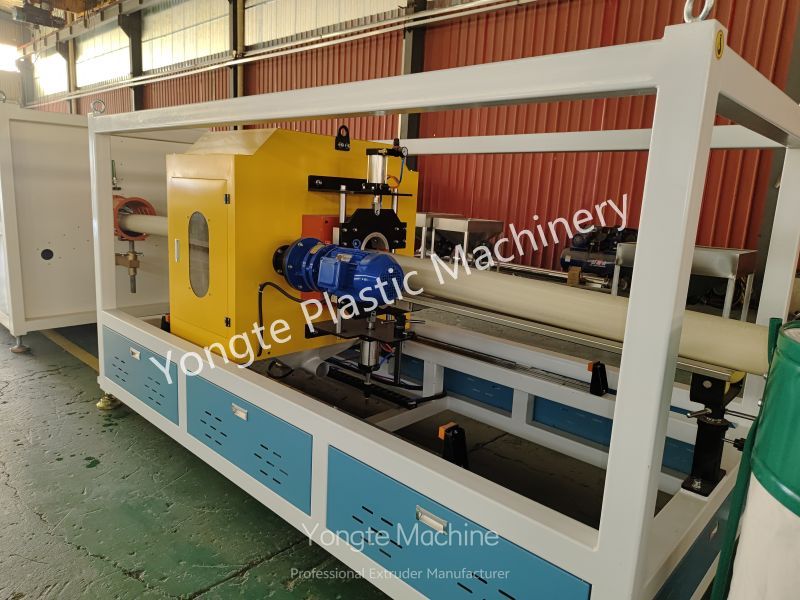

Cutting device: cuts the continuously extruded pipe into the required length. automatic cutting with dust suction device
Electricity control system: English language control system, equip with ABB inverter, Siemens or Schneider contractors, Omron temperature controller.
PVC pipe extrusion equipment plays an important role in the plastic pipe production industry, providing important pipe products for construction, water supply and drainage and other fields.
