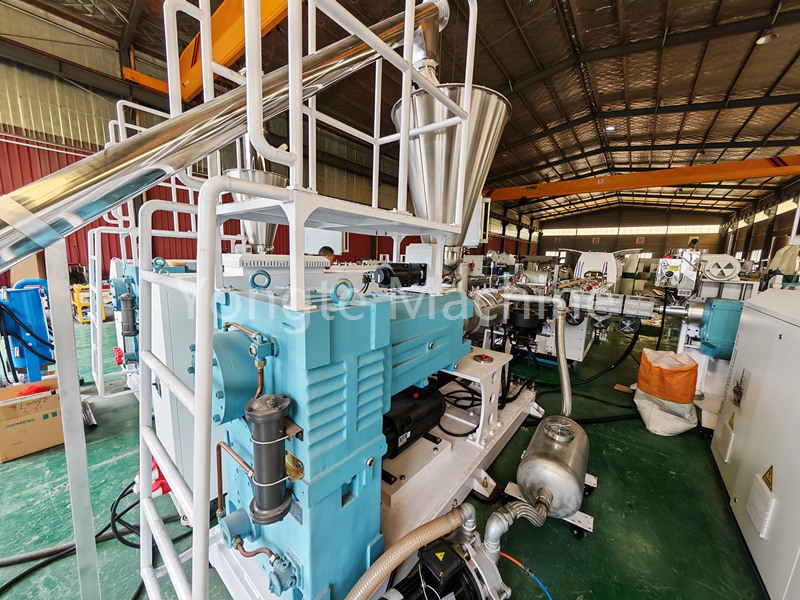

Yongte 2026 New WPC decking machine is for making new generation of weather-resistant WPC profiles. Its advanced co-extrusion tech processes WPC granules and modified PE masterbatch to produce uniform WPC profiles for outdoor decking, fencing, and cladding with more than 10 years using life.

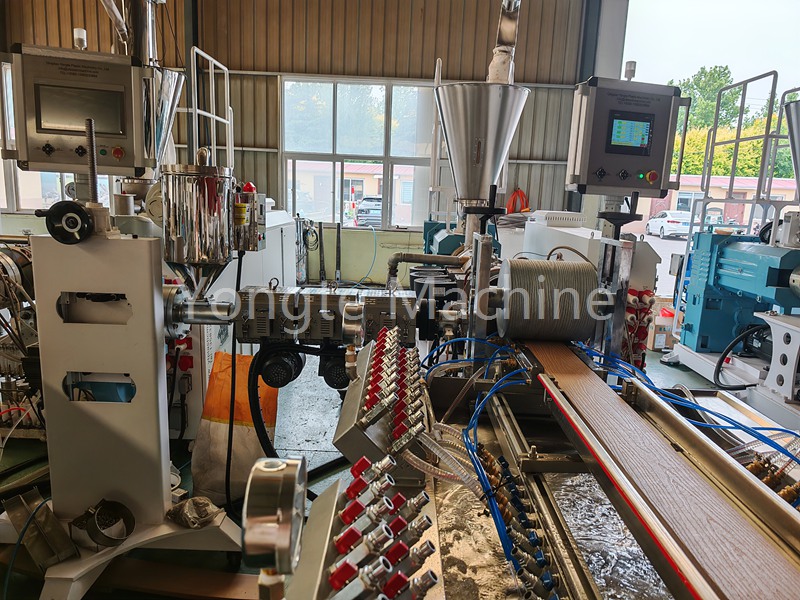

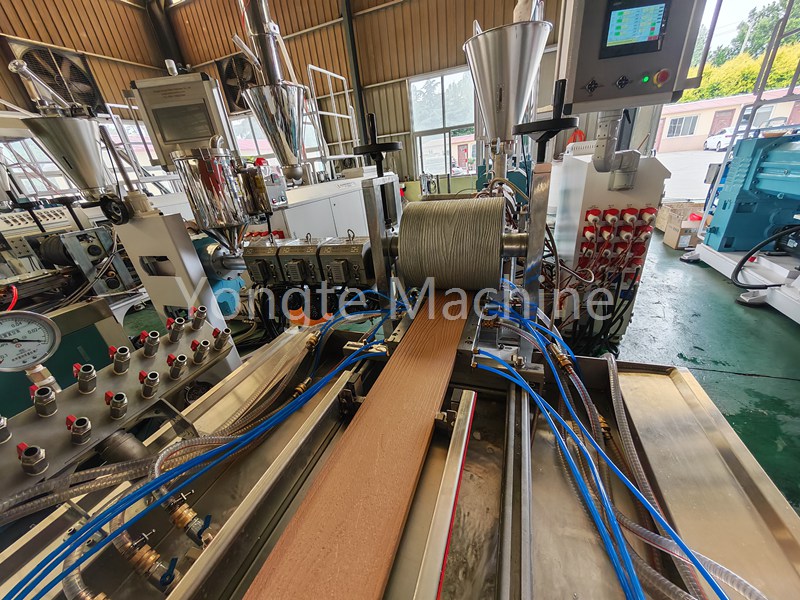

Yongte 2026 New WPC Decking Machine combines high productivity, energy efficiency, and dependability, producing superior, long-lasting weather-resistant WPC products from recycled materials. It melts and plasticizes wood-plastic granules/fragments via a conical twin-screw extruder and modified PE granules through a single-screw extruder, then extrudes them into a specialized mold to form desired shapes. Its tapering barrel design boosts mixing efficiency, ensures stable melt pressure, compacts material to 1.3 g/cm³, and strengthens structural integrity. Equipped with high-speed cooling/calibration, stable traction, and automated cutting, it handles diverse WPC products via quick mold changes.
Yongte 2026 New WPC Decking Machine solves recycled material issues like poor weather resistance and color inconsistency. By co-extruding a high-quality modified PE layer on the WPC core, it creates customizable wood-grain products that last over 10 years outdoors.
|
Core material |
PP/PE and wood composited granules/flakes |
|
Co-extrusion material |
Modified PE granules with color masterbatch |
| 2026 NEW | Advanced co-extrusion technology, PLC control, Automatic production line |
|
Material feeder |
Automatic screw feeder |
|
Main Extruder |
SJSZ65/132 Conical twin screw extruder |
|
Co-extruder |
SJ35 or SJ45 single screw extruder |
|
Embossing |
Online 3D embossing equipment |
|
Cooling |
6-8meter Stainless steel cooling table |
|
Traction |
Double caterpillar tractor |
|
Cutting |
Automatic cutter |
|
Stacker |
6m product auto stacker |
|
Electricity control |
ABB inverter, Siemens contractor, Omron temperature control |
|
Production speed |
0.5-2meter/minute |
|
Extrusion Capacity |
150-200kg/hour |
|
Installation power |
125KW |
|
Power consumption |
Around 60KW |
|
Certificate |
CE certification |

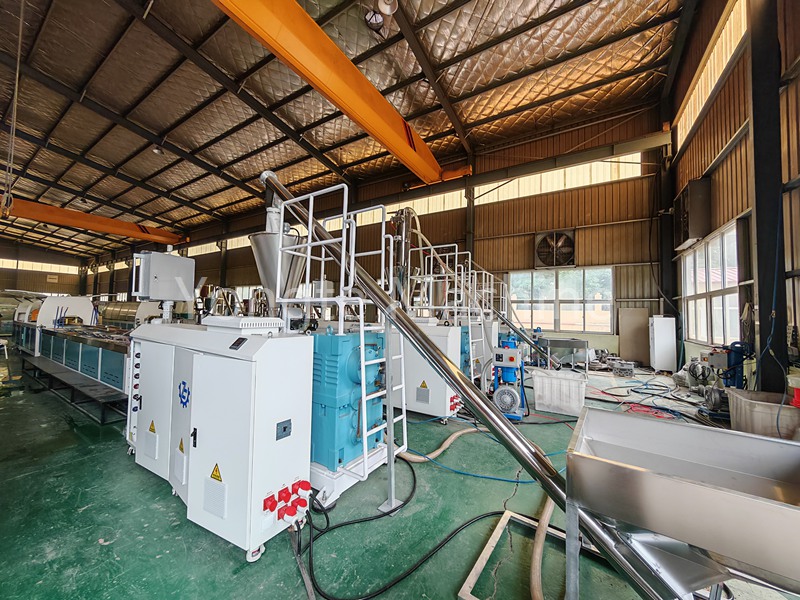

1. Automatic Feeder: The primary extruder is outfitted with a screw feeder, whereas the co-extruder utilizes a vacuum suction feeder.

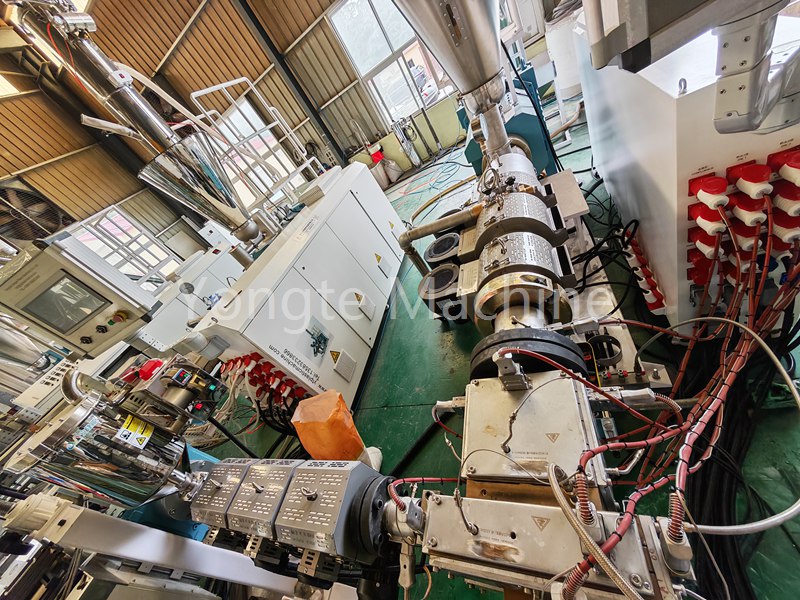

2.SJSZ65/132 Conical Twin Screw Extruder: This model is equipped with a servo motor, facilitating a 15-20% reduction in power consumption, a vertical gearbox that ensures stable and robust production, a bimetallic screw and SKD barrel for extended use, and an automatic temperature control system.

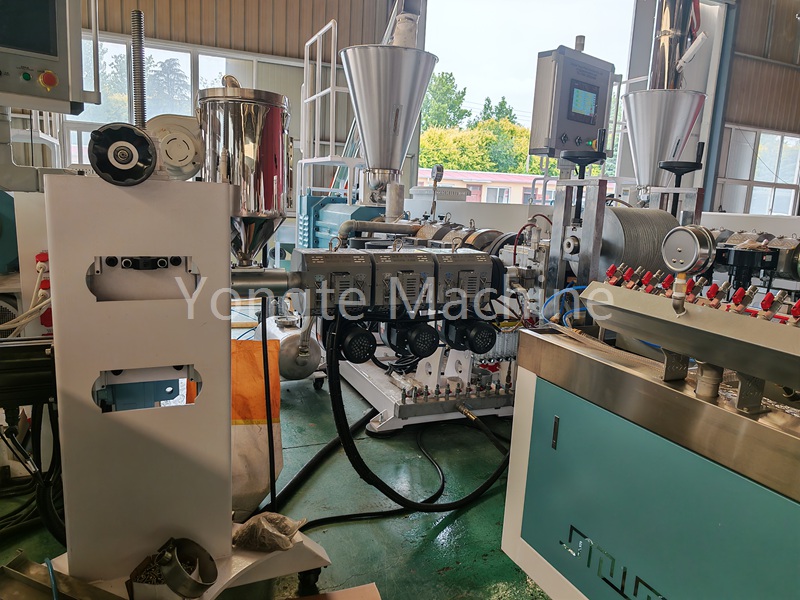

3.SJ35 Co-extruder: This co-extruder is fitted with a drying hopper and an automatic system, featuring a uniquely designed screw profile to guarantee the melting and uniform flow of materials.

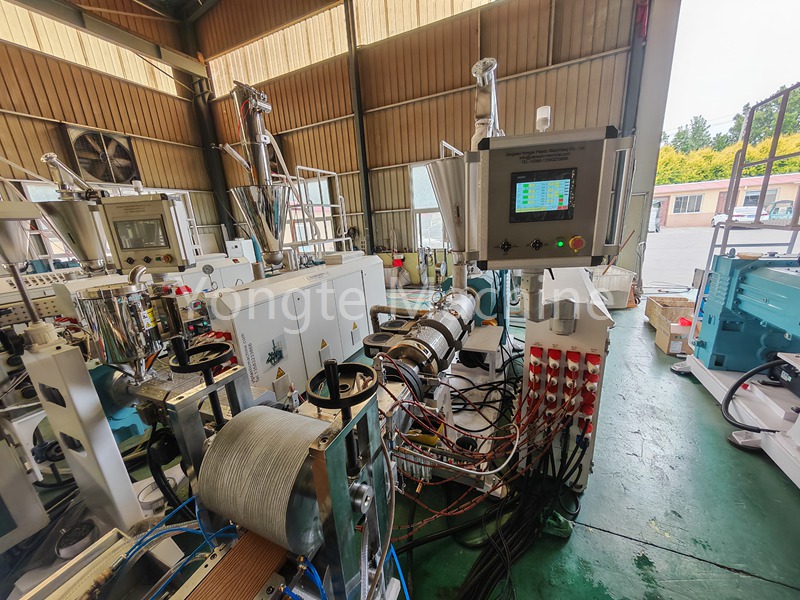

4.Co-extrusion Mold: Constructed from premium 3Cr17 mold steel, this mold features a well-designed co-extrusion die cavity and core layer die cavity flow, precise zoned temperature control, a modular design for consistent shaping dimensions, and quick-positioning pins for straightforward installation.

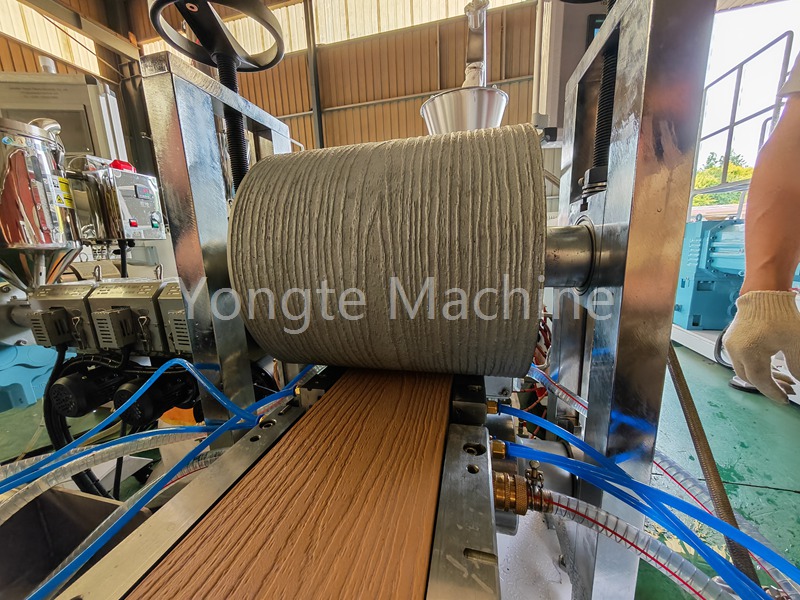

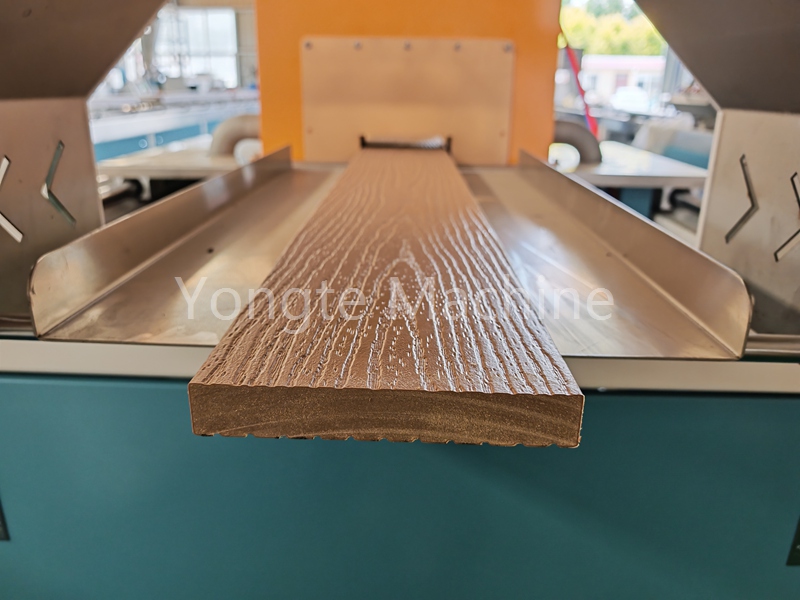

5.Online 3D Embossing Equipment: To augment the wood grain aesthetic and anti-slip properties of Wood Plastic Composite, we have integrated an online 3D deep embossing machine. This equipment can be affixed to the calibration table of the WPC extrusion line to produce a more authentic wood grain effect. The embossing roller is designed to be interchangeable, enabling the production of diverse wooden textures.

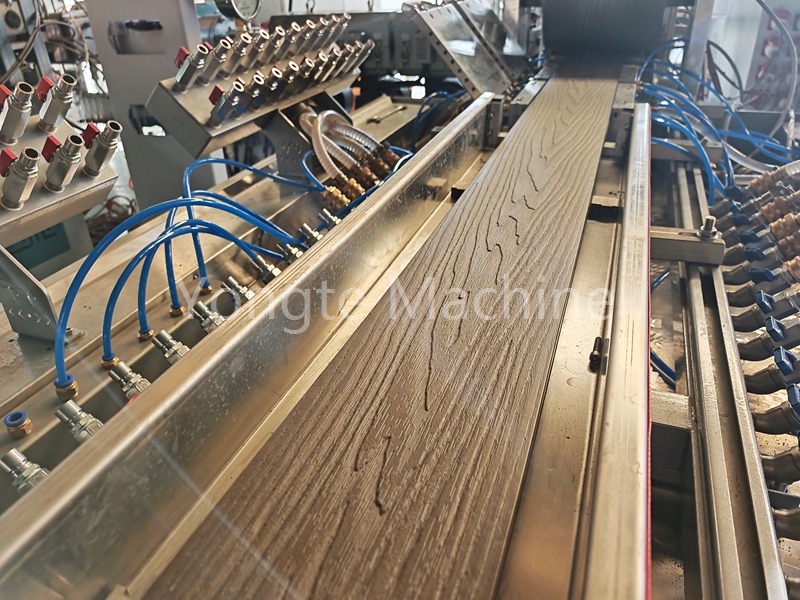

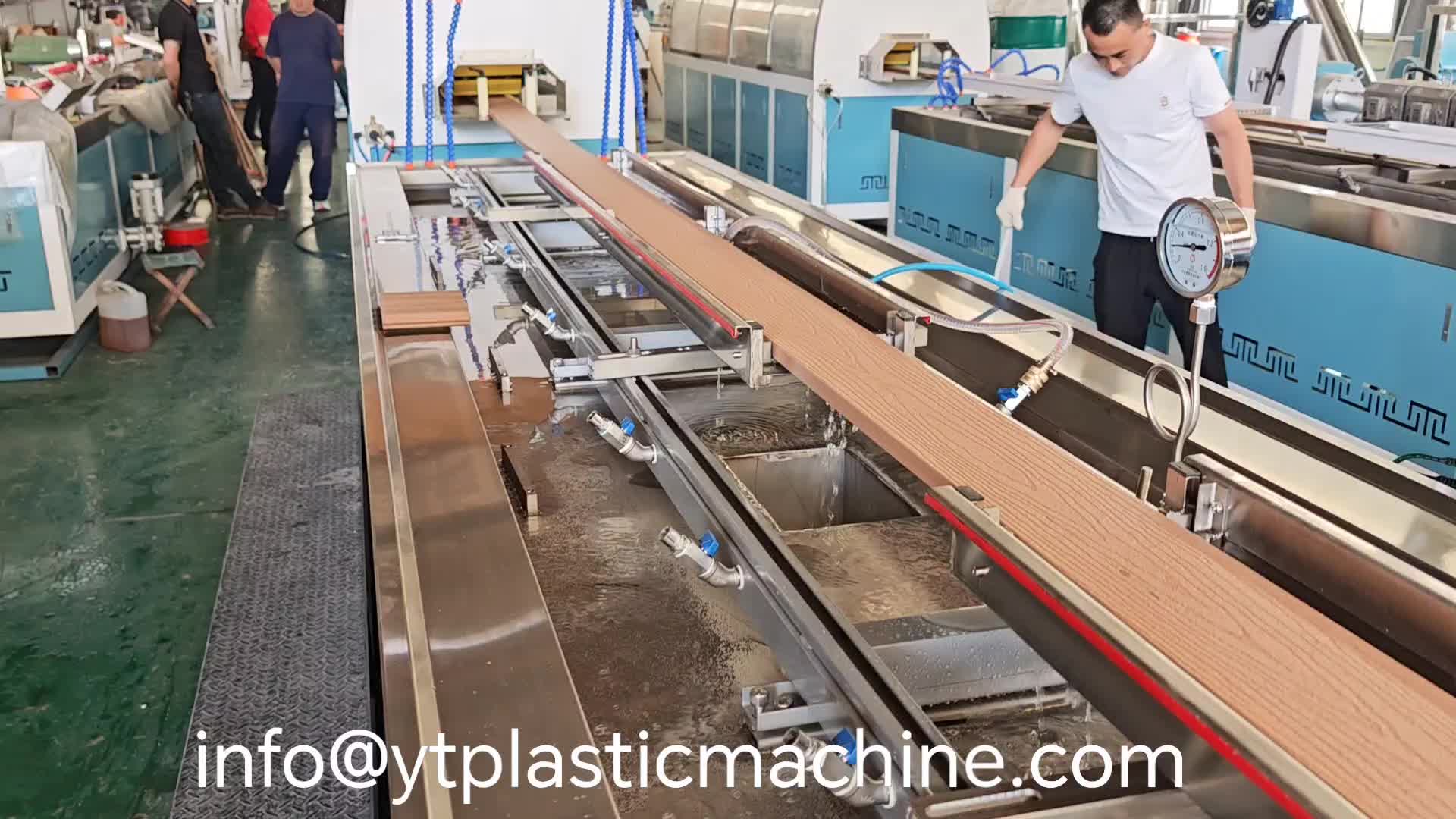

6.Calibration and Cooling Table: Crafted from a single sheet of 304 stainless steel with an optimal pipe layout, it features comprehensive electric lifting and lateral adjustment capabilities, and a water system extending along its entire length. It is well-suited for rapid cooling systems, easy to install and maintain, and the water tank is equipped with a filter to prevent contamination.

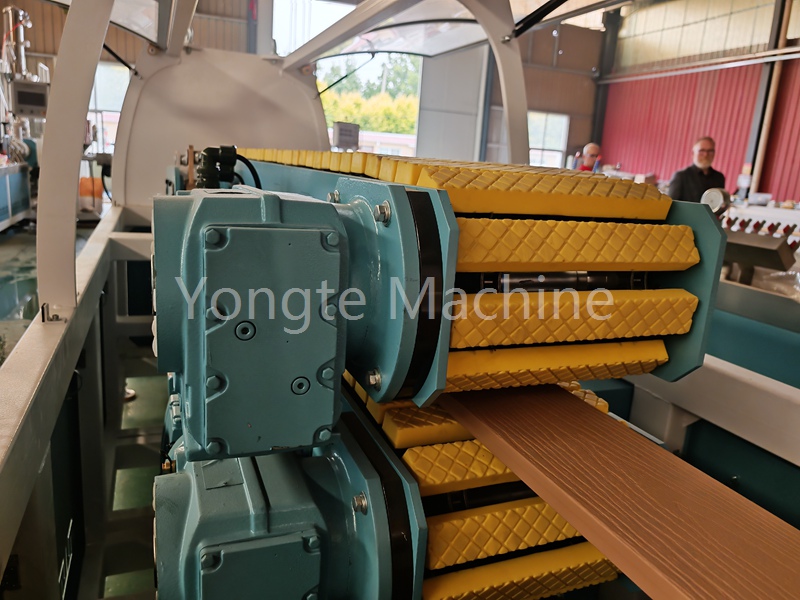

7.Traction Machine: High-quality rubber ensures longevity, the tire tread surface ensures traction friction, dual-stage reduction provides ample traction torque, and the bird-wing protective cover simplifies operation and maintenance.

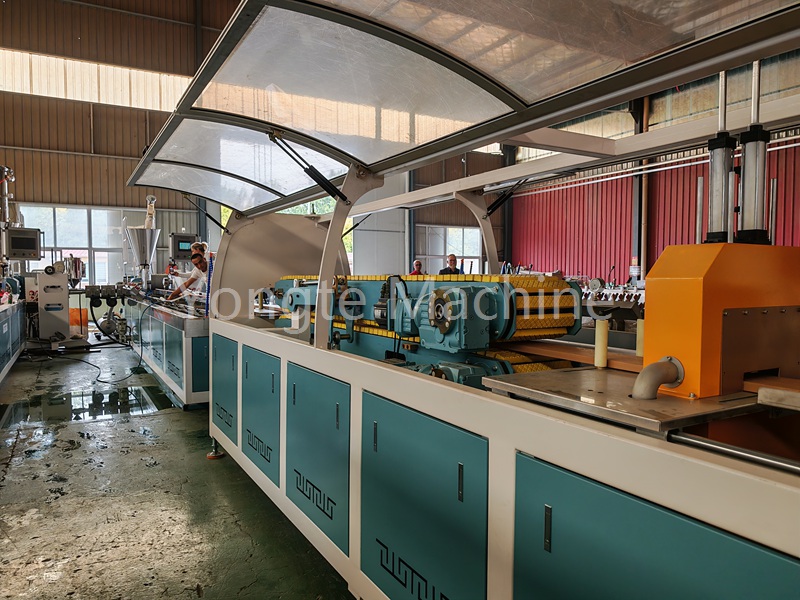

8.Cutting Machine: Equipped with automatic fixed-length cutting, a 304 stainless steel panel, a fully enclosed dust collection system to mitigate dust pollution, a servo motor, and specialized material cutting blades for high-speed cutting to prevent chipping.

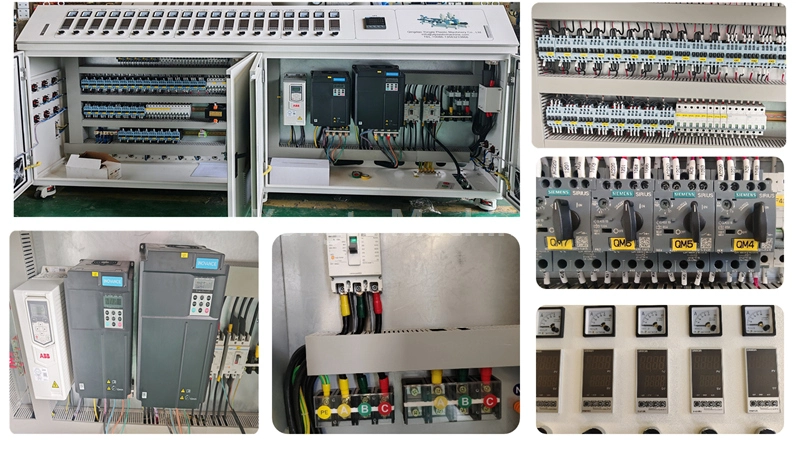

9.Electric Control System: Equipped with an ABB inverter, Omron temperature controller, Siemens contractor, and a PLC control system is available as an option. All contactors and wires within our electrical cabinets are neatly arranged, with wire numbers clearly labeled according to a standardized pattern. Sufficient clearance between components allows for easy operation by electricians. All auxiliary wiring utilizes quick-connect plugs (eliminating the need for customer wiring), ensuring convenience and safety.
10. Product Stacker: 6-meter automatic stacker.

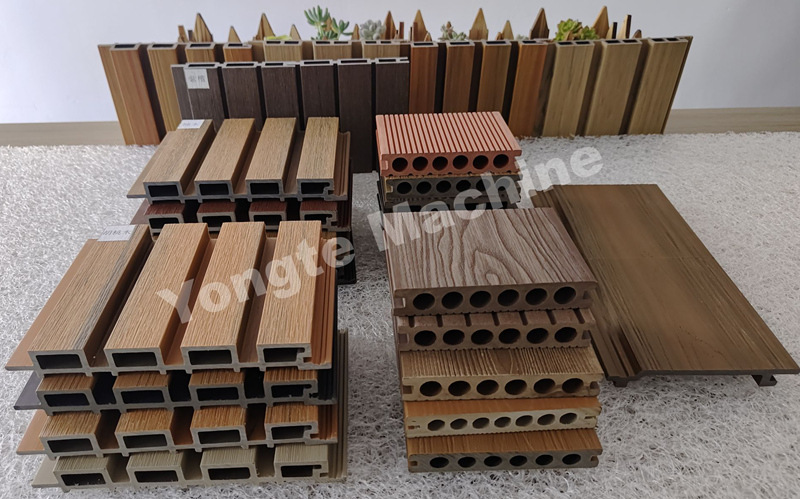

Addressing critical industry pain points of recycled WPC materials—insufficient weather resistance and uneven color—Yongte’s advanced co-extrusion technology adds a high-quality modified PE surface layer to the WPC core. This dual-layer structure not only enables customizable wood grain finishes and color options but also delivers superior weatherability: the outdoor WPC profiles resist UV radiation, moisture, and temperature fluctuations, ensuring a service life of over 10 years.
Yongte Machine Advantages: Human-Centric Design and Industrial-Grade Durability
Yongte has sustained a steadfast dedication to innovation and the pursuit of excellence in the manufacturing of wood plastic composite (WPC) machinery. We persist in utilizing high-strength, abrasion-resistant materials, coupled with meticulous forging techniques and multi-tiered quality assessments, to ensure our machinery can endure high-frequency operations and severe industrial conditions—providing enduring reliability for your production processes.
Our WPC machines are equipped with premium vertical direct-connection gearboxes, which offer exceptional performance:
l - High transmission efficiency and robust load-bearing capacity facilitate stable, continuous production
l - Compact design conserves installation space, making them suitable for workshops with limited dimensions
l - Superior sealing mechanisms prevent oil leakage, coupled with exceptional heat dissipation capabilities, which extend service life
l - User-friendly maintenance design reduces downtime and operational expenses

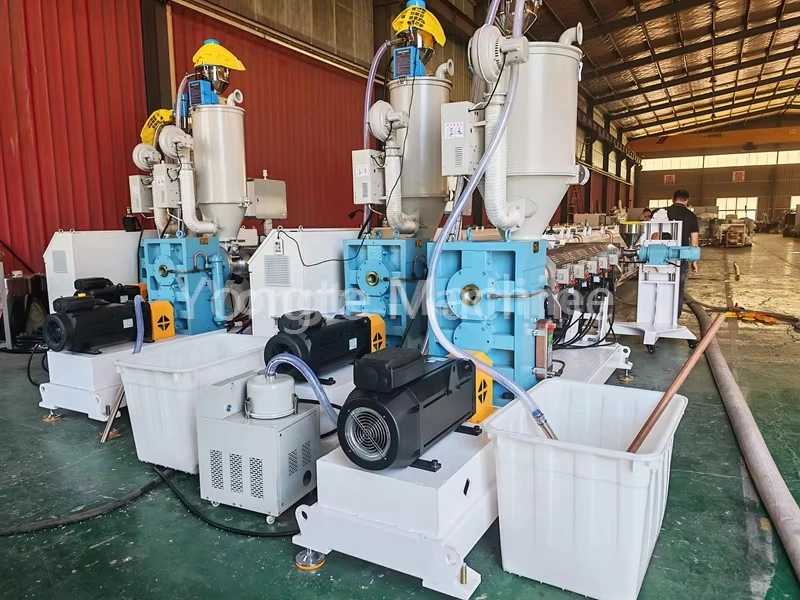

Innovance servo motors power our systems, delivering substantial value to your production:
l - Energy savings of 15-20% compared to conventional motors, thereby reducing long-term operational costs
l - Precise control over speed and torque ensures consistent product quality and stable output
l - Fast response, low vibration, and ultra-quiet operation enhance the workshop environment
l - Long service life and minimal maintenance requirements decrease total cost of ownership (TCO)
l - Intelligent speed and output regulation adapt to dynamic production demands
The fully integrated WPC production line is engineered for peak efficiency and ease of use:
l - Automated processes encompass auto feeding, temperature control, cutting, and stacking, thereby reducing labor costs
l - An optional automatic material mixing and dosing system provides a comprehensive turnkey solution
l - A PLC programmable control system, in conjunction with servo motor technology, enables automatic speed synchronization adjustment
l - An intuitive operation interface minimizes training time and mitigates human error
We emphasize safety, stability, and international compliance through the utilization of high-quality components:
l - Equipped with ABB frequency converters, Siemens/Schneider contactors, and Omron temperature controllers
l - Siemens PLC control system ensures dependable performance and straightforward programming
l - Cables are neatly arranged with clear labeling for rapid troubleshooting and maintenance
l - Adheres to global safety standards, including EN ISO 12100 (Machinery Safety), EN 60204-1 (Machine Electrical Equipment), and EN 61000 series EMC standards—satisfying export requirements globally
Engineered for sustained performance in rigorous production settings:

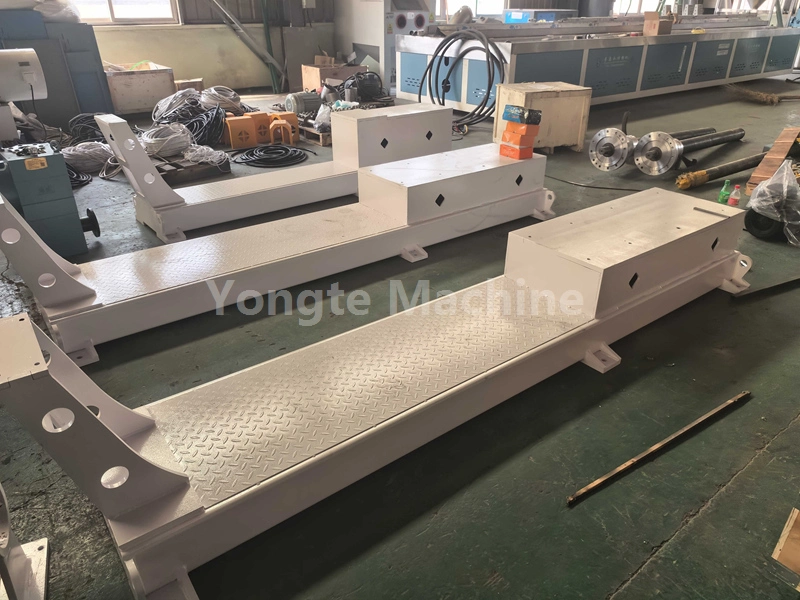

l - Machine base constructed from solid steel plates, processed via CNC cutting and polishing for precise dimensions and structural equilibrium
l - Rigid frame design ensures 20+ years of continuous operation without distortion
l - All material/water-contacting components are fabricated from 304 stainless steel to avert rust and corrosion
l - Screw and barrel are customized for WPC processing requirements:
l - Bimetallic screws and SKD barrels for WPC extruders
l - WR7/WR5 wear-resistant materials for pelletizer screws/barrels
l - Service life is 1.5-2 times longer than standard components
l - Powder coating finish enhances aesthetic appeal, delivers superior anti-rust protection, and ensures color uniformity
l Warranty period: 3 years warranty for the primary machine components
l Pre-shipment testing: Each machine undergoes performance and stability evaluations to guarantee high-quality output
l Professional on-site support: Our engineering team offers installation, commissioning, and operator training to ensure a seamless start-up
l Lifelong technical consultation and spare parts supply for uninterrupted production
