Yongte is professional manufacturer for PVC rain gutter extrusion machine for producing PVC rain gutter.Yongte PVC rain gutter extrusion machine has advantages of excellent quality, high capacity, automatic, saving power

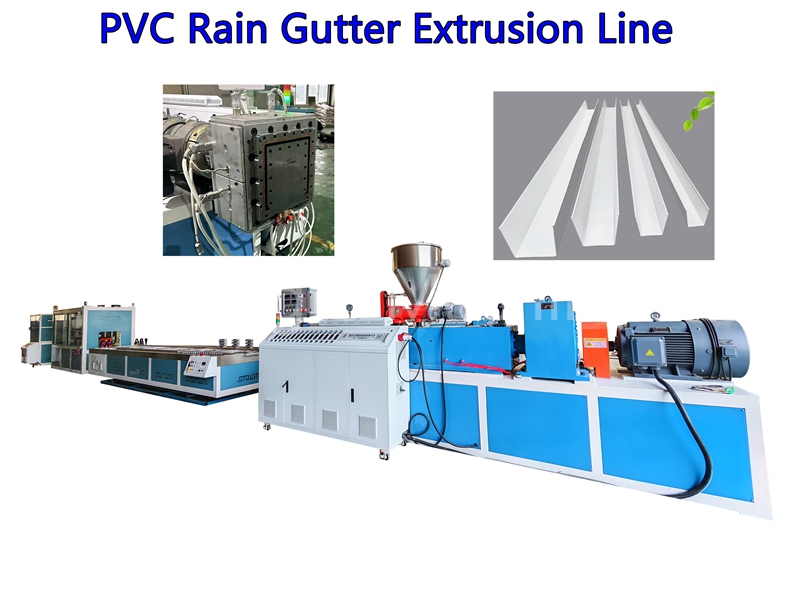

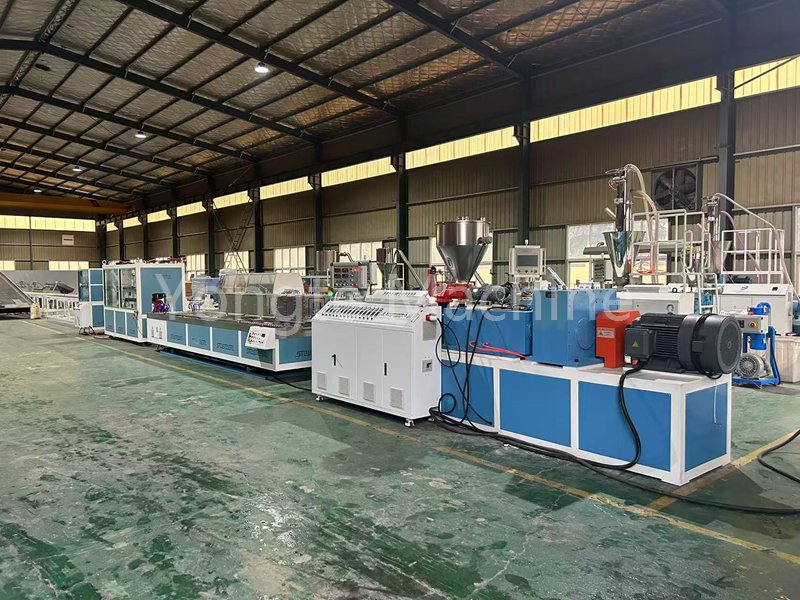

Yongte PVC rain gutter extrusion machine is a professional equipment for producing PVC rain gutter with excellent quality and high capacity.
The main components of PVC rain gutter extrusion machine include:

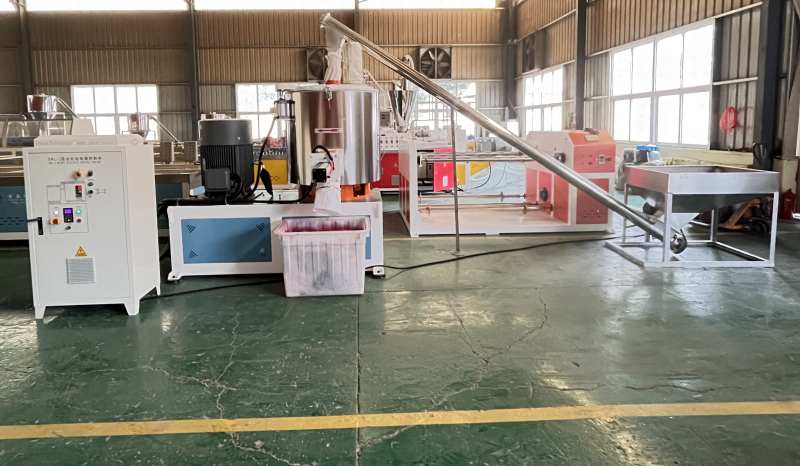

1, Feeding system: usually composed of silos, metering devices, mixing equipment and conveying devices. Silos are used to store PVC raw materials and various additives. Metering devices can accurately control the amount of various raw materials. Mixing equipment evenly mixes raw materials and additives, and conveying devices convey the mixed materials to the extruder.

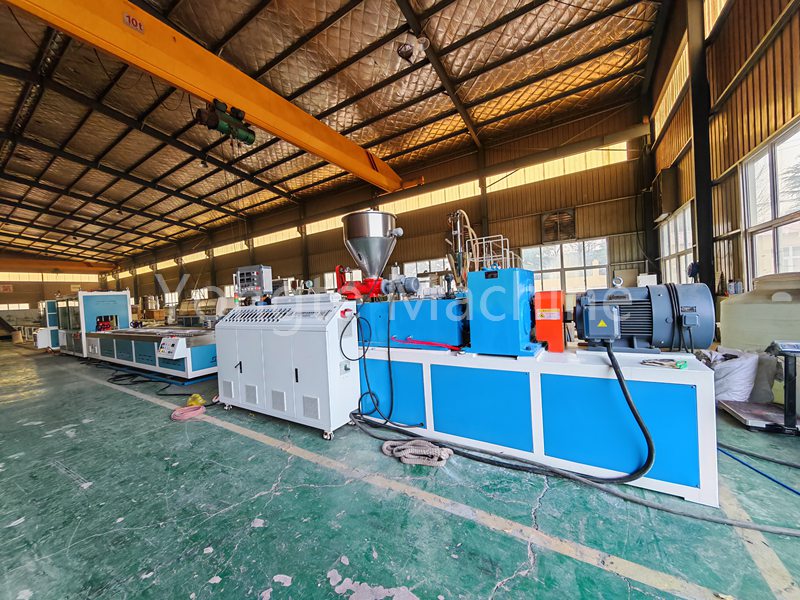

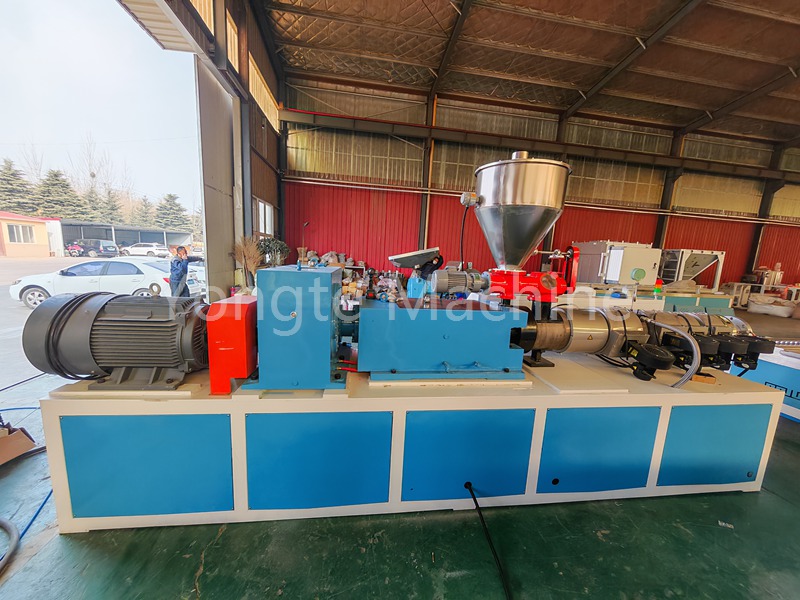

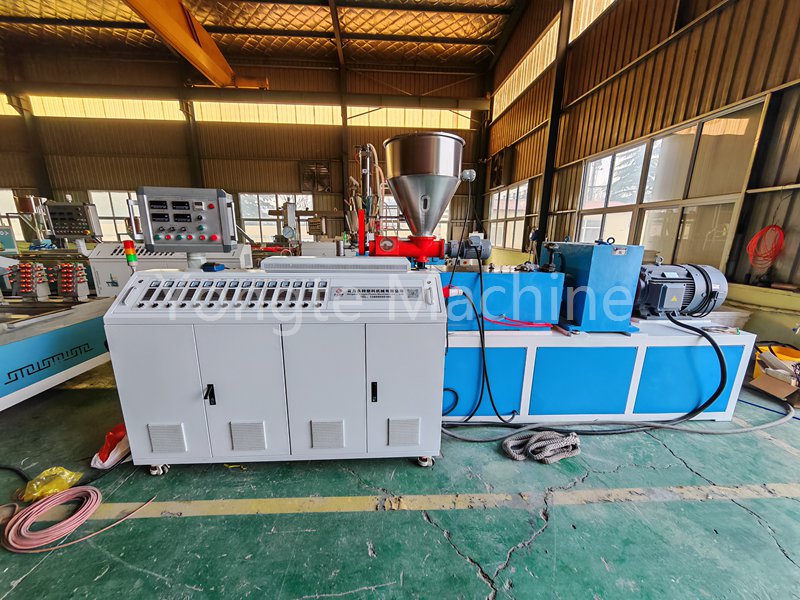

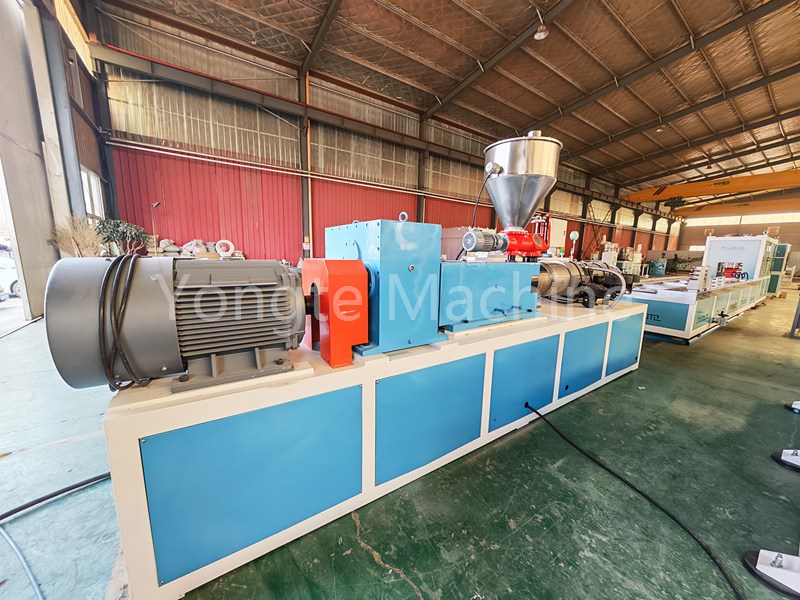

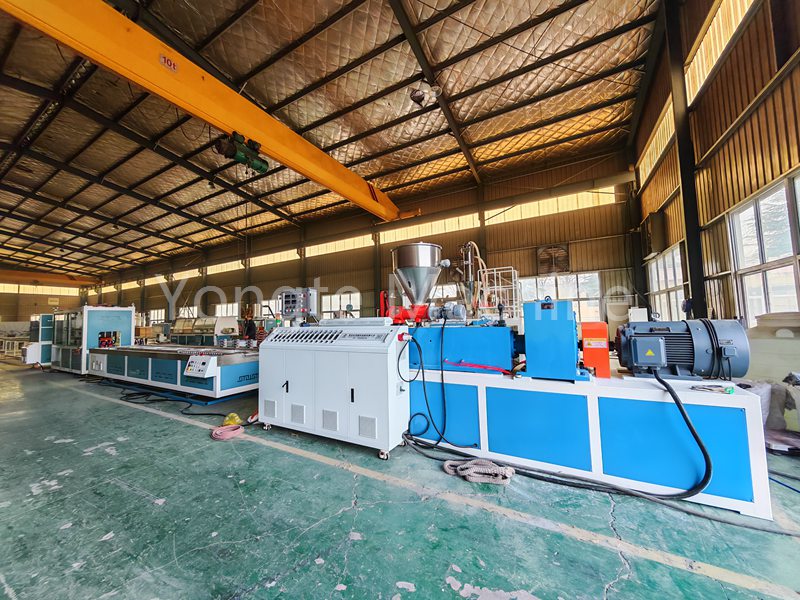

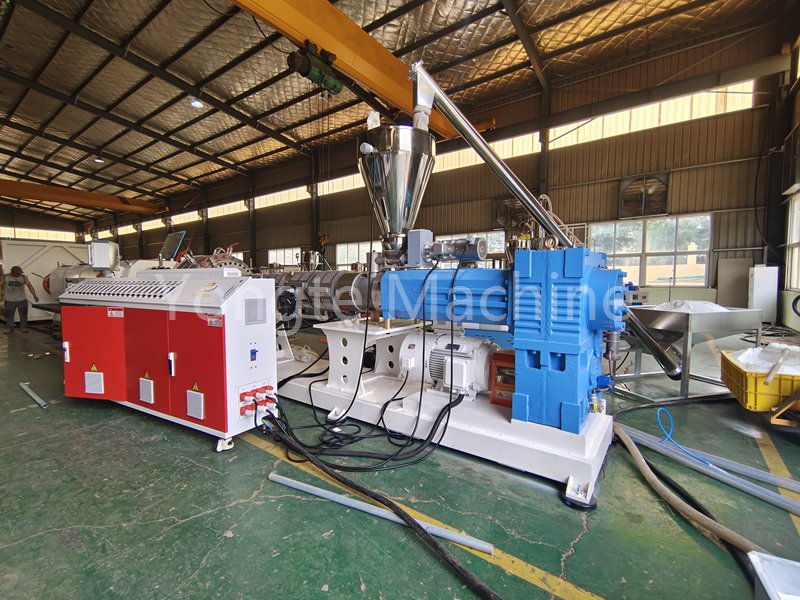

2, Extruder: high effective conical twin-screw extruder is used. The screw and barrel are equipped with a vacuum degassing system to remove waste gas from the raw materials and ensure the quality of particles. The PVC raw materials in the barrel are heated to a suitable temperature through the heating system to melt them. The rotation of the screw pushes the raw materials forward, and the raw materials are plasticized and mixed at the same time.

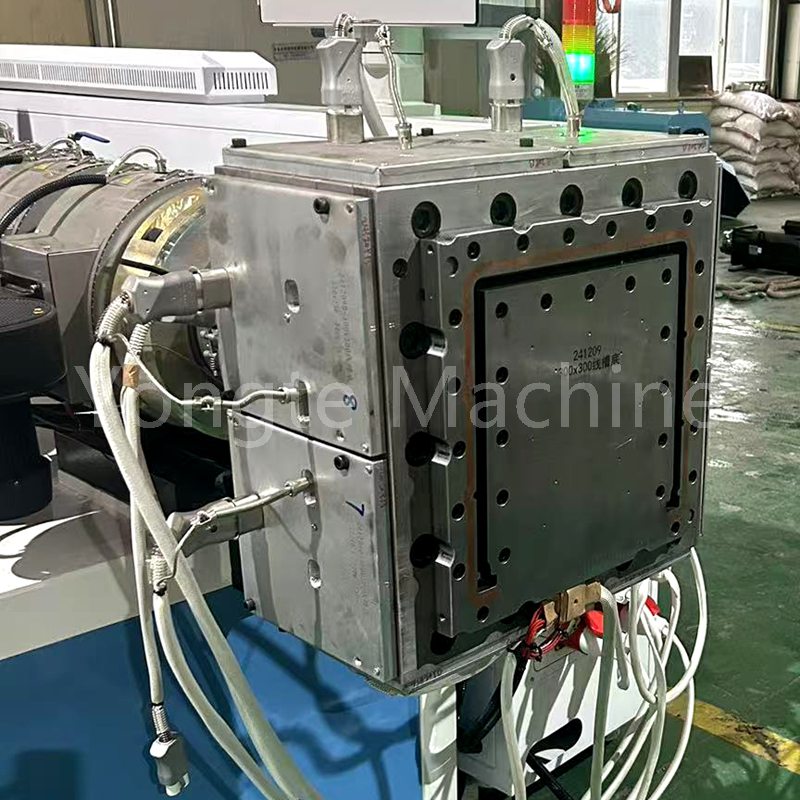

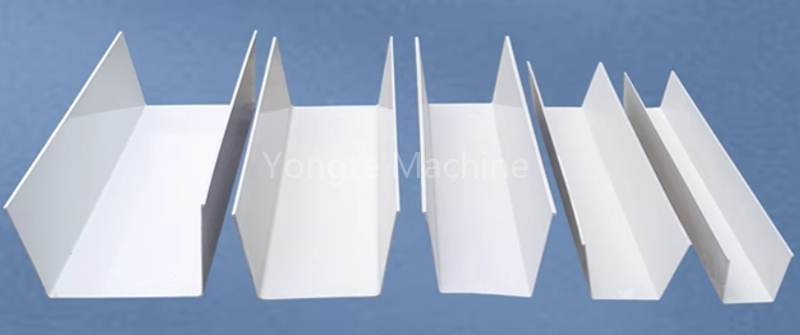

PVC rain gutter profile Mold: It determines the shape and size of the PVC rain gutter. Its design and manufacturing accuracy have a great impact on product quality and appearance. The mold needs to be customized according to different rain gutter specifications and shape requirements to ensure that the extruded rain gutter meets the design standards.

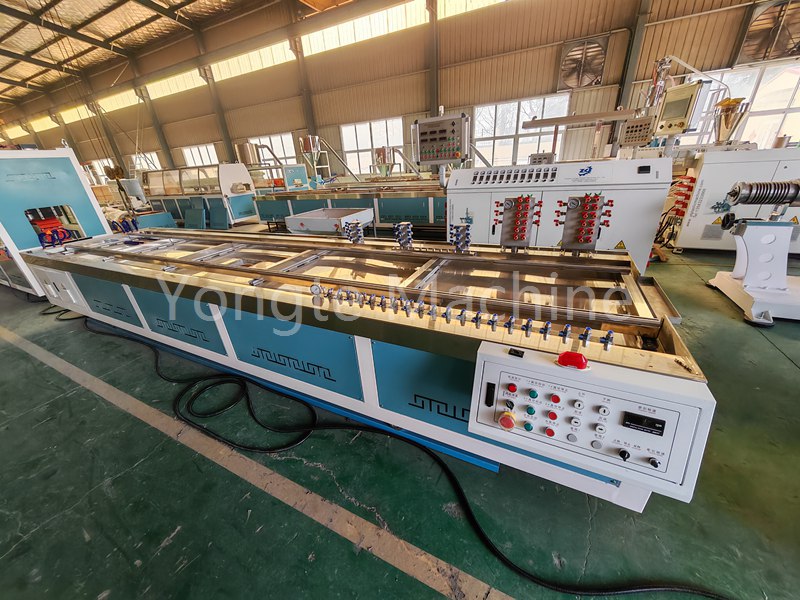

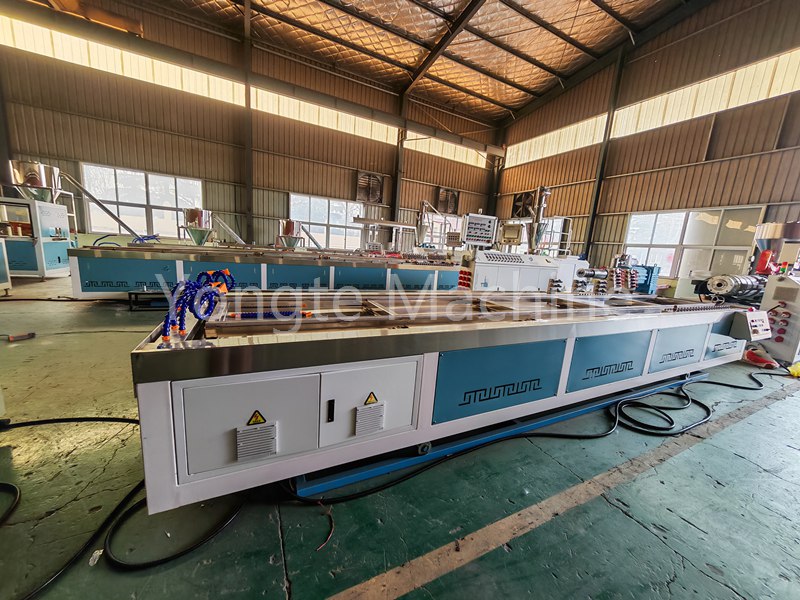

High speed Cooling and calibration table system: vacuum calibration and water cooling workbench is used, which is generally made of #304 stainless steel. The extruded rain trough is adsorbed on the shaping table by vacuum, and cooling water or air cooling is introduced to cool it, so that it can be quickly solidified and maintain the established shape and size.

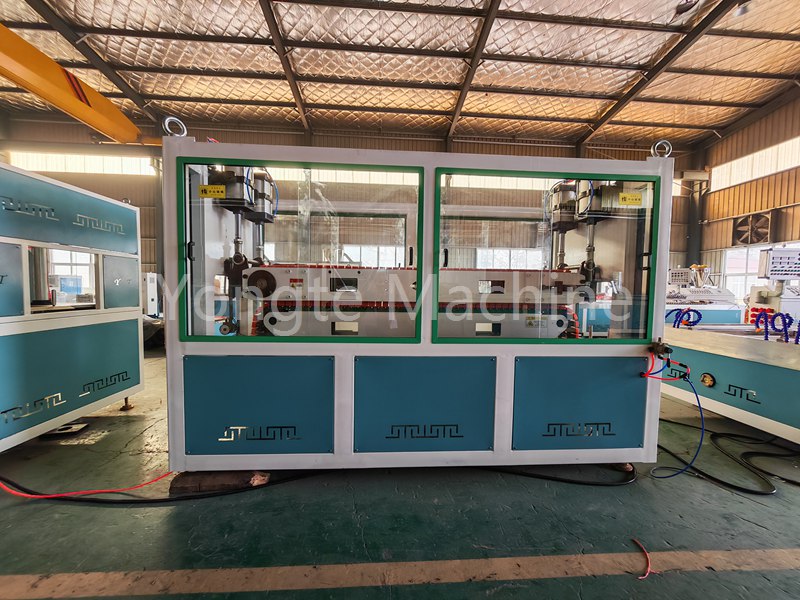

High force double catarpiller traction system: high quality rubber block traction catarpillar is equipped, driven by a motor and a frequency converter. The traction speed can be adjusted according to production needs to ensure that the rain trough can be smoothly pulled forward after cooling and shaping, matching the extrusion speed, and ensuring the continuity of production.

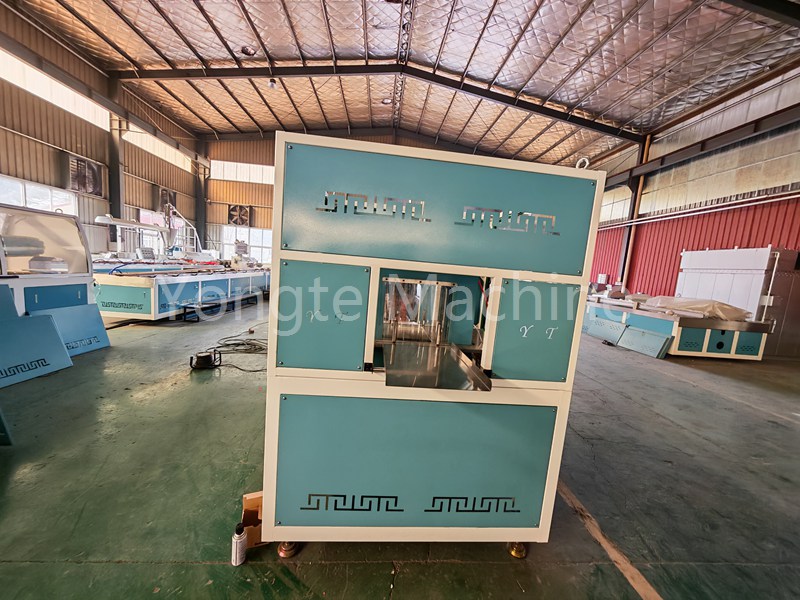

High precision and low noise Cutting system: Alloy saw blade cutting, with dust collection device, low noise and fast cutting speed. The pulled rain trough can be cut to a fixed length according to the set length to obtain the finished product of the required length.
Product stacker system: The cut rain troughs are collected and stacked to facilitate subsequent packaging and transportation. Some palletizing systems also have automatic counting functions.
