How long is the service life of Nano irrigation seepage pipe and traditional drip irrigation pipe?
The service life of nano irrigation seepage pipe and traditional drip irrigation pipe is affected by many factors such as material, environment, maintenance, etc., the specific differences are as follows:
I. Life range and influencing factors of traditional drip irrigation pipe
1. Material determines base life
PE (polyethylene) drip irrigation pipes: Conventional PE pipes typically have a lifespan of 5-7 years, while aging-resistant PE materials (such as those with added UV inhibitors) can last 7-10 years. For instance, aging-resistant PE drip irrigation pipes used in a cotton field in Xinjiang maintained over 90% flow rate for eight consecutive years under standardized maintenance.
PVC (polyvinyl chloride) drip irrigation pipe: the cost is low but the weather resistance is poor, and the life span is generally 3-5 years. In high temperature and drought areas (such as Hexi Corridor of Gansu Province), if no shading measures are taken, the life span may be shortened to 2-3 years.
TPU (thermoplastic polyurethane) drip irrigation pipe: wear resistance and compressive strength are outstanding, the life can reach more than 10 years, suitable for complex terrain or areas with large pressure fluctuations.
2. The use environment significantly affects the life
Climate conditions: If PE drip irrigation pipe is not collected in time in winter in northern China, the service life of PE drip irrigation pipe may be shortened by more than 50% due to low temperature embrittlement; the high temperature and humidity environment in greenhouse will accelerate the aging, and the service life is 1-2 years shorter than that in open environment.
Soil characteristics: Sandy soil has strong friction, and the drip irrigation belt is easy to be worn by sand particles when laying, and its life may be shortened by 1-2 years compared with clay soil. For example, the average life of ordinary PE drip irrigation belt used in sandy land of Zhongwei, Ningxia is only 1.5 years.
Water quality: unfiltered high turbidity water will accelerate the wear of the nozzle. When the blockage is serious, frequent flushing may lead to fatigue and damage of the inner wall, reducing the life by 20%-30%.
3. The critical role of maintenance levels
Regular flushing: Monthly atmospheric pressure flushing (pressure 0.1MPa) can extend the life of drip irrigation pipes by 1-2 years, according to the Ningxia Agriculture and Rural Information Service Platform. For example, in vegetable greenhouses in Shouguang, Shandong Province, weekly flushing has increased the lifespan of patch-type drip irrigation tapes from 3 years to 5 years.
Repair: after each season of use, cut the damaged part and connect it by hot melt, so that the thin wall drip irrigation tape (wall thickness> 0.2mm) can be reused for many seasons.
II. Life performance and technical advantages of nano seepage pipe
1. Material innovation lays the foundation for long life

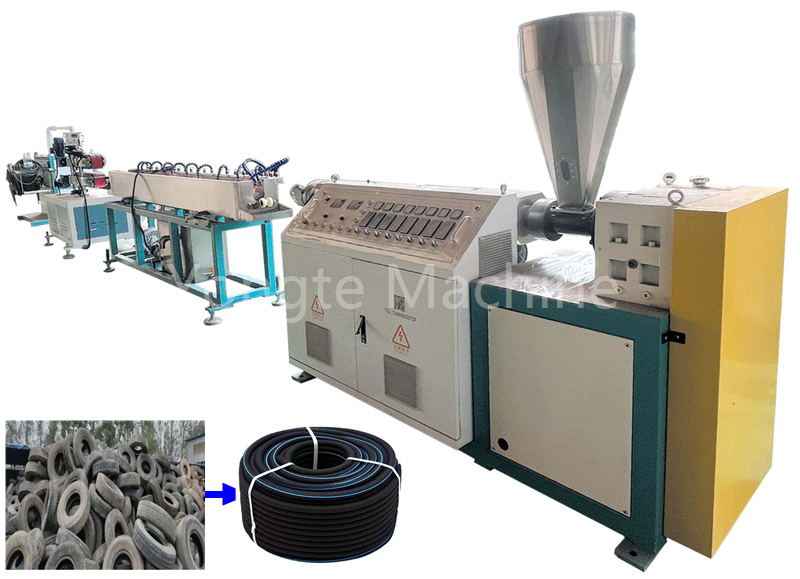

Rubber-based nanocomposites: Prepared by blending waste rubber powder with nano zinc oxide (2-5wt%) to significantly enhance anti-aging performance. Laboratory data shows that after 168 hours of 70℃ heat aging, the tensile strength retention rate remains over 90%, with an actual service life of 5-8 years in practical applications.
Gradient pore structure: the outer rubber foam nanocomposite and the inner polymer nanofiber are combined to form three-dimensional connected micropores (particle size 0.08-0.17mm), which has better anti-clogging ability than traditional drip irrigation pipe and reduces the maintenance frequency.
2. Practical application case verification
Agricultural irrigation: The nano irrigation pipe used in the saline-alkali land of Nanpi County, Hebei province, with a three-stage filtration system (centrifugal + screen + laminated plate), has a flow attenuation rate of less than 12% during continuous operation for 6 years.
Ecological restoration: The Nano irrigation water pipe is used in the grape growing area of Kubuqi Desert. Under the harsh environment with annual average evaporation of 3000mm, the service life of the pipe reaches 7 years, which is more than twice that of the traditional drip irrigation pipe.
Urban greening: The Nano irrigation water pipe embedded in Beijing Olympic Forest Park integrates the Internet of Things sensor to regulate the irrigation amount in real time. After 8 years, it still maintains a permeability efficiency of more than 95%.
3. Maintenance requirements and life assurance
Anti-blocking characteristics: Nano-level micropores (actual pore diameter 0.08-0.17mm) naturally filter impurities, combined with the maintenance mechanism of "constant pressure flushing + high pressure flushing" (constant pressure flushing once a month, high pressure flushing once a quarter), can run continuously for more than 5 years without replacing core components.
Weather-resistant design: the surface is coated with polylactic acid based nano coating, which can resist ultraviolet and soil acid/alkali corrosion, and has stable life in soil environment with pH value of 4-9.
III. Comparative analysis and selection suggestions
1. Life and cost trade-offs
|
type |
Average life expectancy (years) |
Initial cost (yuan/meter) |
Full life cycle cost (yuan/meter/year) |
applicable scene |
|
Ordinary PE drip irrigation pipe |
5-7 |
0.8-1.0 |
0.18-0.20 |
Short-term crops, flat plots |
|
Drip irrigation pipe with high resistance to aging PE |
7-10 |
1.2-1.5 |
0.15-0.18 |
Fruit trees, perennial plants |
|
Nanofiltration pipe |
5-8 |
1.2-1.5 |
0.15-0.19 |
Arid areas, ecological restoration, high value crops |
2. Environmental adaptability comparisons
Extreme climate: The nano irrigation pipe remains flexible in the temperature range of-30℃ to 70℃, while the ordinary PE drip irrigation pipe is prone to brittleness below-10℃.
Complex soil: the wear resistance of nano seepage pipe is superior in sandy soil, and its service life is 2-3 years longer than that of traditional drip irrigation pipe.
3. Long-term economic benefits
While nano-irrigation pipes have a slightly higher initial cost, their water-saving efficiency (40%-50%) and productivity boost (15%-20% per mu) can reduce the investment payback period to 14-18 months. For instance, apple orchards in Shanxi Province adopting these pipes achieved an annual comprehensive benefit increase of 1,200 yuan per mu, significantly outperforming traditional drip irrigation systems.
IV. Maintenance and management points
1. Traditional drip irrigation pipes
Regular flushing: flush once a month to prevent sedimentation; check the blockage of drip head every quarter and replace damaged parts in time. Ningxia Agriculture and Rural Information Service Platform.
Winter protection: In northern areas, the water in the pipeline should be drained before frost to avoid freezing and cracking.
2. Nano irrigation seepage pipes
Filter system maintenance: ensure that the turbidity of irrigation water is less than 0.5NTU, and replace the filter element of laminated filter every six months.
Pressure monitoring: The system pressure is monitored in real time through the Internet of Things sensor to avoid overpressure operation (operating beyond 20% of the rated pressure will shorten the life by 50%).
conclusion
Nano irrigation seepage pipes, through material innovation and structural optimization, outperform traditional drip irrigation tubes in both lifespan and adaptability, particularly excelling in arid, saline-alkali, and sandy environments. While requiring higher initial investment, they deliver lower lifecycle costs with comprehensive advantages including water conservation, efficiency enhancement, environmental sustainability, and durability, making them ideal for future high-efficiency agriculture and ecological restoration. Traditional drip irrigation tubes are better suited for short-term, low-investment conventional farming scenarios. Through proper material selection and standardized installation/maintenance practices, both types of pipes can achieve maximum lifespan, providing robust support for sustainable agricultural development.
