Yongte 75-160mm Co-extrusion Three layer PPR Pipe Production Machine Line is is specially designed for making multi layer of PPR pipe by co-extrusion technology, the PPR pipe structure can be ABA or AB or even ABC.
The PPR pipe production line is used for the production of PPR (Polypropylene Random) hot water pipe. PPR is a new type of polymer material, because of its excellent heat resistance, pressure resistance, environmental protection and convenient installation characteristics, is widely used in building water supply and drainage, HVAC, rural drinking water safety and other fields. the 16-63mm three layer PPR hot water pipe extrusion machine is specially designed for making multi layer of PPR pipe by co-extrusion technology, the PPR pipe structure can be ABA or AB or even ABC.
Three layer PPR hot water pipe extrusion machine is mainly composed of material loader, extruders, die and mold, cooling and calibration tank, pull off tractor, cutting device, and control system, etc. The extruder is the core production machine of the extrusion machine, which is responsible for heating the PPR particles to a molten state and extrusion them through the mold; The cooling and calibration device is responsible for cooling and setting the squeezed PPR pipe in a short time to ensure its dimensional accuracy and physical properties. laser printer machine can be equipped online to printing words(such as pipe size, manufacturer information) on the PPR pipe.
Item
Equipment
1
SJ75/33 single screw extruder
2
SJ65/30 single screw co-extruder
for the middle layer of PPR pipe
3
4
Die and molds
5
SJ25 single screw extruder
for identification marking line
6
cooling and calibration tank
7
Caterpillar hauling off machine
double caterpillar strong force
8
Cutting machine
automatic cutter without dust
9
Automatic Product stacker
6 meter length
10
Electricity control system
equip with ABB inverter, Omron temperature controller, Siemens PLC control, Siemens contractors
Note
for the inner and outer layer of PPR pipe
Auto material loader
with drying function
special designed for three layer PPR pipe making
6 meter length, fast cooling design with both water and vacuum cooling.

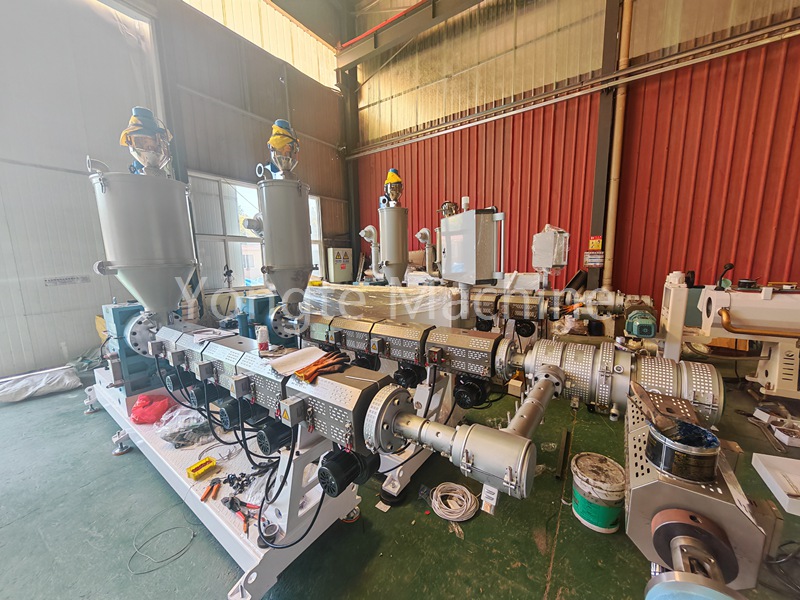

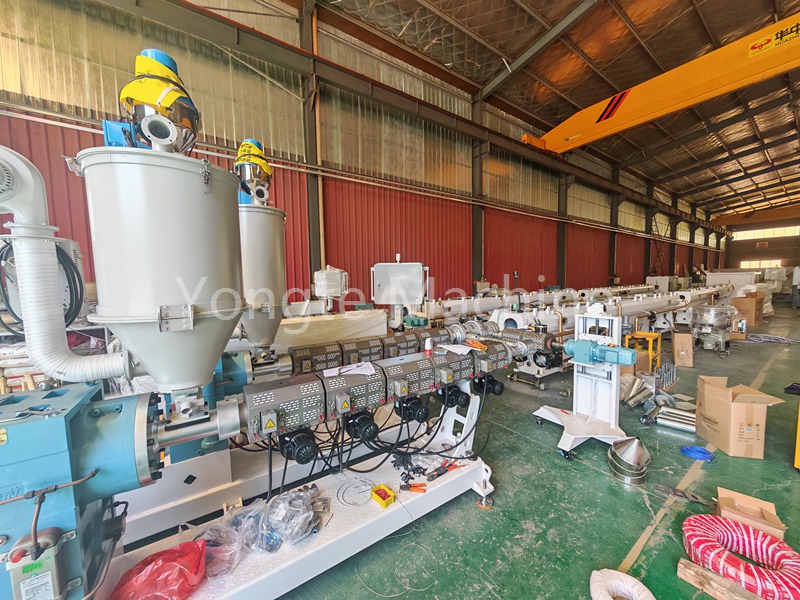

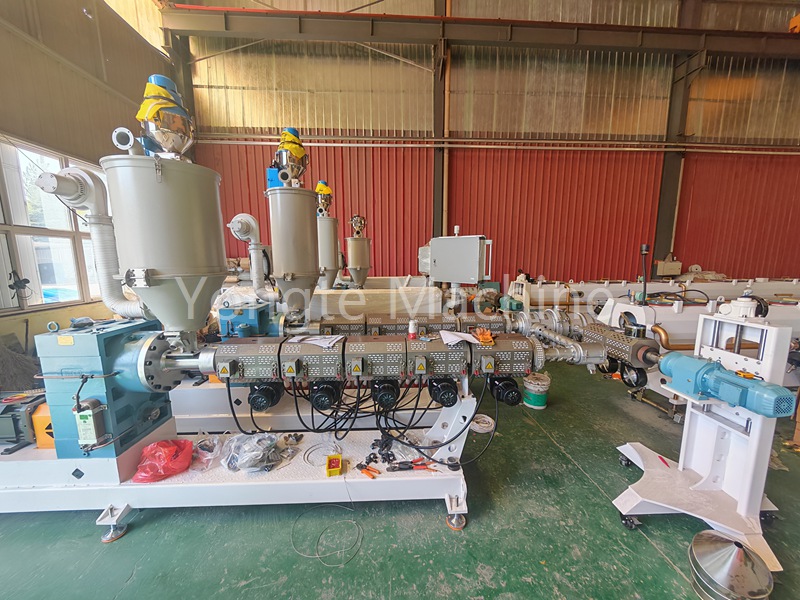

Three extruders for PPR pipe making machine, Main extruder for middle layer, co-extruder for inner and outer layer, color extruder for marking line

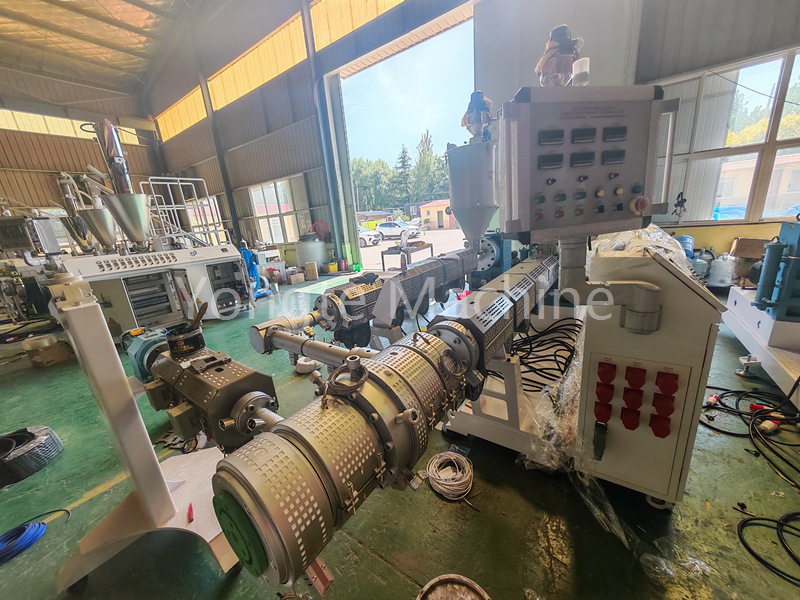

Die head and sizer for three layer PPR pipe co-extrusion

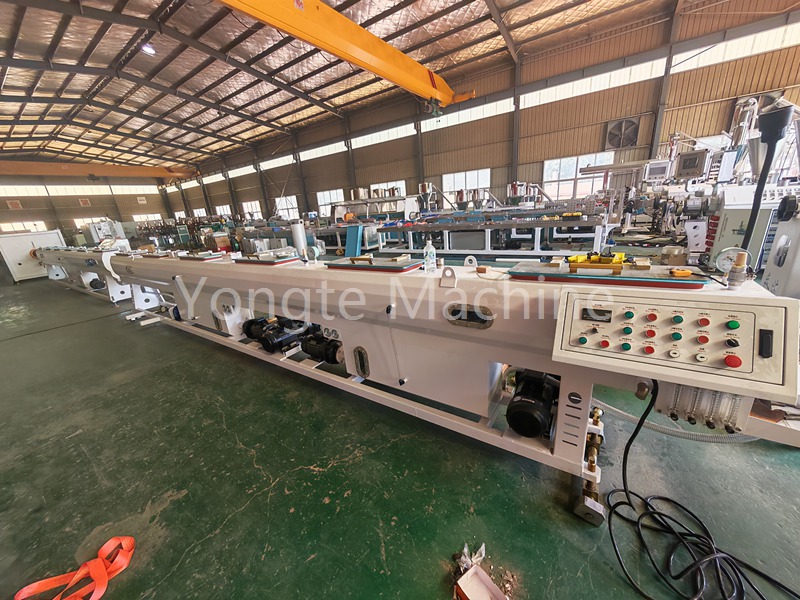

Vacuum cooling tank
Spraying cooling tank

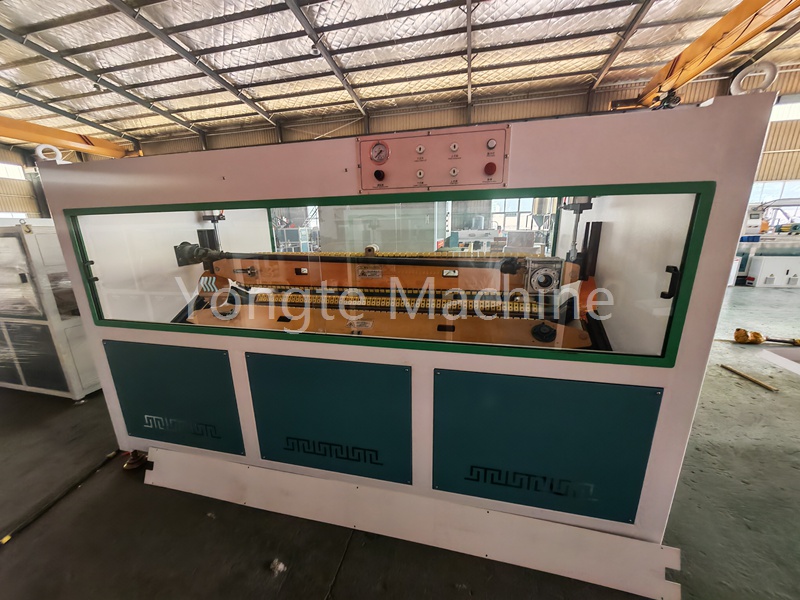

Three caterpillar haul off tractor machine for 75-160mm
Non-dust cutting machine automatic
Laser printer machine
PPR pipe Product stacker
1. Strong and durable, high quality: our wood-plastic production machine is made of high quality materials, durable, can withstand a variety of bad weather and use environment test, to ensure a long time of stable operation.
2. Unique design, excellence: our product design fully considers the user's use experience, every detail has been carefully polished, aiming to bring users the ultimate use experience.
3. Environmental protection, energy saving, green production: wood-plastic production machine in the production process can effectively reduce energy consumption and waste production, in line with the green production concept of modern society.
4. Efficient production and increased production capacity: Our wood-plastic production machine has an efficient production capacity, which can quickly complete a large number of production tasks, help users to increase production capacity, and win more business opportunities.
5. Simple operation, convenient maintenance: our product operation interface is simple and clear, easy to use, and at the same time, it is also very convenient to maintain, which greatly reduces the operating cost of users.
6. Intimate service, the whole worry: we provide a full range of pre-sale, sale and after-sales service, to ensure that users in the use of timely and professional support and help.
7. High cost performance, excellent value for price: our wood-plastic production machine ensures high quality, the price is also very reasonable, so that users really feel the shopping experience of excellent value for price.
8. Intelligent control, easy management: the product is equipped with intelligent control system, users can easily manage the production process through mobile phones or computers, to achieve intelligent production.
