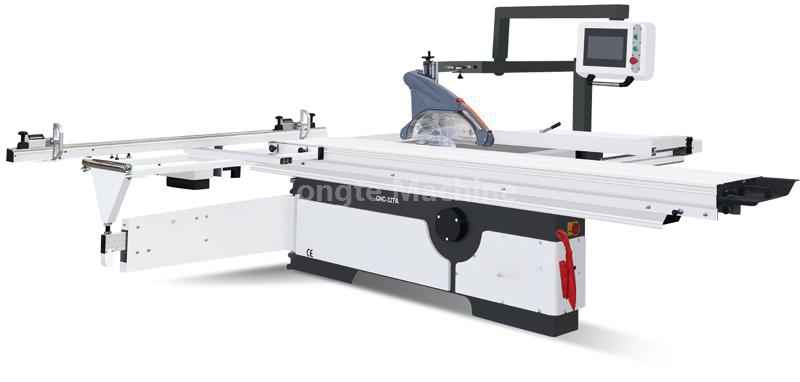

Yongte WPC Door Precision Cutting Machine is specifically designed for cutting WPC door panels and door frame profiles to precise sizes and angles. It features adjustable cutting angles, including 45° and 90° configurations, ensuring accurate dimensional control for door manufacturing.
1) Description
Yongte WPC Door Precision Cutting Machine is specifically designed for cutting WPC door panels and door frame profiles to precise sizes and angles. It features adjustable cutting angles, including 45° and 90° configurations, ensuring accurate dimensional control for door manufacturing.
The machine is equipped with a high-precision servo motor drive system, ensuring stable and reliable cutting performance. It also incorporates an automatic feeding and positioning system, which significantly improves production efficiency and reduces labor intensity. Additionally, the dust collection system effectively reduces dust pollution in the working environment, providing a cleaner and safer production space.
2).Features:
--3200mm cutting length.
-- sliding table, 3200*415mm size.
--electric control for main saw blade up and down, tilt
--45 degree with digital readout.
--5.5kw+1.1kw National standard motor.
--linear guide internal structure, precision, stable.
3).Technical parameter:
|
Sliding table size |
3200*415mm |
|
Gross cut capacity |
3200mm |
|
Width between saw blade&rip fence |
1250mm |
|
Saw blade diameter |
300(250-400)mm |
|
Height of cut (300mm) |
70-80mm |
|
main saw spindle Speed |
4500/6000rpm |
|
Main spindle diameter |
30mm |
|
Tilting saw blade |
0-45-90° |
|
Main motor Power |
5.5kw |
|
Scoring motor power |
1.1kw |
|
Scoring saw blade dia |
120mm |
|
scoring saw blade speed |
8000rpm |
|
Scoring saw diameter |
20mm |
|
Weight |
950kgs |
|
machine body Package size |
2200*1150*1100mm |
|
Sliding table Pack size |
3350*480*320mm |
