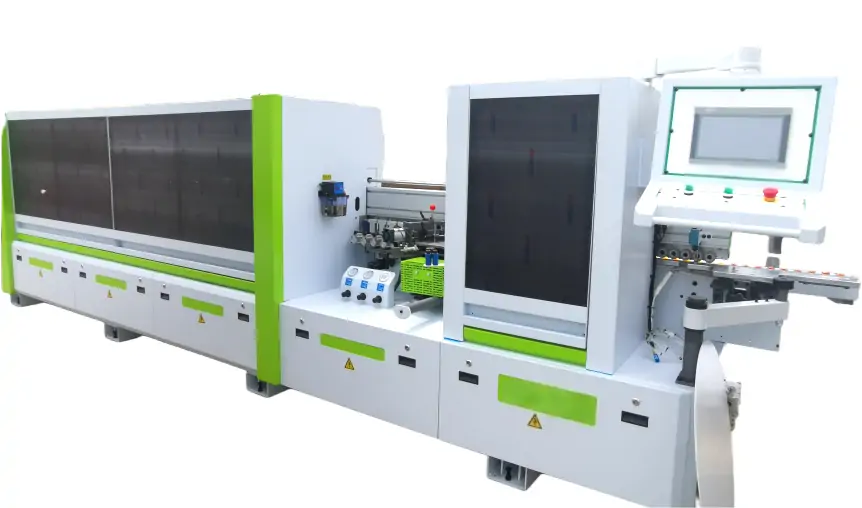

Yongte’s WPC Door Edge Banding Machine is a professional edge-finishing equipment tailored for WPC (Wood-Plastic Composite) door frame manufacturers, integrating advanced automatic edge-banding technology, WPC material-adaptive design, and years of plastic machinery R&D experience. It is designed to solve the pain points of manual edge banding—such as poor adhesion, uneven edge trimming, low efficiency, and high labor costs—in WPC door frame production. This machine realizes high-precision, efficient, and standardized edge finishing, significantly improving the aesthetic quality and structural stability of WPC door frames, and becoming a core equipment for enterprises upgrading their production lines.

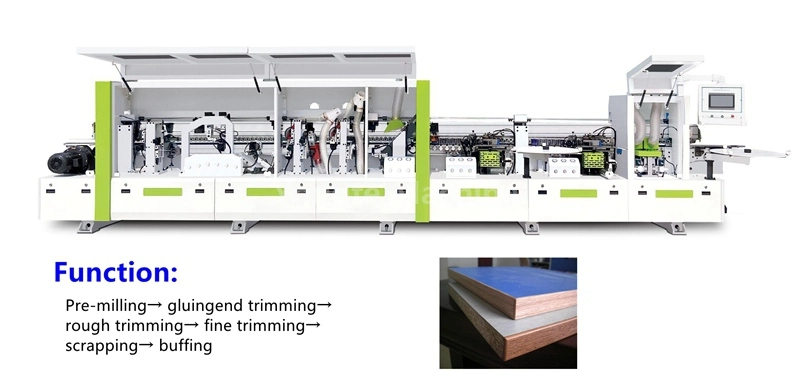

pre-milling→gluing
end trimming→rough trimming
fine trimming
scrapping→buffing
--suitable for panel furniture, customized furniture, cabinet, wardrobe, office furniture, solid wood furniture, tables and chairs, doors and windows, wood products, decoration industry, etc

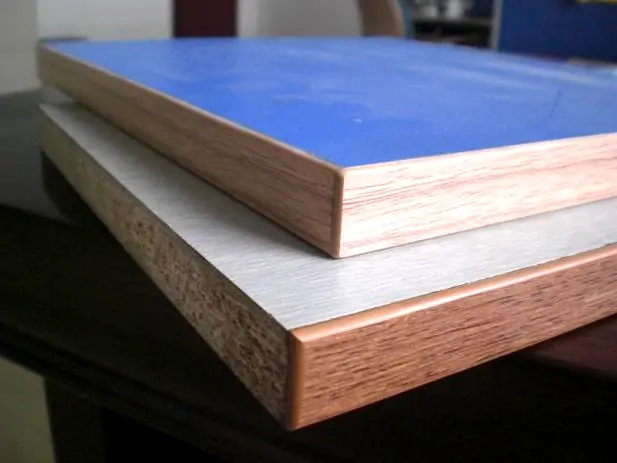

--suitable for density board, ecological board, multilayer board, particleboard, flat solid wood board, aluminum honeycomb board and other boards.
|
Overall Size(L x W x H) |
5800*970*1600mm |
|
Working Pressure |
0.6Mpa |
|
Total power |
18KW |
|
Feed speed |
15-23m/min |
|
Electric lifting |
0.37KW |
|
Panel Thickness |
10-60mm |
|
Sheet length |
≧120mm |
|
Panel Width |
≧60mm |
|
Edge thickness |
0.4-3mm |
|
Function picture |
Description |
|
|

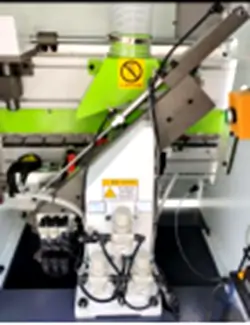

Pre-miling: Panel edge surface without any imperfections before the gluing operation. It utilizes 2 tools with opposing rotation and timed intervention that, through the removal operation, corrects any panel imperfections caused by the saw cutting process and panel storage. |
|
|
Gluing： The 6-wheel press fit is more precise than the 4-wheel,make glue line slight, different thickness of wood veneer all can be easily moved. |
|
|

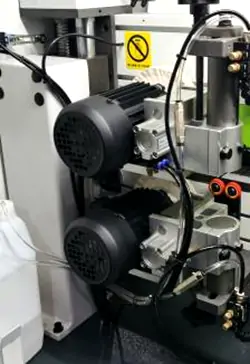

End cutting Cut off the excess edge banding at both ends of the sheet More stable, more stable all together |
|
|

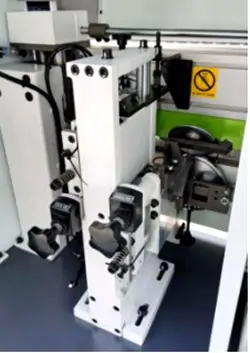

Rough trimming: The knife trims off the excess edge banding to form rounded corners, and the trimming is more beautiful.
|
|
|
Fine trimming: The six-edged R knife trims off the excess edge banding to form rounded corners, and the trimming is more beautiful.
|
|
|
Scrapping: the super-hard alloy R knife scrapes the fine lines of the edge banding to make it smooth. |
|
|

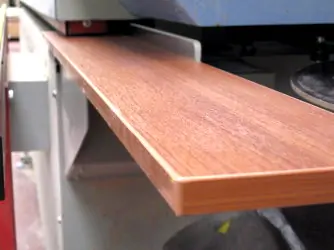

Buffing groups: The polishing cloth wheel quickly polishes the edges of the edge banding, which is smoother and more beautiful
|
