Conical twin-screw extruder with CE certificate

Yongte is a professional manufacturer of Conical twin-screw extruder with CE certificate, with excellent product quality and thoughtful service, which is widely used in the production of plastic pipes, profiles, plates and other products.

Model:SJSZ65/132

Send Inquiry

Product Description

Buy Yongte Conical twin-screw extruder with CE certificate

The conical twin-screw extruder is an efficient mixing and extrusion equipment with the following characteristics:

- Low shear rate, material is not easy to decompose, plasticizing and mixing are uniform, and the quality is stable.

- High output, wide application range, and long service life.

- Various thermoplastics (especially hard polyvinyl chloride powder) can be directly extruded into plastic products such as tubes, plates, sheets, rods, films and profiles, and various plastics can also be modified and powder granulated.

Its main components and functions include:

- Screw: Usually adopts a conical design, and the screw groove volume gradually decreases along the extrusion direction, which is conducive to heating or cooling the material and realizing continuous and smooth plasticization of the material.

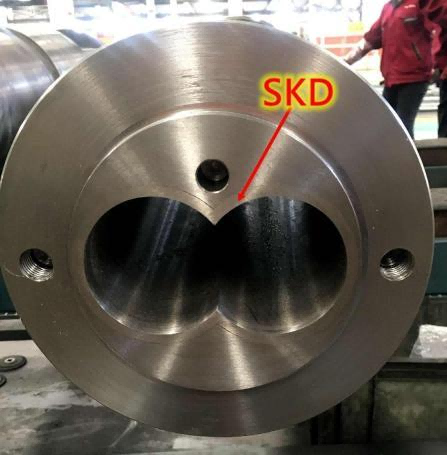

- Barrel: SKD coated inner for full barrel

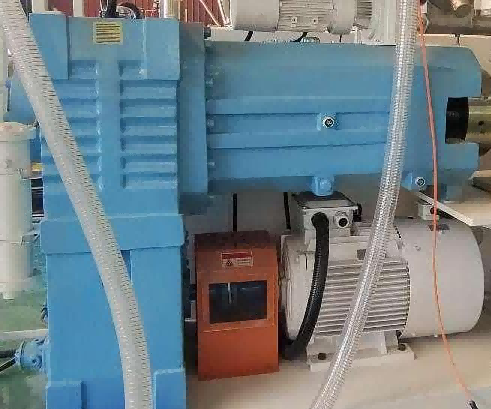

- Transmission system: Provide power for the screw. The transmission part of some equipment adopts a new variable frequency motor drive or DC motor, which has stable operation, large transmission torque, high efficiency, and can achieve stepless and smooth speed regulation through a frequency converter or speed regulator.

- Heating and cooling system: Ensure that the material is plasticized and extruded within a suitable temperature range. For example, the barrel is equipped with a cast aluminum heater, which has high thermal efficiency, fast and uniform heating; some are also equipped with cooling devices such as cooling fans.

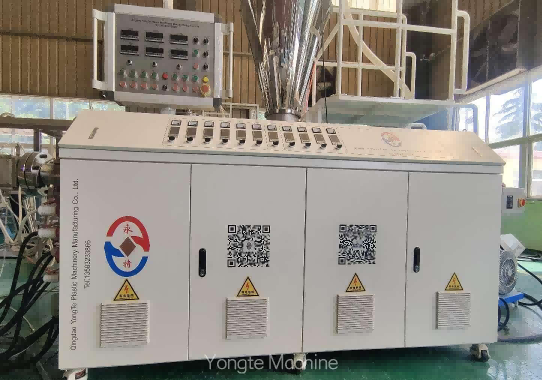

- Control system: There are two types of control: ordinary control and microcomputer control, which can accurately control parameters such as temperature and speed. Some equipment also has functions such as overload protection and fault alarm.

- Feeding device: such as a single-screw metering feeding device, which can achieve quantitative feeding.

- Vacuum exhaust system: effectively remove gas from the material and improve the quality of the product.

Conical twin-screw extruders are widely used in the production of plastic pipes, profiles, plates and other products.
