Yongte is professional manufacturer for plastic pipe making machine, we equip 16-32mm PE PP plastic pipe auto winding and packing machine for customer if required, it includes auto pipe arrangment,auto winding,auto cutting,auto changing roll,auto pp strap packing functions
16-32mm PE PP plastic pipe auto winding and packing machine
The automatic plastic pipe winding and packing machine is a key equipment in the plastic pipe production line. It is mainly used to realize the automatic winding, cutting, bundling and unloading of pipes. It is widely used in the production of small-diameter pipes such as PE, PERT, and aluminum-plastic composite pipes. The equipment integrates automatic tube feeding, clamping, cutting, reel changing, bundling, and unloading functions, seamlessly integrating with the extrusion production line. A servo motor + high-precision sensor combination ensures stable reel tension. The dual-station design automatically switches between empty and finished reels, with a reel change time of ≤ 10 seconds. After reeling is completed, the equipment automatically bundles the reels using hot melt welding.
1. Equipment composition and functions
|
1.1 |
Servo pipe arrangement device |
|
1.2 |
double-station winding device |
|
1.3 |
automatic roll changing device |
|
1.4 |
automatic cutting device |
|
1.5 |
Meter counting function |
| 1.6 | Auto PP strap packing device |
|
1.7 |
PLC control system |

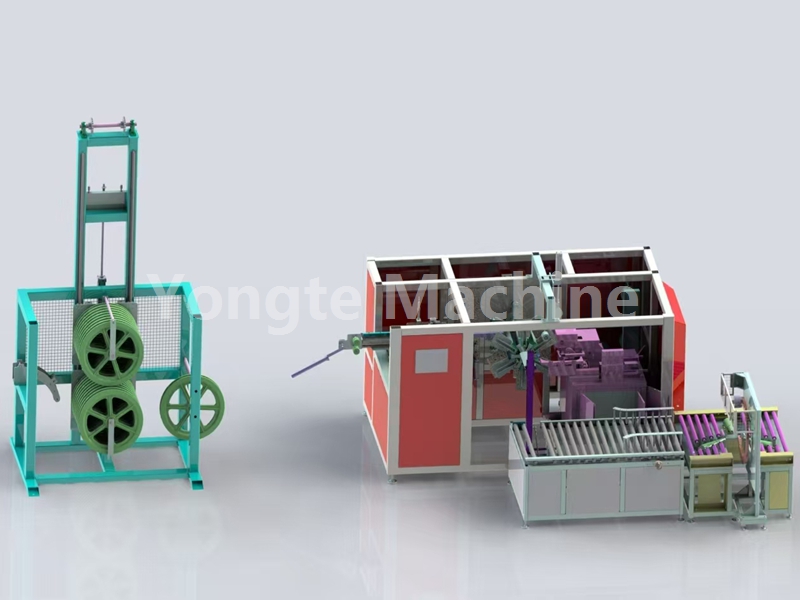

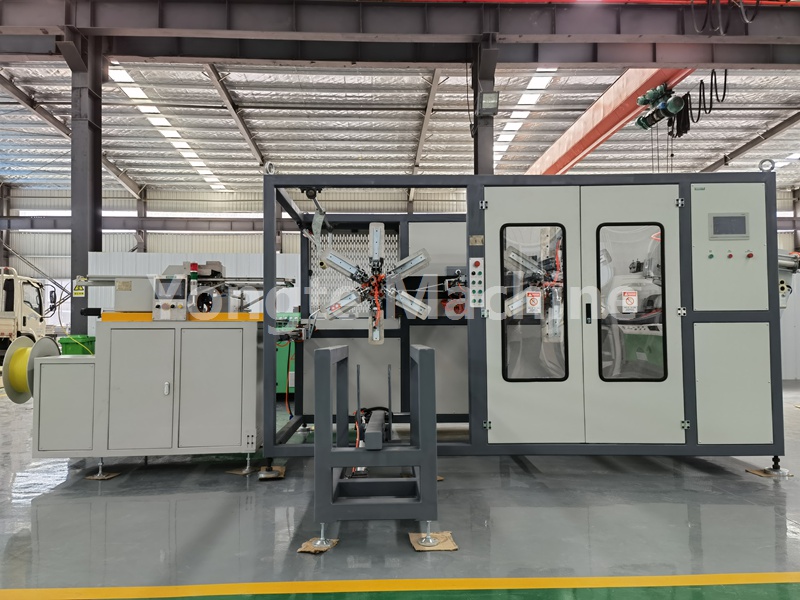

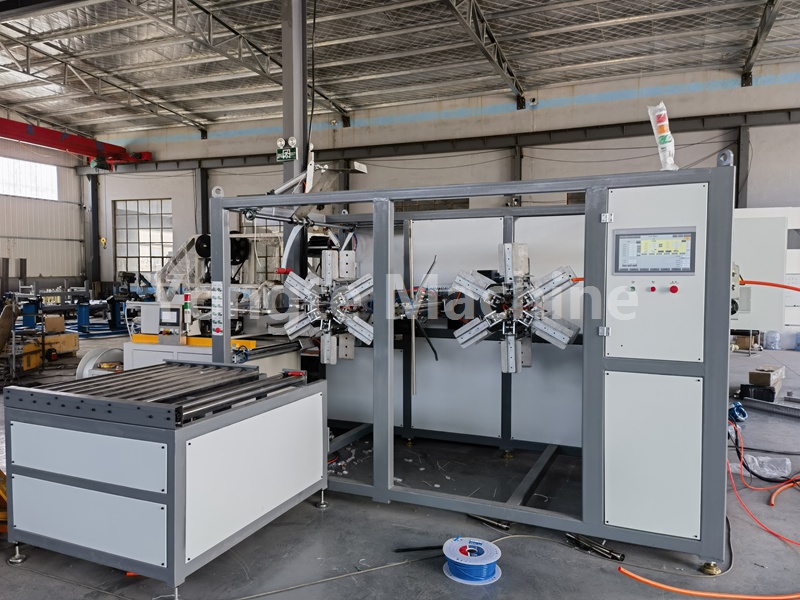

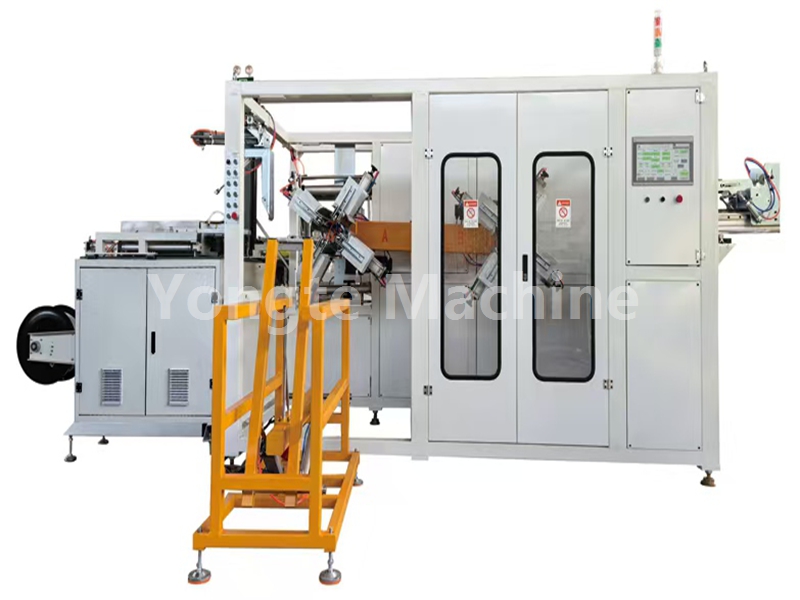

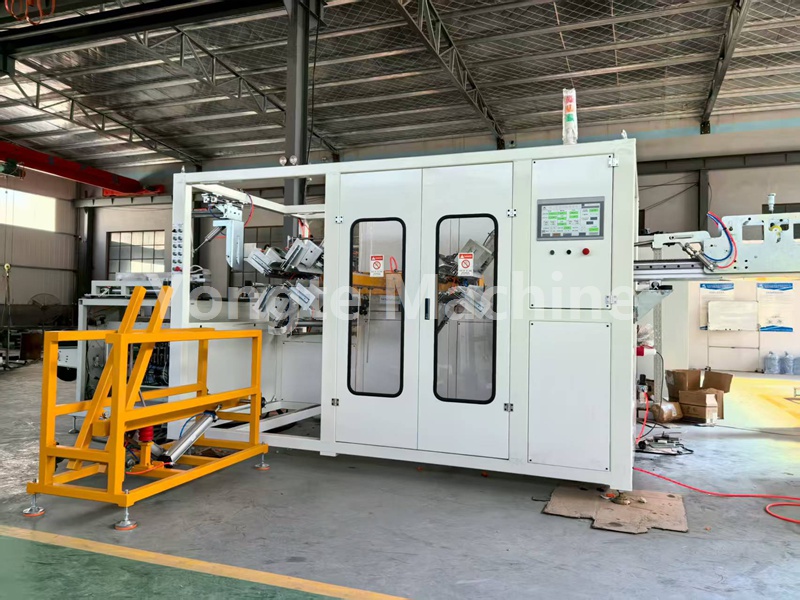

2. Pictures of Auto winding and packing machine
3. Technical parameters
3.1 double station auto winder
Model
YT32ADW
YT63ADW
Quantity of station
double-station
double-station
Quantity of paddle
6 pcs
6 pcs
Pipe diameter range
15-32mm
16-63mm
Roll width
200-350mm adjustable
250-400mm adjustable
Roll inner diameter
450-600mm adjustable
800-1300mm adjustable
Max. Winding speed
< 50meter/minute
<20meter/minute
Machine touch surface
Galvanized
Galvanized
Installation power
Around 8kw
Around 12kw
3.2 double station auto packing equipment
