WPC Granulation Machine For Poland
Yongte WPC Granulation Machine for Poland Market
1. Case Overview
Yongte parallel co-rotating twin-screw WPC granulation line is CE certified, fully adapted to Poland’s 380V/50Hz industrial standard, tailor-made for European WPC manufacturers focusing on recycled PP/PE + high wood flour loading (60–70% wood fiber) pellet production.
Yongte has successfully delivered SH75 WPC granulation lines to Polish clients for outdoor decking, fence, wall cladding and garden furniture pellet raw material production.

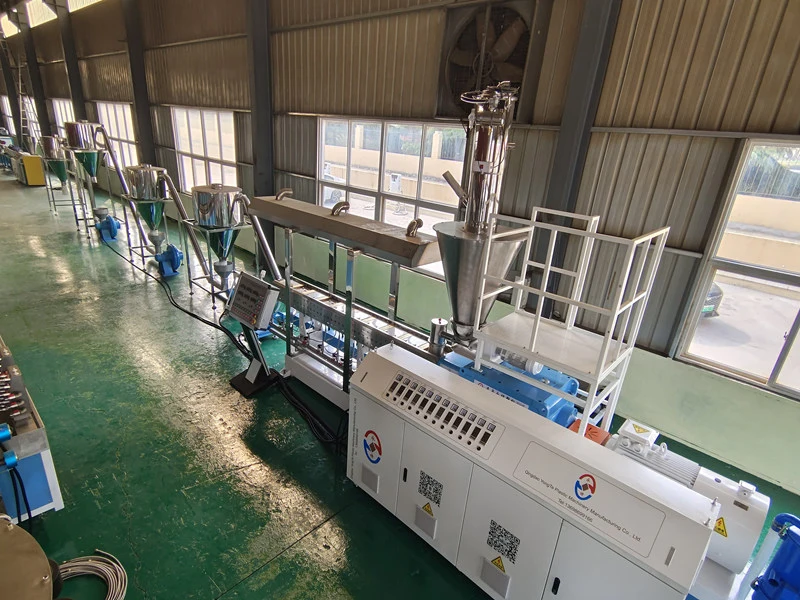

Full Line Standard Configuration for Poland
- Automatic forced feeding & mixing unit (304 stainless steel hopper, anti-block design for dry wood powder)
- SH series parallel twin-screw extruder (bimetallic screw & barrel, high torque for high-fiber compounding)
- Multi-stage vacuum exhaust system (solve moisture & bubble issue for European high-quality pellets)

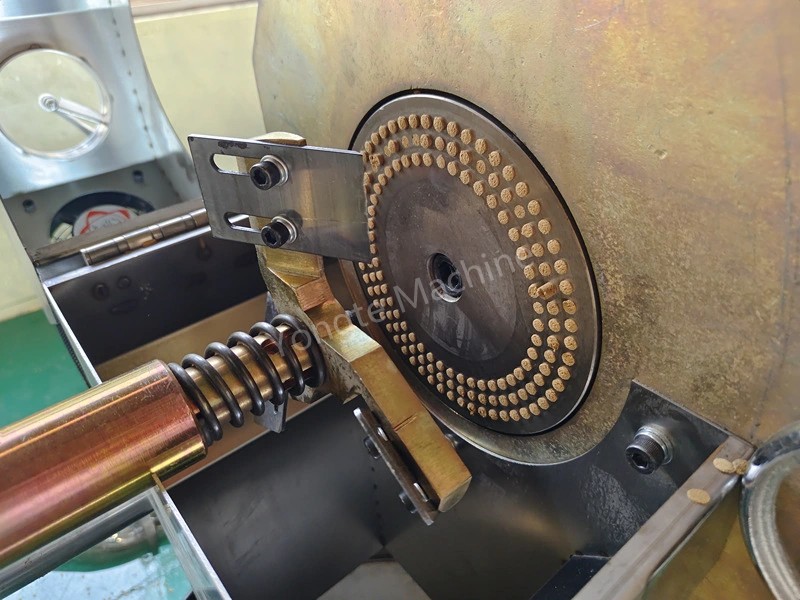

- Die-face hot cutting pelletizer / strand water cooling pelletizer (optional per Polish client demand)
- 3-level stainless steel air cooling conveying & screening system (low noise, meets EU environmental standards)

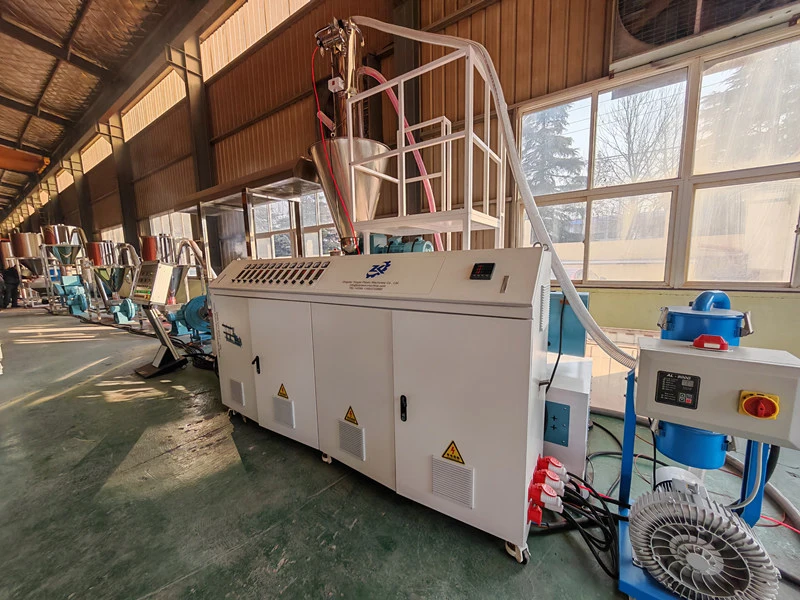

- Siemens PLC + touchscreen intelligent control cabinet (Polish/English bilingual operation interface)
- Central dust collection system (compliant with Poland industrial waste gas emission regulations)
2. Core Technical Models & Parameters
| Model | Screw Diameter | Main Motor | Output (kg/h) |
|---|---|---|---|
| SH65 | 63 mm | 55 kW | 250–350 |
| SH75 | 71 mm | 90 kW | 400–600 |
| SH92 | 92 mm | 160 kW | 800–1200 |
Key processing capacity: Stable compounding of recycled PE/PP plastic + 50–70% wood flour, rice husk, sawdust waste biomass, fully fit Poland’s waste wood & plastic recycling policy requirements.
3. Unique Advantages Suited to Poland & EU Market
3.1 EU Standard Certification & Local Compliance
- Complete CE mechanical & electrical certification, meets Poland PN-EN industrial safety norms; all core electric parts: ABB inverter, Siemens contactor, Omron temperature controller, easy local spare parts purchase in Poland.
- Low-noise design + closed dust removal system, satisfy EU factory environmental inspection standards.
- Voltage, frequency, wiring standard customized to Poland 380V/50Hz three-phase power supply.
3.2 High Adaptability to Central European Raw Materials
Poland has abundant sawmill wood waste, agricultural straw and post-consumer plastic packaging waste. Yongte screw segmented building-block design achieves uniform melting & dispersion under high wood powder loading, avoiding incomplete mixing, bubbling and brittle pellets common in ordinary granulators. The finished WPC pellets are directly applicable for downstream extruders to produce anti-freeze outdoor WPC profiles suitable for Poland’s cold winter climate.
3.3 Energy Saving & Low Operation Cost (Critical for European High Electricity Price)
- Optimized segmented heating system reduces power consumption by 15–20% vs traditional granulation lines, cutting long-term production costs for Polish customers.
- Wear-resistant bimetallic screw barrel service life extended 2–3 times, reduce frequent replacement spare parts cost and downtime loss.
3.4 Professional Poland After-Sales Support
- 3-year core screw & barrel warranty, 1-year full machine general warranty.
- Overseas engineer team available for door-to-door installation, commissioning and worker training in Poland.
- Local fast spare parts warehouse cooperation with EU partners, 3–7 days delivery of wearing parts to Poland port.
- Free WPC formula technical guidance for European climate: anti-UV, low-temperature resistant pellet formulation.
4. Application of WPC Pellets Made by Yongte Machine in Poland

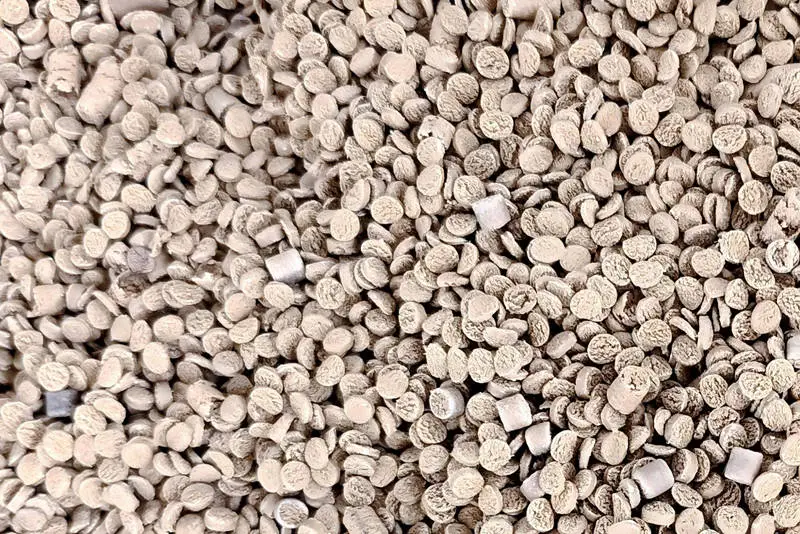

The compound pellets produced by this line are widely processed into mainstream European WPC products:
- Outdoor decking, terrace floor, garden fence & railing
- Wall cladding, outdoor pergola, flower box, landscape components
- WPC panels, construction formwork, logistics pallets
High torque twin-screw design ensures stable production of 60–70% wood flour compound pellets for outdoor decking, fence and garden furniture. We provide 3-year core parts warranty, on-site installation service in Poland and local fast spare parts supply across Europe.
If you are planning to expand your WPC pellet production or build a new recycling compounding plant in Poland, welcome to inquiry our detailed catalog, technical drawings and factory video. We can arrange online video factory inspection at your convenience.
