Solid Foam WPC Door Frame Turnkey Extrusion Line for Indian Client
Custom Solid Foam WPC Door Frame Turnkey Extrusion Line for Indian Client
1. Project Technical Background & Defined Client Technical Constraints
The Indian construction sector has sustained growing demand for solid foamed WPC door frames featuring high structural rigidity, zero hygroscopic swelling and low surface maintenance. The client’s existing conventional hollow WPC profile extrusion lines failed to satisfy the forming requirements of thick-wall solid foamed sections, presenting the following core technical defects:
- Unstable foaming homogeneity: Standard screw plasticization modules cannot achieve uniform dispersion of foaming agents in high wood-flour loading formulations, resulting in inconsistent cell density across profile cross-sections, surface pinholes and variable linear weight.
- Insufficient stress relief during sizing: Short standard cooling calibration tanks induce uneven solidification of thick solid blanks, generating residual internal stress, permanent profile warpage and out-of-tolerance flatness/straightness.
- Poor adaptability to regional raw materials: Generic extrusion barrels lack temperature and shear optimization for locally supplied Indian PVC resin, native wood fiber and regional compound additives, leading to frequent melt scorching and high finished scrap ratio.
- Discrete downstream auxiliary equipment: Non-synchronized traction and cutting units introduce dimensional deviation, excess off-cut waste and reliance on manual process supervision.
To resolve the above multi-dimensional technical bottlenecks, Yongte Plastic Machinery delivered a fully customized turnkey solid foam WPC door frame extrusion production line with targeted mechanical, fluid thermal and control system optimization matched to Indian raw material properties and local power grid conditions.
2. Core Customized Technical Configuration of the Extrusion Line
The complete production line adopts a segmented modular design consisting of high-torque twin-screw extrusion unit, 9-meter extended vacuum cooling calibration platform and fully servo-driven automated downstream processing system, with proprietary technical optimizations for solid foamed WPC forming.

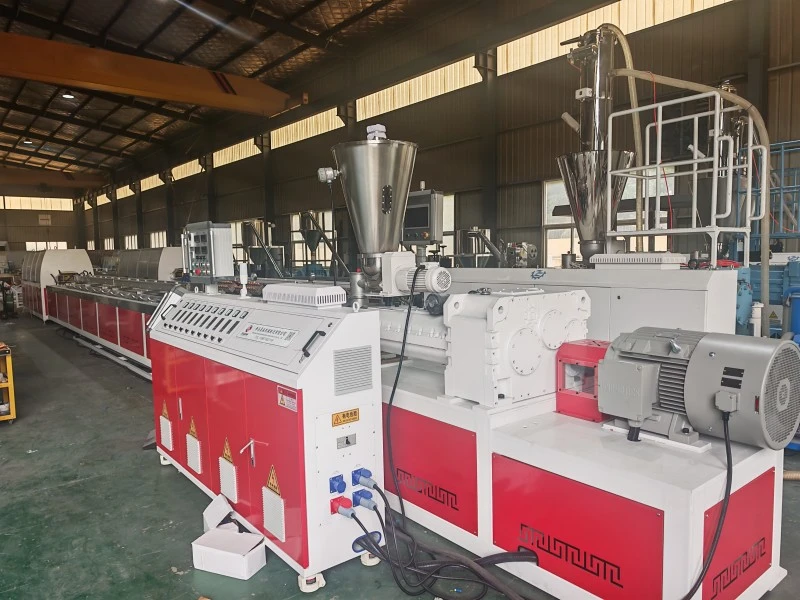

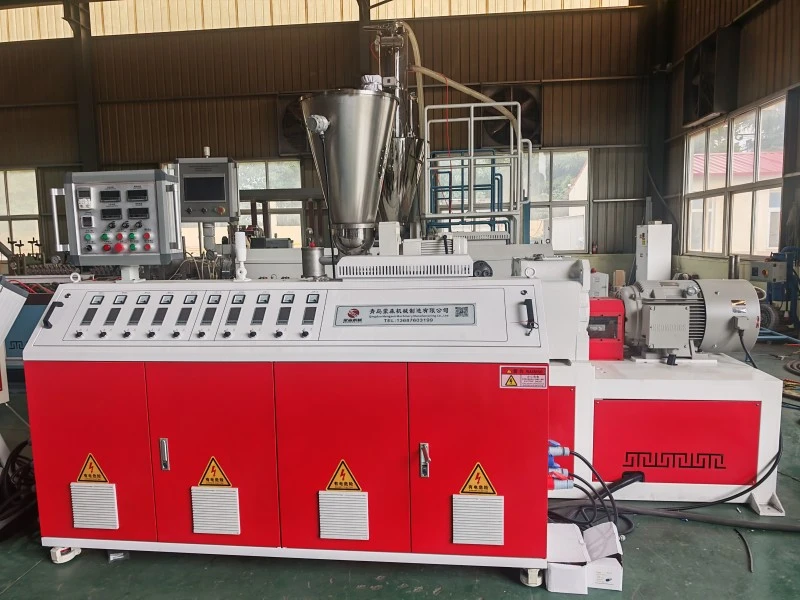

2.1 High-Torque Co-Rotating Twin-Screw Extruder (Core Plasticization Module)
Purpose-engineered for high-filler solid foam WPC compounding and extrusion:
- Optimized screw & barrel assembly: Segmented screw elements with differential shear/compression ratios are configured for high wood flour loading systems; the barrel adopts bimetallic wear-resistant lining to resist abrasion from fibrous fillers, realizing homogeneous melting, stable melt viscosity and uniform distribution of foaming additives.
- Multi-zone closed-loop thermostatic control system: Independent PID heating and water cooling loops are deployed for each plasticization zone, with real-time melt temperature feedback to eliminate local overheating and prevent thermal degradation of PVC matrix and foaming agents.
- Dual gravimetric/volumetric metering feeding system: Synchronized loss-in-weight feeders for wood fiber, PVC pellets, foaming masterbatch and functional additives implement closed-loop flow calibration, controlling single-meter profile weight tolerance within ±1.2% and stabilizing cross-section foaming density.

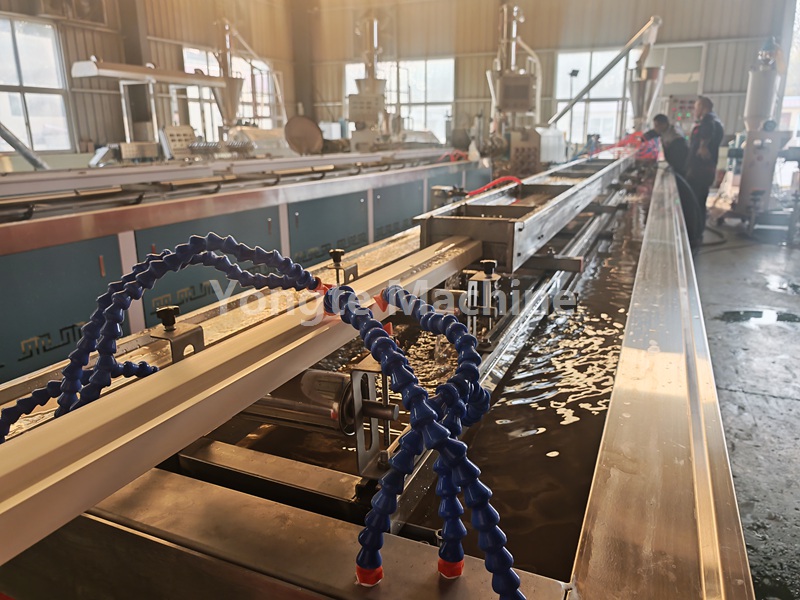

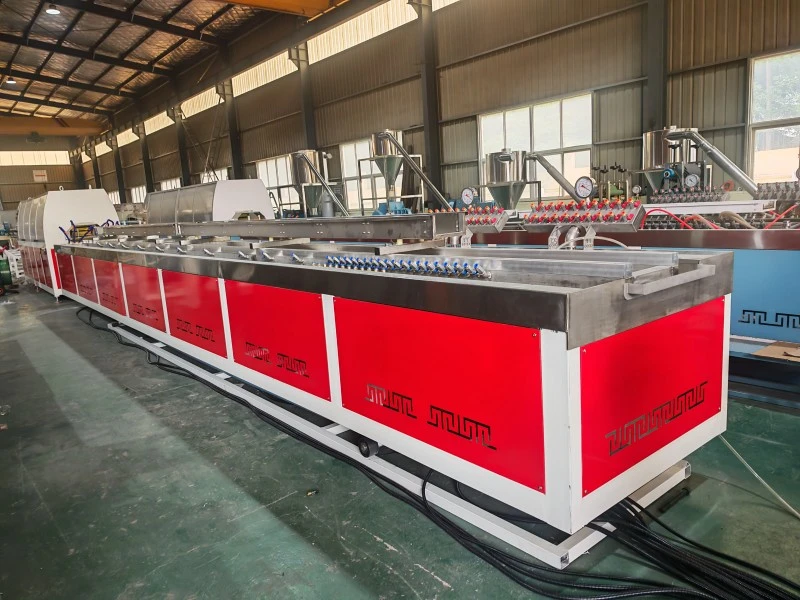

2.2 Custom 9-Meter Ultra-Long Multi-Stage Vacuum Calibration & Cooling Platform
The differentiated technical highlight of this Indian project, designed for thick solid WPC profile low-stress forming:

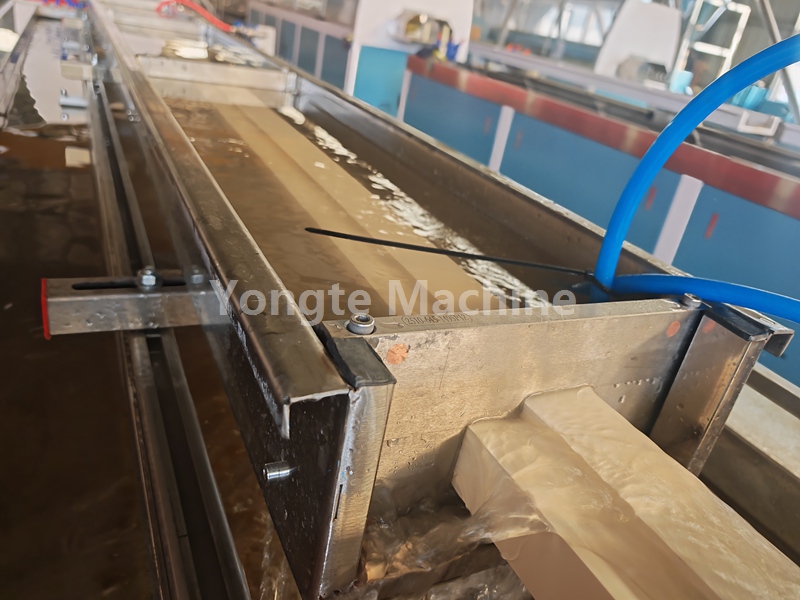

- Graded multi-stage vacuum sizing structure: Sequentially arranged high-precision alloy sizing sleeves with gradient negative pressure regulation; staged vacuum adsorption restricts foaming expansion in controlled intervals to guarantee consistent outer contour dimensional accuracy.
- Combined spray + immersion closed-loop water cooling circulation: Recirculating cooling water with constant temperature control flows through the entire 9-meter tank body; gradual and uniform heat extraction eliminates radial temperature difference of thick solid blanks, suppressing residual forming stress.
- Extended cooling stroke technical advantage: The 9-meter forming length extends the profile cooling and stress relaxation cycle, effectively mitigating post-forming warpage, torsion and shrinkage deformation; finished straightness tolerance complies with high-grade architectural WPC profile standards.
2.3 Integrated Automated Downstream Continuous Processing System
Fully synchronized servo-driven auxiliary equipment to realize continuous unmanned extrusion forming:

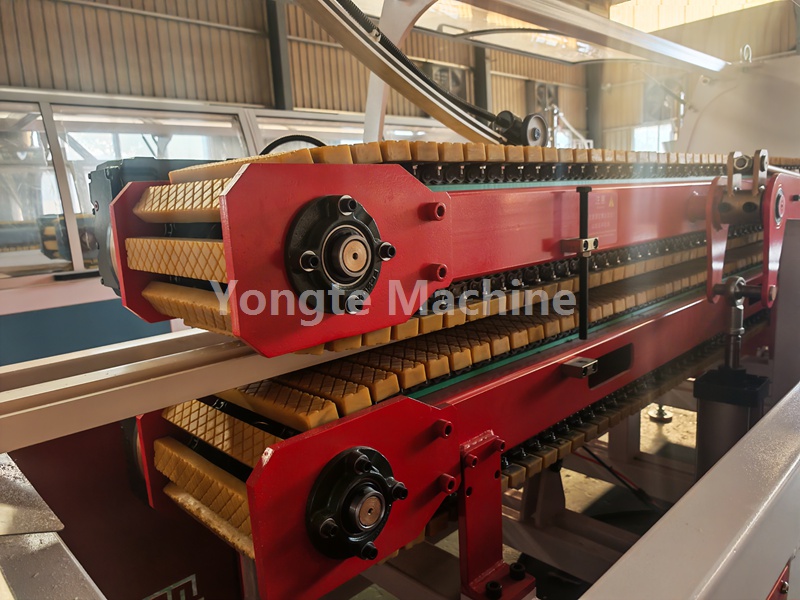

- Heavy-duty caterpillar haul-off unit: Dual-track traction structure with vector frequency conversion speed regulation, providing constant and uniform drawing tension matched to extruder output rate to avoid profile tensile deformation.
- Servo flying saw cutting module: High-precision encoder length measurement paired with AC servo cutting drive; vertical & horizontal cutting positioning accuracy ≤ ±0.5mm, clean kerf without edge burrs, minimizing material waste.
- Centralized PLC+HMI process control system: Integrated industrial touchscreen human-machine interface realizes real-time monitoring and closed-loop adjustment of all core process parameters (zone temperature, screw speed, vacuum negative pressure, traction velocity, cutting length); all process parameters can be stored and recalled for repeatable batch production.
3. Regional Technical Optimization for Indian Production Conditions
Targeted mechanical and electrical modifications to adapt to local manufacturing environments:
- Raw material compatibility calibration: Screw shear ratio, barrel temperature curve and feeding proportion algorithms are calibrated for Indian local PVC grades, regional wood flour and domestic composite additives, without additional formula modification by the client.
- Power fluctuation adaptive electrical design: Main drive inverters, temperature control modules and vacuum pumps are upgraded with wide-voltage electrical components to counteract unstable local grid voltage, reducing equipment shutdown failures caused by power surges.
- Maintainability structural optimization: Quick-disassembly connections are adopted for wearing parts (screw elements, sizing sleeves, traction rubber blocks); inspection and maintenance points are centralized to lower on-site technical operation thresholds for Indian maintenance personnel.
4. Technical Performance Deliverables & Client Production Benefits
- Consistent foamed microstructure: Uniform closed-cell foam structure throughout solid cross-section; finished WPC door frames achieve specified flexural strength, impact resistance and moisture barrier performance, applicable for both interior and exterior architectural installation.
- Dimensional stability improvement: Post-forming shrinkage and warpage defects are drastically reduced, finished product reject rate decreased by over 60% compared with the client’s original hollow profile equipment.
- Filler utilization efficiency boost: High-precision compounding system supports maximum loading of low-cost local wood fiber raw materials, lowering comprehensive raw material manufacturing costs.
- Automated production reduces labor dependency: Centralized intelligent control minimizes manual real-time intervention, cutting long-term factory labor operation costs.
Technical Statement from Yongte Senior R&D Engineer
“Based on comprehensive analysis of solid foam WPC forming rheology and the client’s Indian local raw material spectrum, we implemented full-chain customization on extrusion plasticization, gradient vacuum sizing and long-stroke low-stress cooling. The 9-meter extended cooling platform is a targeted technical solution to resolve the core forming defects of thick solid foamed profiles, enabling the client to stably produce dimensionally compliant high-performance WPC door frames to meet India’s construction material market specifications.”
5. Post-Delivery Technical Support Scheme
The complete turnkey line has passed factory acceptance test (FAT) and is ready for ocean shipment to India. Upon equipment arrival at the client’s workshop, Yongte overseas technical team will provide full-lifecycle technical services:
- Full mechanical assembly, pipeline wiring and electrical commissioning;
- Full-process technical training covering formula debugging, parameter calibration, routine equipment maintenance and fault diagnosis for local operators and maintenance engineers;
- Permanent remote online technical support and standardized spare parts supply channel to guarantee continuous long-term stable production.
6. Yongte Technical Strength for WPC Extrusion Projects
As a specialized R&D and manufacturing enterprise for high-performance plastic and wood-plastic composite extrusion equipment, Yongte independently develops core technologies including high-filler twin-screw plasticization, gradient vacuum foaming sizing and intelligent closed-loop process control. We provide customized turnkey extrusion lines targeting regional raw material characteristics and product technical indicators for global composite material manufacturers, delivering systematic technical solutions for high-efficiency, low-defect WPC profile mass production.
